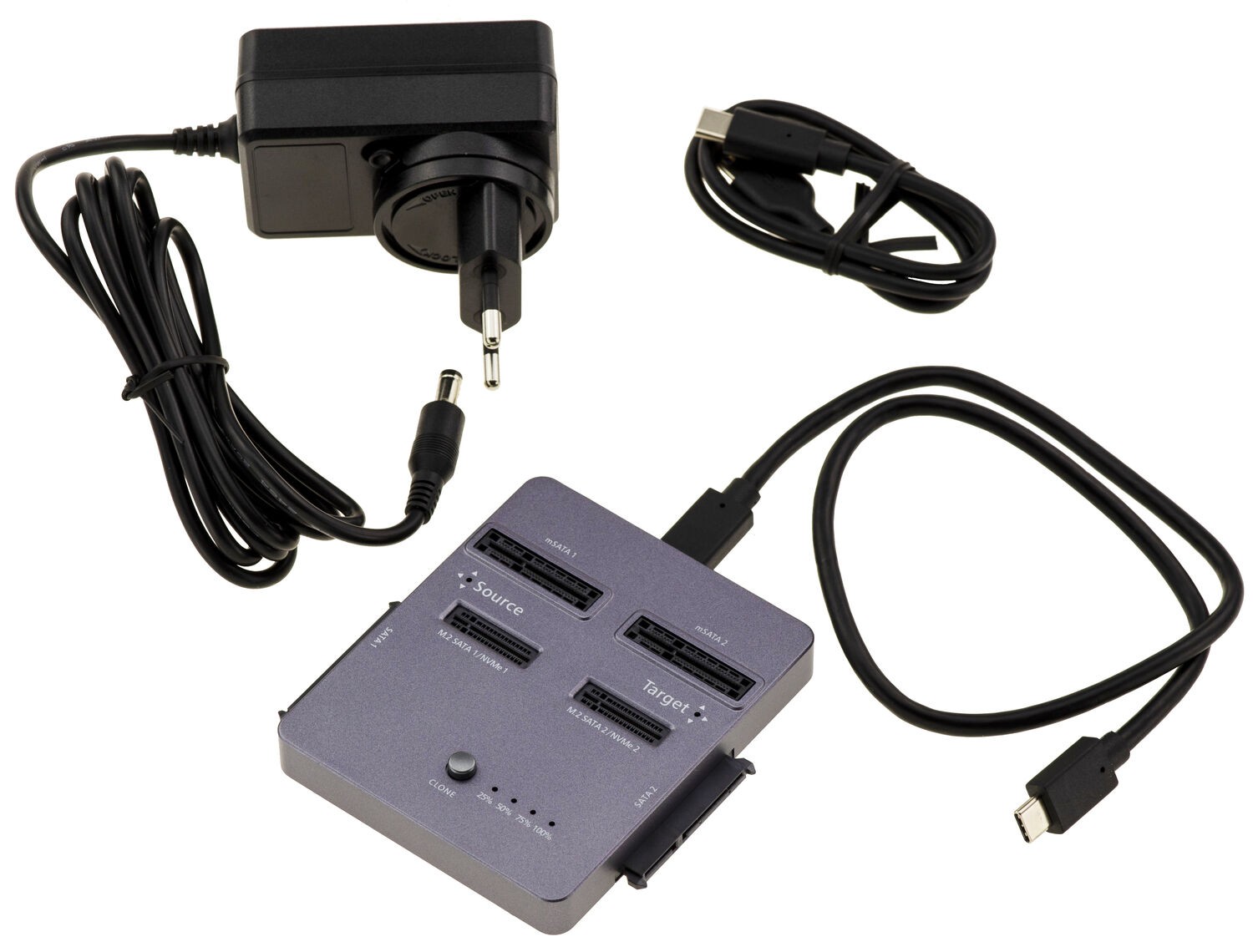

This station combines a multi-format USB read/write dock function and a standalone offline duplicator function for SATA and NVMe storage media.
In mode connected to a computer, it allows direct access to M.2 NVMe SSD, M.2 SATA SSD, mSATA SSD media as well as 2.5" and 3.5" SATA drives. The host link relies on a USB Type-C interface compliant with USB 3.2 Gen 2x2 (20Gbps).
In standalone mode, without connection to a computer, the equipment provides direct hardware cloning between two media of the same protocol, without software or system Media: M.2 NVMe PCIe Gen3/Gen4 SSD, M.2 SATA NGFF SSD, mSATA SSD, 2.5 inch SATA SSD, 2.5/3.5 inch SATA HDDs.
Supported M.2 formats 2230, 2242, 2260, 2280, 22110.
Compatible with USB 3.2 Gen 2x2 (20Gbps) and USB 3.2 Gen 2x1 (10Gbps).
Support Windows, macOS, Linux...
Technical description:
Multi-interface USB cloning station/dock for SATA and NVMe media.
Read/write via USB interface.
Standalone offline cloning.
Direct media-to-media duplication.
USB Type-C USB 3.2 Gen 2x2 host interface, 20Gbps.
Cables included: 1 x USB Type-C to Type-C, 1 x USB Type-A to Type-C.
Claimed measured performance reaches 1.69 GB/s read and 1.59 GB/s write on NVMe media, and up to 529 MB/s read and 487 MB/s write on SATA media, depending on the media used, host interface and system environment.
3 separate source/destination interfaces: 1 x NVMe and SATA compatible M.2 socket, 1 x mSATA socket, 1 x 22 pin (7+15) SATA connector.
External power supply 12V / 3A.
Aluminum chassis, passive cooling by heat dissipation of the case.
Cloning function:
Cloning is carried out offline, without connection to a computer, via an integrated hardware controller and triggering by physical button.
Supported cloning protocols:
NVMe to NVMe,
M.2 SATA to M.2 SATA,
mSATA to mSATA,
SATA to SATA,
M.2 SATA to mSATA,
mSATA to SATA,
M.2 SATA to SATA.
No protocol conversion is provided by the cloning controller (Examples not supported: NVMe to SATA, SATA to NVMe, mSATA to NVMe).
Cloning progress LED.
