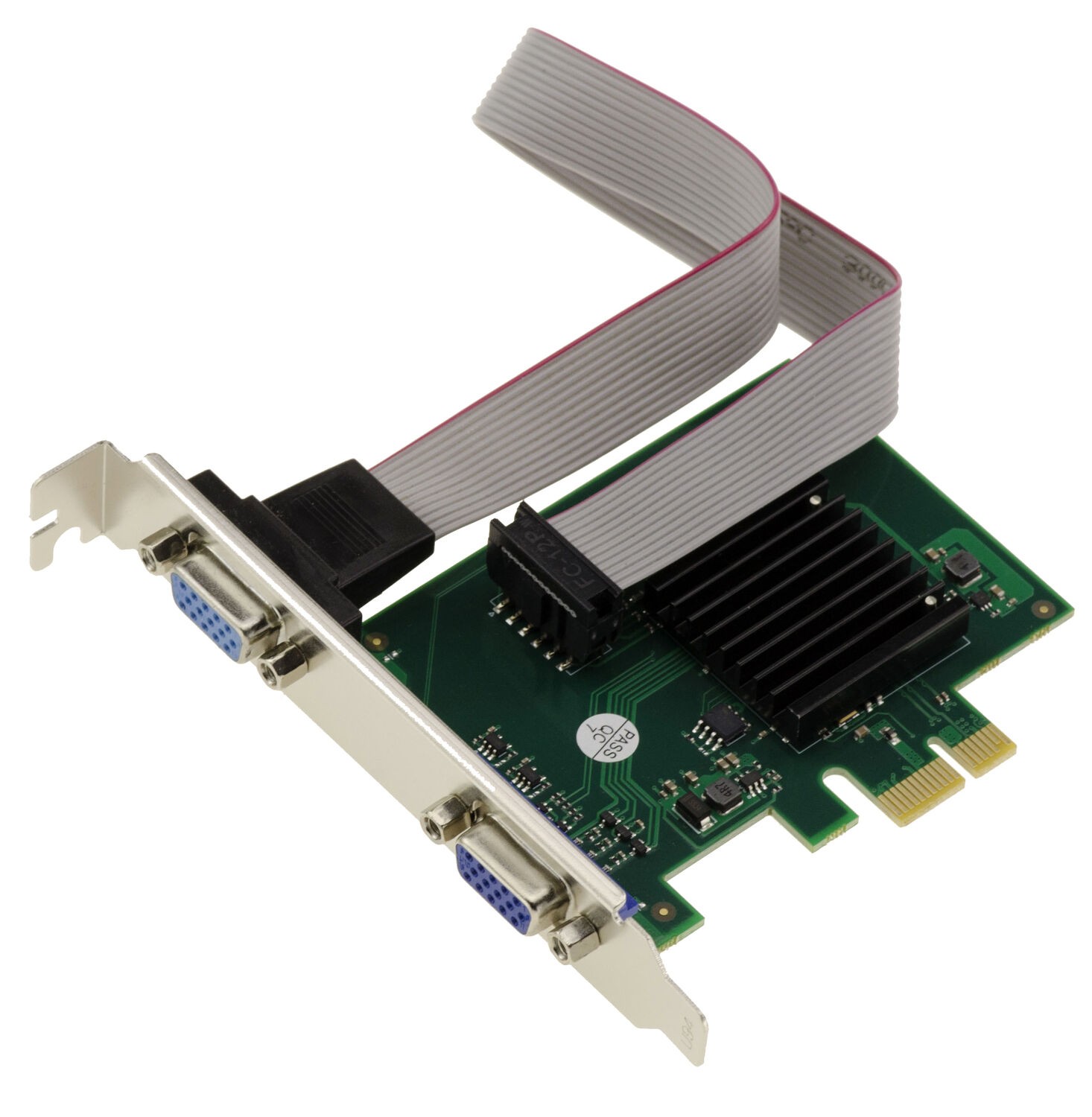

Connects to a computer's PCIe port and allows you to add two VGA screens to duplicate or extend your display on with Windows 7, 8, 8.1, 10, 11 as well as Linux (Ubuntu, Fedora, Red'at...).
Technical characteristics:
Chipset: Silicon Motion SM750.
Dual 300 MHz DAC.
Built-in 16MB DDR memory.
Display rotation possible 90°, 180° and 270°.
128-bit 2D graphics engine: ROP3, BitBLT, transparent BLT, patterned BLT, color expansion, line drawing, 16/32-bit YUV to RGB conversion.
Support for 7 display layers: 2 hardware sliders, main graph, video, alpha video, alpha, secondary graph.
Compatibility with ITU601 and ITU656 standards, V to RGB 16/32 bit conversion.
Features 2 DB15 VGA ports, maximum resolution up to 1080p or 1900x1200.
Intended use: office only (no 3D engine).
Delivered with low profile and high profile brackets.
Connects to a computer's PCIe port and allows you to add two VGA screens to duplicate or extend your display on monitors. Compatible with Windows 7, 8, 8.1, 10, 11 as well as Linux (Ubuntu, Fedora, Red'at...). Technical characteristics: Chipset: Silicon Motion SM750. Display rotation possible 90°, 180° and 270°. 128-bit 2D graphics engine: ROP3, BitBLT, transparent BLT, patterned BLT, color expansion, line drawing, 16/32-bit YUV to RGB conversion. Support for 7 display layers: 2 hardware sliders, main graph, video, alpha video, alpha, secondary graph. Compatibility with ITU601 and ITU656 standards, V to RGB 16/32 bit conversion. Features 2 DB15 VGA ports, maximum resolution up to 1080p or 1900x1200. Intended use: office only (no 3D engine). Delivered with low profile and high profile brack Recommended products Provided by Graphics Card 2X VGA 1080P mPCIe MiniPCIe Full Size - SILICON MOTION SM750 View product HDMI Graphics Card 1080P mPCIe Mini PCIe Full Size - Chip Silicon Motion SM750 View product Controller Card 4 Ports RS422 RS485 On PCIe Port CHIPSET EXAR XR17V354 View product 4 Port RS422 RS485 Controller Card On PCIe Port - EXAR XR17V354 CHIPSET View product Pcie X1 - 8 Serial Ports Rs422 Rs485 - Exar Xr17v358 Chipset - Db9 + Terminal View product PCIe Card 2 Ports RS422 RS485 - CHIPSET EXAR XR17V352 View product PCIe Network Card - 10 GB - 2 SFP+ Ports - CHIPSET 82599ES View product Pcie 8-Port COM RS232 UART Controller Card - EXAR XR17V358 Chipset View product
