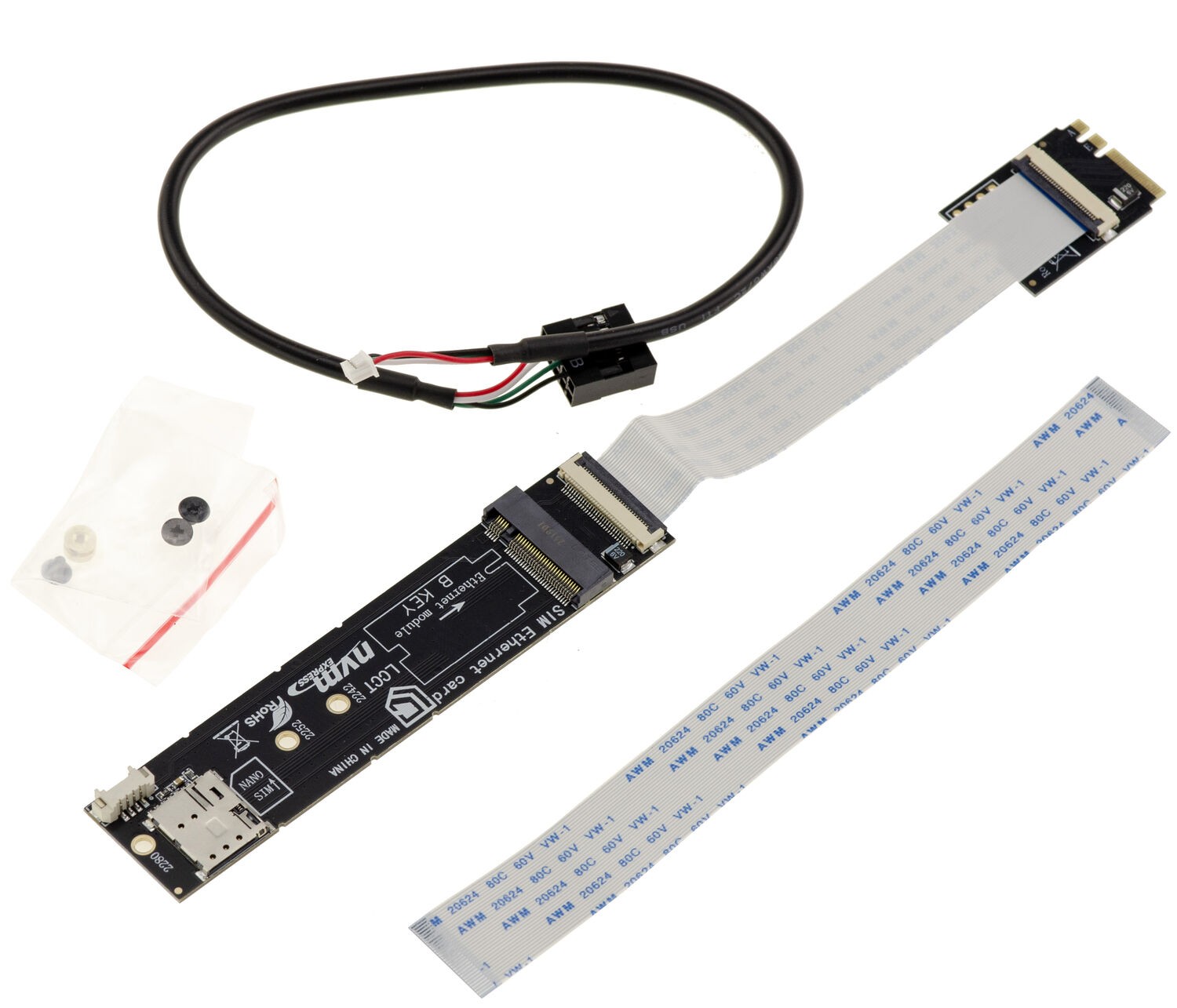

Will allow you to mount an M2 WWAN card of type "B Key" 3G 4G 5G, PCIe or USB type, on an M2 EA Key port.
Specifications:
Main support:
Slot for M2 B Key card in 2242 or 2252 format.
Nano SIM card slot.
General dimension of the support in M2 2280 format.
Optional connection to motherboard USB port (for USB type network cards).
M2 E/A Key part:
Connected to the main part by a flexible tablecloth.
Two dimensions of tablecloths provided: 10cm (mounted by default) and 15cm.
Type 2230 E/A card format.
Example of supported cards: 2G, 3G, 4G, 5G WiMAX, LTE... also supports PCIe type modules such as WIFI modules for example.
No drivers needed for this adapter, you will just need the drivers for your WWAN card.
Sold complete, with screws, ready to use.
