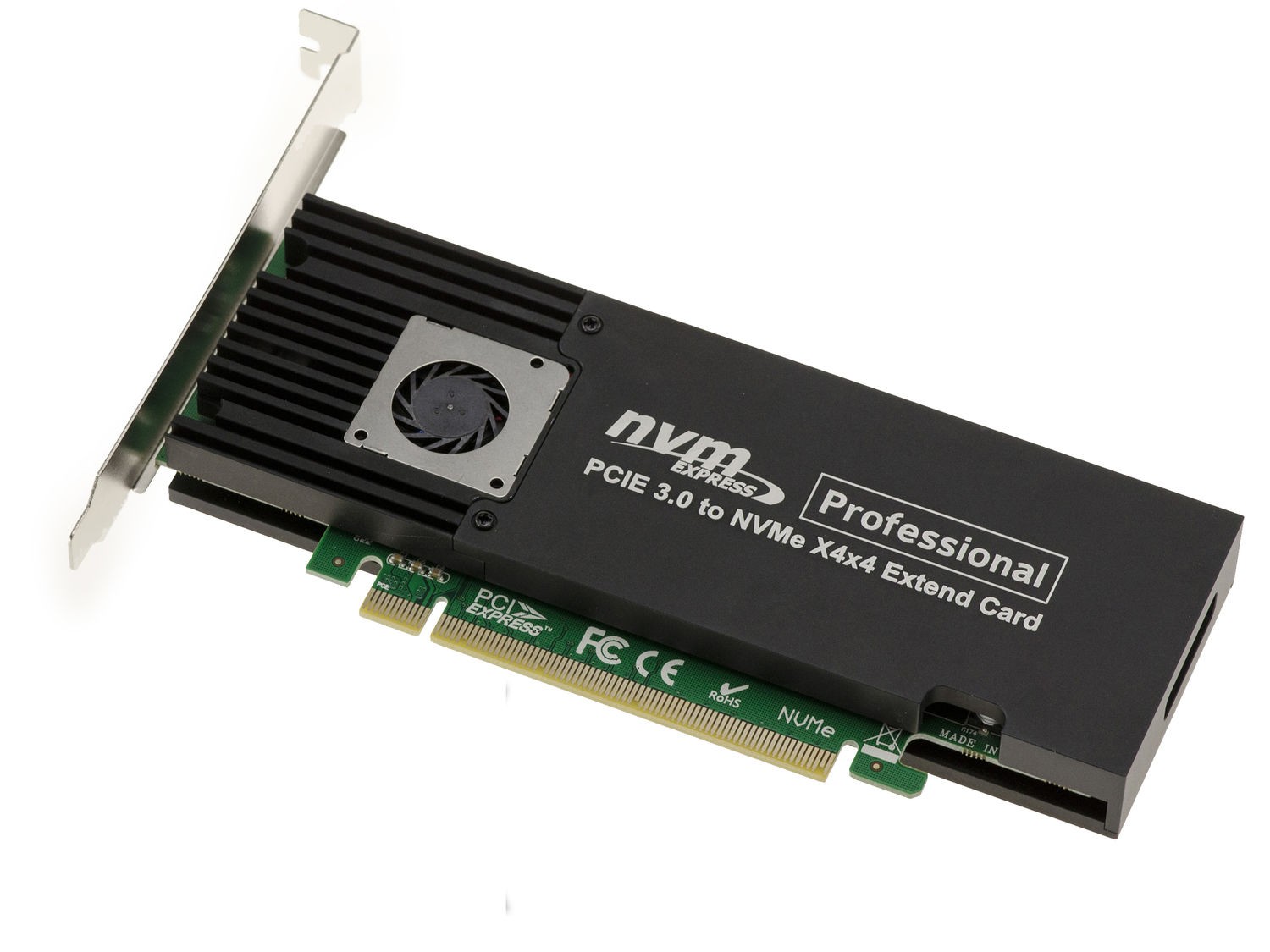

This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs.
For any M.2 "M Key" PCIe (NVMe or AHCI) type SSD only, does not support SATA type M2 SSDs.
Specifications:
For PCIe 3.0 or higher 16x port.
ASMEDIA ASM2824 CHIPSET.
Compatible with motherboards with PCIe 3.0 port or higher and supporting NVMe SSDs (UEFI Bios).
Supports an overall maximum transfer rate of 64Gb/s.
Compatible with M2 2280 SSD sizes. Screws provided.
Two NVMe drives on each side of the card.
Protection and cooling of SSDs thanks to an aluminum radiator cooled by forced ventilation (8000 rpm).
Power supply via 15 pin SATA plug.
Windows 8,8.1 and 10 (WINDOWS 10 RECOMMENDED), Linux Kernel 3.3 and newer. Supplied with LOW and HIGH Profile brackets.
This card does not support hardware RAID, but you can set up software RAID.
This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs. For any M.2 "M Key" PCIe (NVMe or AHCI) type SSD only, does not support SATA type M2 SSDs. For PCIe 3.0 or higher 16x port. ASMEDIA ASM2824 CHIPSET. Compatible with motherboards with PCIe 3.0 port or higher and supporting NVMe SSDs (UEFI Bios). Supports an overall maximum transfer rate of 64Gb/s. Compatible with M2 2280 SSD sizes. Screws provided. Two NVMe drives on each side of the card. Protection and cooling of SSDs thanks to an aluminum radiator cooled by forced ventilation (8000 rpm). Power supply via 15 pin SATA plug. Windows 8,8.1 and 10 (WINDOWS 10 RECOMMENDED), Linux Kernel 3.3 and newer. Supplied with LOW and HIGH Profile brackets. This card does not support hardware RAID, but you can set up softw Recommended products Provided by PCIe 3.0 16X Controller Card For 4 M.2 NVMe M Key (M2 NGFF). PLX PEX 8747 View product PCIe 3.0 16X Controller Card For 4 M.2 NVMe M Key SSDs With Aluminum Heatsink View product Pcie 3.0 X16 Card for 4 M.2 NVMe SSDs Chipset PLX PEX8747 - Aluminum Enclosure View product KALEA-INFORMATIQUE PCIe 3.0 x4 Controller Card for 4 M.2 NVMe SSDs M Key View product KALEA-INFORMATIQUE PCIe x16 PCIe 3.0 Card for NVMe U.2 SSD or SATA SSD View product PCIe 3.0 x8 Controller Card For 2 M.2 NVMe M Key HARWARE RAID 0 1 View product PCIe 4.0 Controller Card Adapter To Slim SAS SFF-8654 8i For NVMe M2 SSD View product KALEA-INFORMATIQUE PCIe 5.0 To 2-Port MCIO 8i Controller Card For NVMe SSD View product Related keywords m.2 ssd m2 nvme pcie wifi card nvme enclosure pcie nvme m.2 ssd adapter pcie pcie nvme nvme pcie adapter wifi card pcie pcie to m.2 nvme adapter nvme pcie pcie card m.2 pcie pcie ssd card pcie nvme adapter pcie to nvme pcie m.2 asm2824 mini pcie ssd pcie 4.0 nvme m.2 ssd nvme to pcie pcie graphics card m.2 to pcie x16 nvme m2 nvme pcie card nvme card pci nvme m4 chip Provided by
