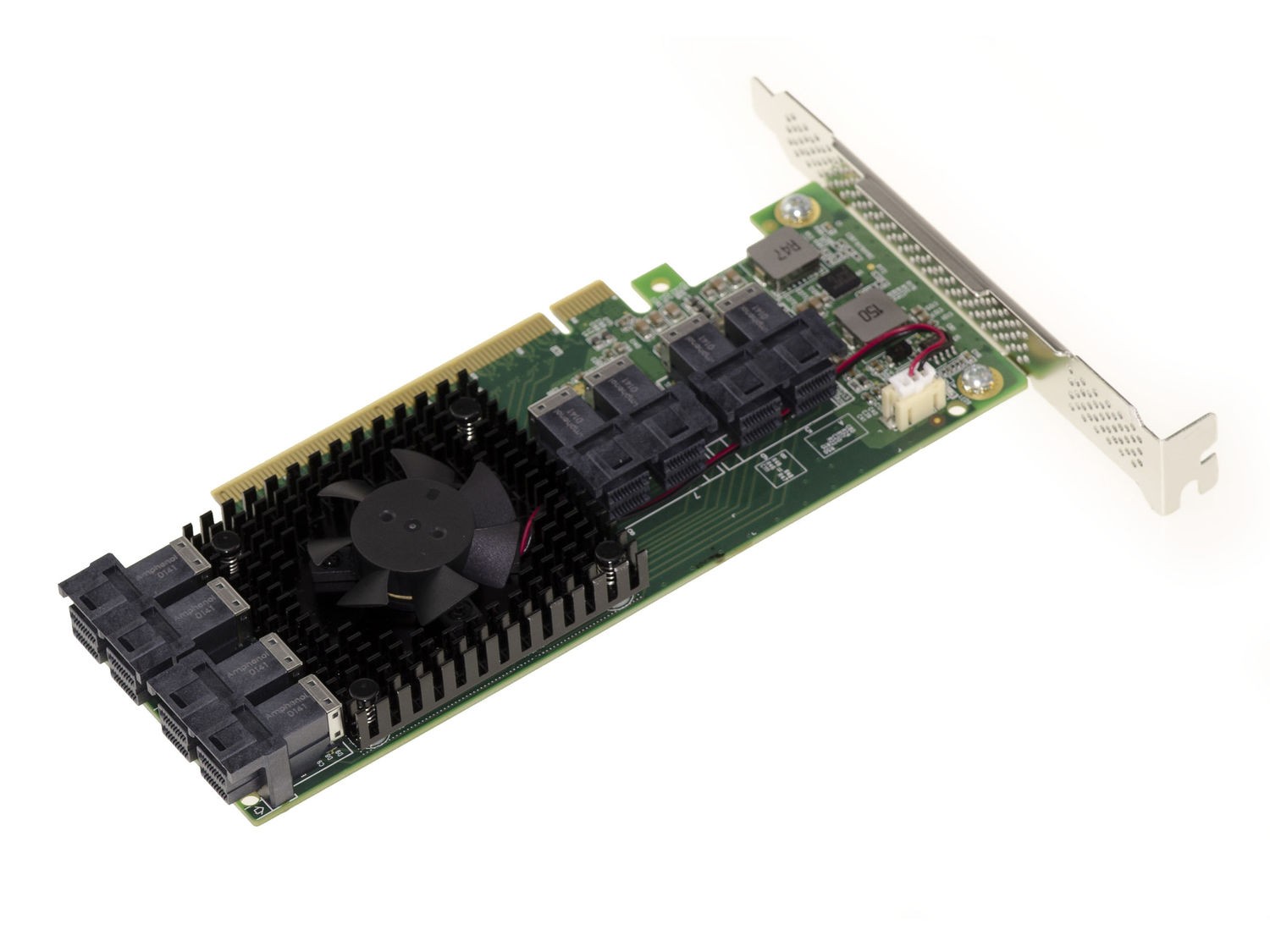

This card will allow you to control eight U.2 PCIe SSDs. It offers “multi host” switch capacity, and allows packets of up to 2048 bytes to be sent with a maximum latency of 126ns.
It does not rely on "bifurcation" mode and will therefore be supported by any motherboard, whether it has bifurcation mode or not.
For any U2 ​​PCIe NVMe type SSD. Compatible with Windows 10, Red Hat Linux, Cont0S, VMware ESXi, Ubuntu Linux.
Specifications:
PLX PEX 8749 chipset.
PCI Express 3.0 x16 type bus, bandwidth allocated to each SSD of 32G (i.e. 128Gb/s in total).
Supports either 8 U2 NVMe SSDs, or 8 PCIe 4x ports, or 4 PCIe 8x ports and 2 PCIe 16x ports.
SFF-8643 type interface.
Plug and play, does not require installation.
Forced ventilation.
Support Access Control Services.
Compliant PCI Power Management Spec, r1.2.
Operating temperatures supported 5°C to 50°C.
Dimensions 165mm*68.9mm, weight 148g.
Card supplied with Low Profile and High Profile brackets.
