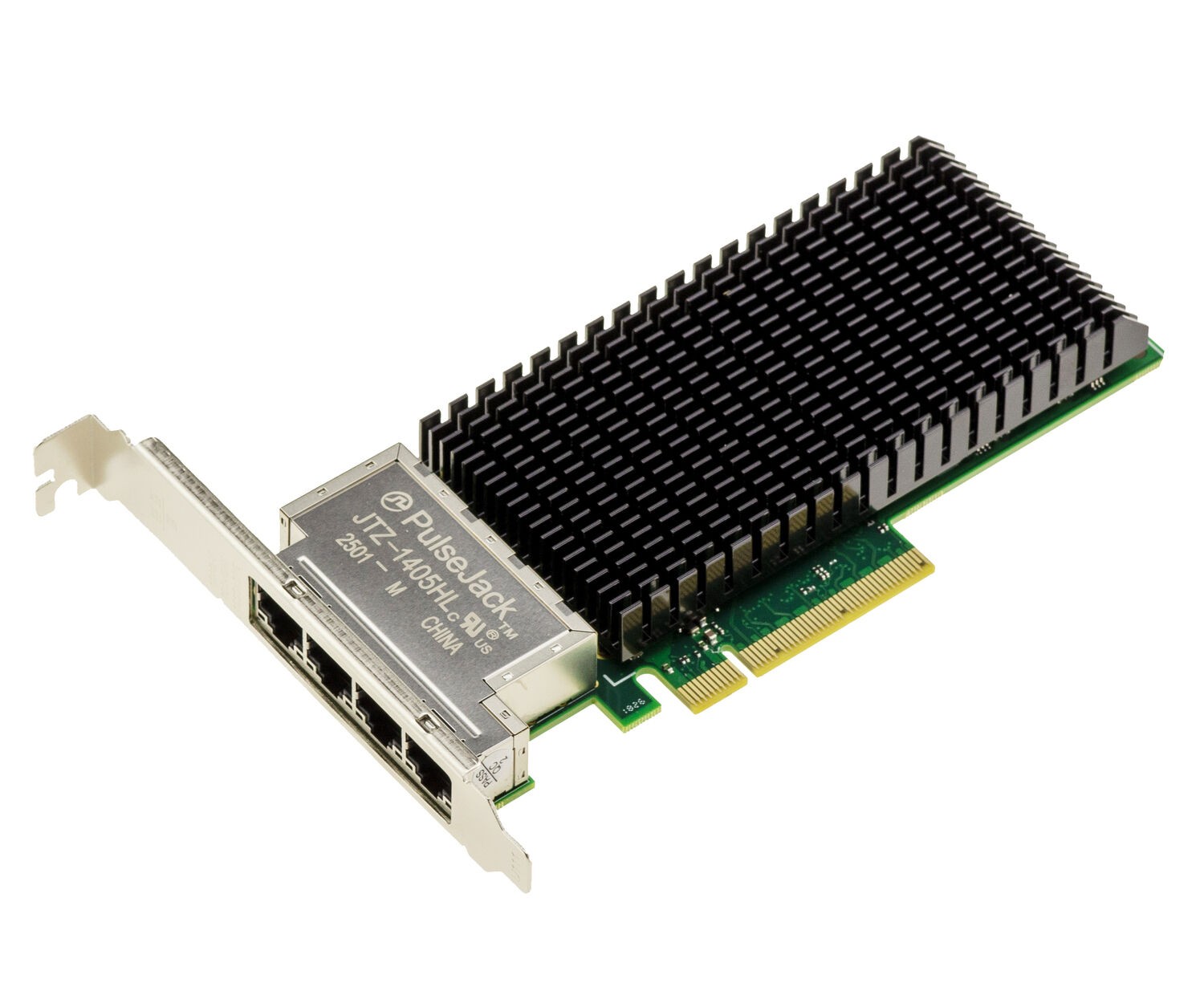

PCI Express 4.0 x4 network card is based on the latest generation Intel E610-XT4 controller.
These controllers are engraved in 7nm technology, ensuring low consumption operation (45% less than Intel X710 chipset cards, and 60% less than Intel X550 chipset cards!)
Compatibility:
For PCIe Gen 4.0 or higher port type x4, x8 or x16, backward compatible PCI Express 3.0, 2.0 and 1.0.
Compatible with Windows Server 2016, 2019, 2022 and 2025.
Windows 11/10 compatible.
Compatible Linux Kernel 6.x., Red Hat Enterprise Linux 8.x, 9.x and 10, Ubuntu 22.04 and 24.04 LTS, Debian 10, 11 and 12, CentOS 7 and 8, SUSE Linux Enterprise Server, VMware ESXi 7.0 and 8.0., FreeBSD 13.x and 14.x...
Technical description:
Intel Ethernet E610-XT4 controller engraved in 7nm technology.
PCI Express Gen 4.0 x8 (x8 and x16 port compatible).
Four RJ45 10 Gigabit Ethernet ports.
Supported speeds 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s and 100 Mb/s.
Compatible with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX Ethernet networks.
Communication distance in Cat5e, Cat6 and Cat6A cabling up to 100 meters.
Full Duplex operation on all supported speeds.
Complies with IEEE 802.3an 10GBASE-T standard.
Maximum consumption of only 9.7 W in 10G quad port operation.
Support for Jumbo Frames up to 9.5 KB.
Support Energy Efficient Ethernet (EEE) IEEE 802.3az.
RSS (Receive Side Scaling) support.
Support for IPv4 and IPv6 protocols.
Hardware Offload UDP, TCP and IP Checksum.
TSO (TCP Segmentation Offload) support.
LRO (Large Receive Offload) support.
VXLAN, GENEVE and NVGRE hardware acceleration.
iSCSI and NFS Offload support.
Intel VT-c virtualization management.
SR-IOV support.
VMDq support.
Integrated advanced QoS management.
Hardware Flow Director.
Up to 64 virtual machines per port.
Support Data Center Bridging (DCB) and IEEE 802.1Qaz ETS.
Intelligent interrupt rate control to optimize CPU usage.
LED indicators for activity, speed and network link.
Operating temperature: 0°C to 70°C.
Dimensions: 150 x 69 mm.
Low Profile bracket included.
