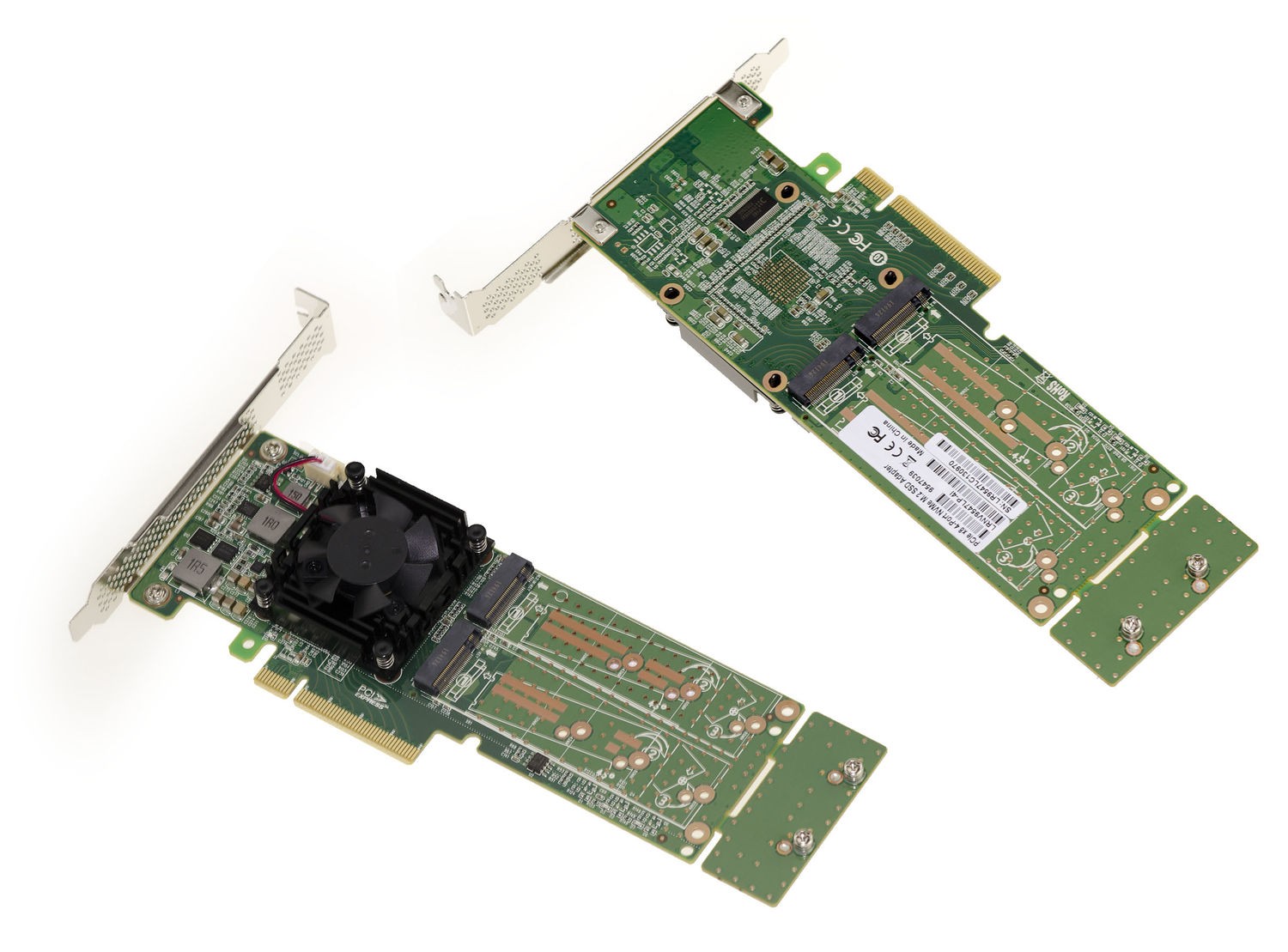

This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs.
It does not rely on "bifurcation" mode and will therefore be supported by any motherboard, whether it has bifurcation mode or not.
For any M.2 "M Key" PCIe NVMe type SSD. Compatible with Windows 10, Red Hat Linux, Cont0S, VMware ESXi, Ubuntu Linux.
Specifications:
PLX PEX 8747 chipset.
PCI Express 3.0 x16 type bus, bandwidth allocated for each pair of SSDs of 32G (or 64G in total).
Supports 4 NVMe SSDs.
M2 interface compatible with dimensions 2230, 2242, 2260, 2280 and 22110 (screws supplied). "Breakable card" to shorten it if you are not using a 110mm SSD.
Plug and play, does not require installation.
Forced ventilation.
Operating temperatures supported 5°C to 50°C.
Dimensions 69mm*205mm (or 175mm if extension removed), weight 175g.
Card supplied with Low Profile and High Profile brackets.
