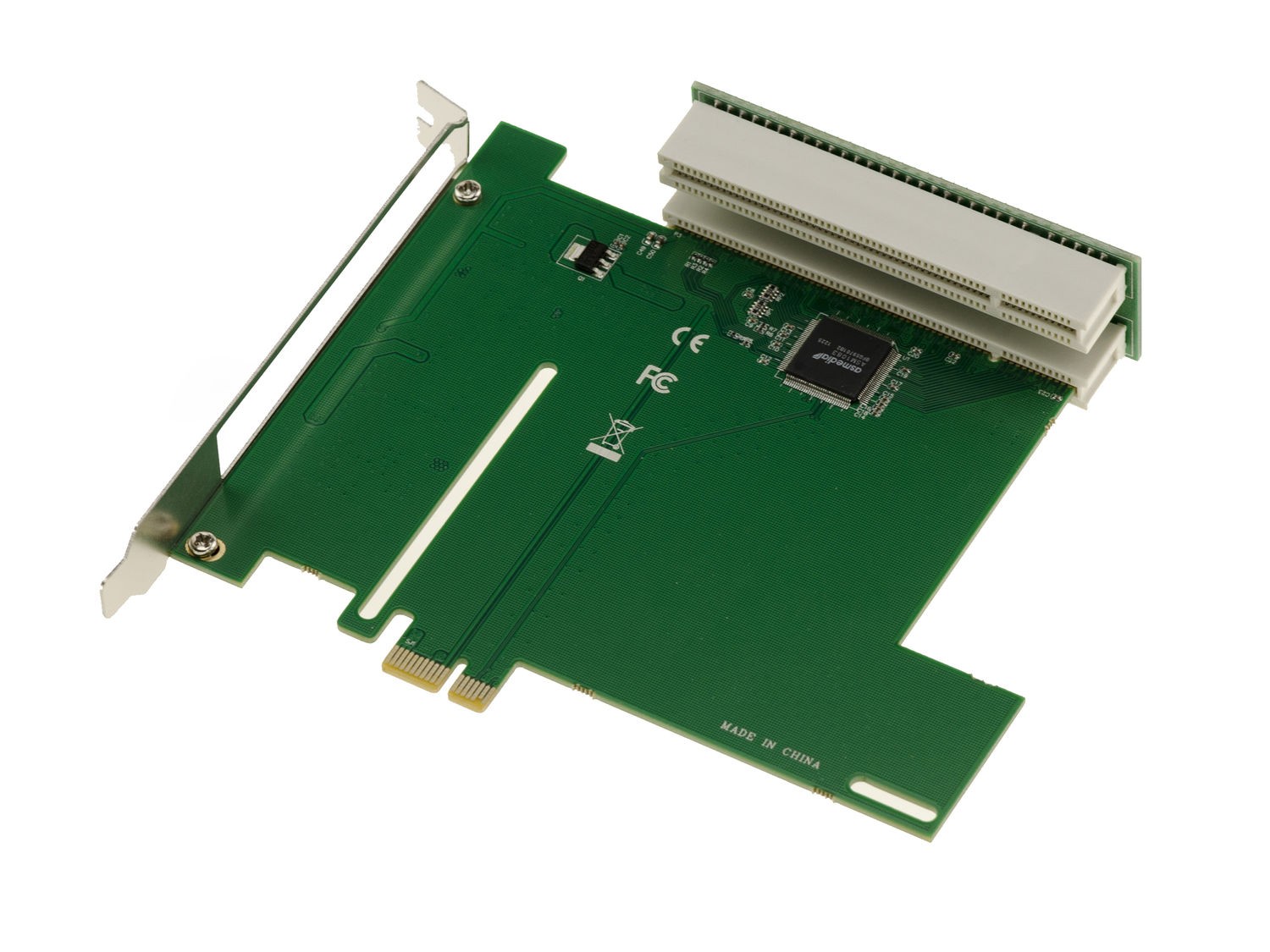

To be able to use a PCI card on a PCI Express 1x to 16x port!.
Compared to our other models, this version is very secure. On the one hand, its configuration allows the PCI card to be correctly fixed on the case and its connectors to stand out on the back of the PC, on the other hand its generously sized capacitors stabilize the power supply of the PCI card.
Specifications:
ASM1083 CHIPSET.
Compatible with PCI 2.2 buses.
For 32-bit PCI card (5V).
Recognized by all OS, no driver required for the adapter itself which is completely "passive".
As with all these PCI PCIe bridges, your motherboard must support this type of device otherwise the PCI card will not be identified.
