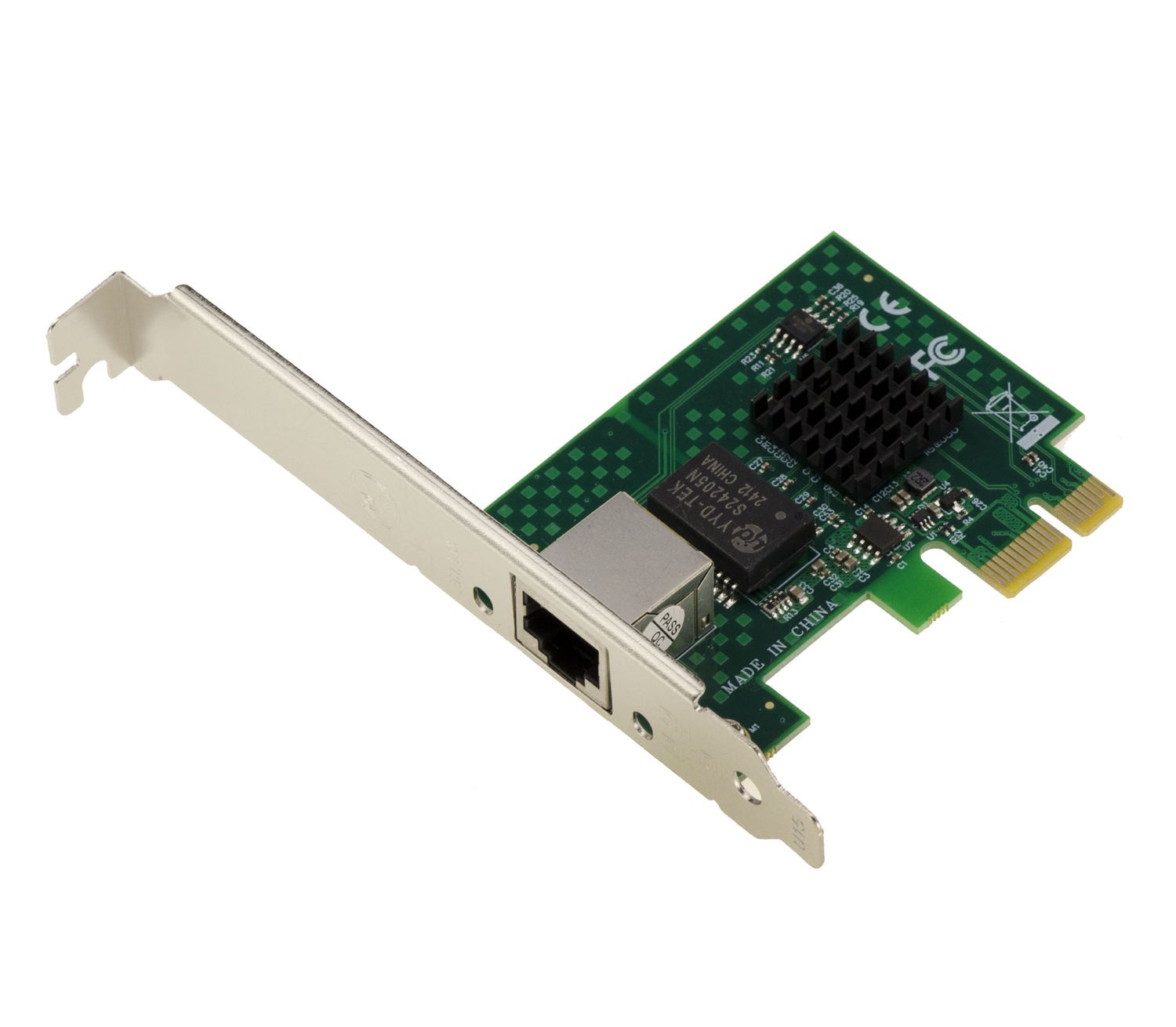

For DESKTOP PC or server on PCIe x1 port. Compatible with all MAXI 2.5 Gigabit networks. COMPATIBLE 10M 100M 1G 2.5G.
Compatibility:
Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.
Features :
INTEL I226 (SRKTU) chipset.
PCIe 3.1 x1 card, compatible with x1, x2, x4, x8 and x16 ports.
MDI Ethernet interface (RJ45 copper) standard IEEE802.3 up to 2.5 Gb/s.
Complies with MDI IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3).
Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames.
Automatic crossing detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Support for IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support.
Offloading TCP/UDP and IPv4 checksums (Rx/Tx).
Transmission Segmentation Offload (TSO) (IPv4, IPv6).
Support for packages up to 9.5 KB Jumbo Frames.
Card delivered with high and low profile brackets.
