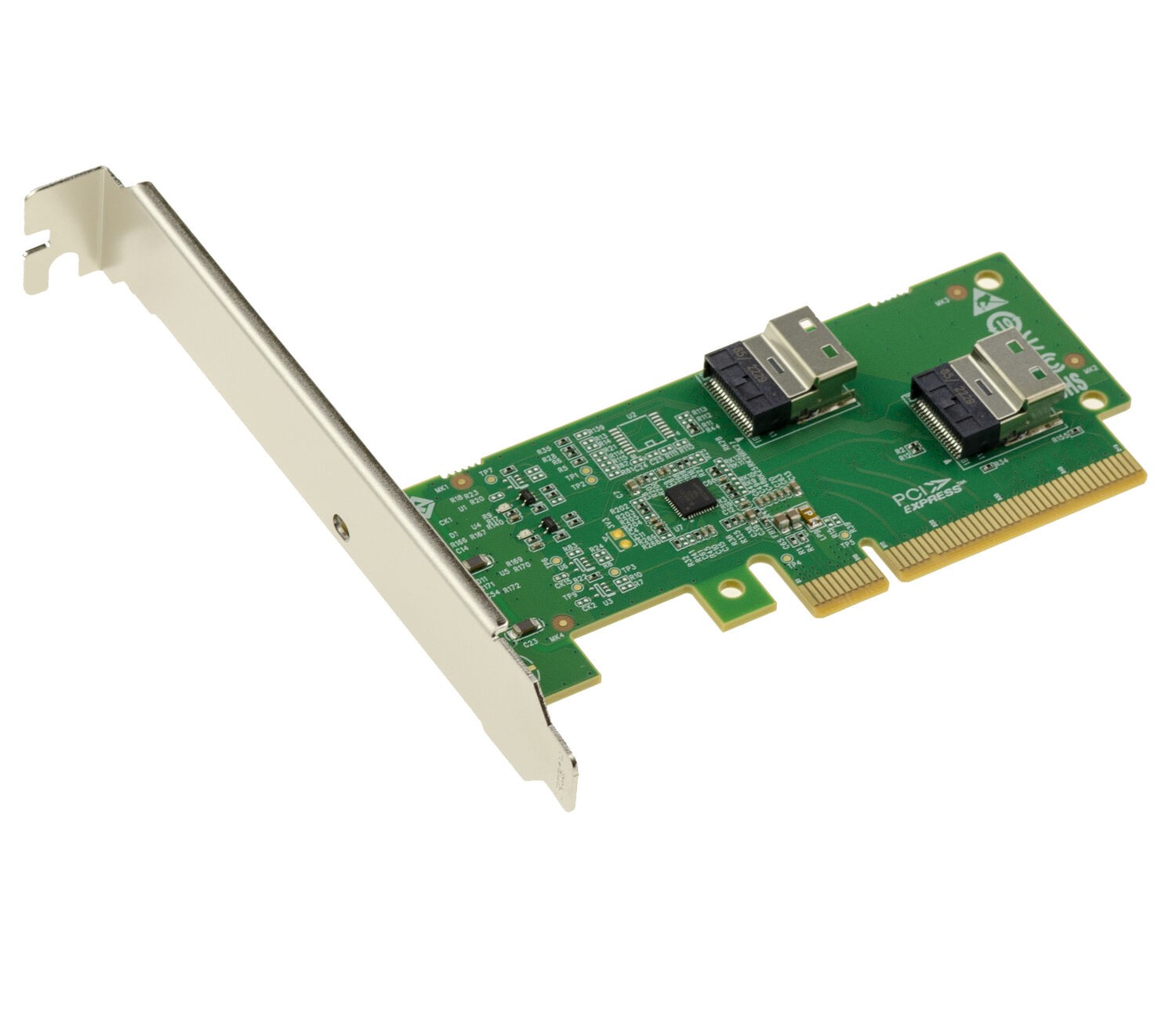

This card allows the distribution of a PCIe x8 port into two x4 ports through two independent SlimSAS SFF-8654 4i interfaces, to connect up to two NVMe SSDs or PCIe insert.
Compatibility:
PCI Express x8 port host interface for x8 or x16 port.
PCIe generation designed for PCIe 4.0 operation.
Seamless operation with major systems natively supporting NVMe PCIe devices.
Technical description:
PCIe Gen 4 x8 card.
2 internal SlimSAS SFF-8654 4i, 36-pin connectors.
Link width per PCIe x4 connector.
Maximum number of devices 2 NVMe SSDs.
Possibility of directly connecting a U2 SSD from an SFF8654-4i to SFF-8639 cable.
Allows the distribution of a PCIe x8 interface to two independent PCIe x4 links.
Direct PCIe bus link to connected NVMe devices.
Dimensions 146.5 x 67.5 mm, weight 72 g.
Operating temperature from 0°C to 70°C.
Low and high profile brackets supplied.
