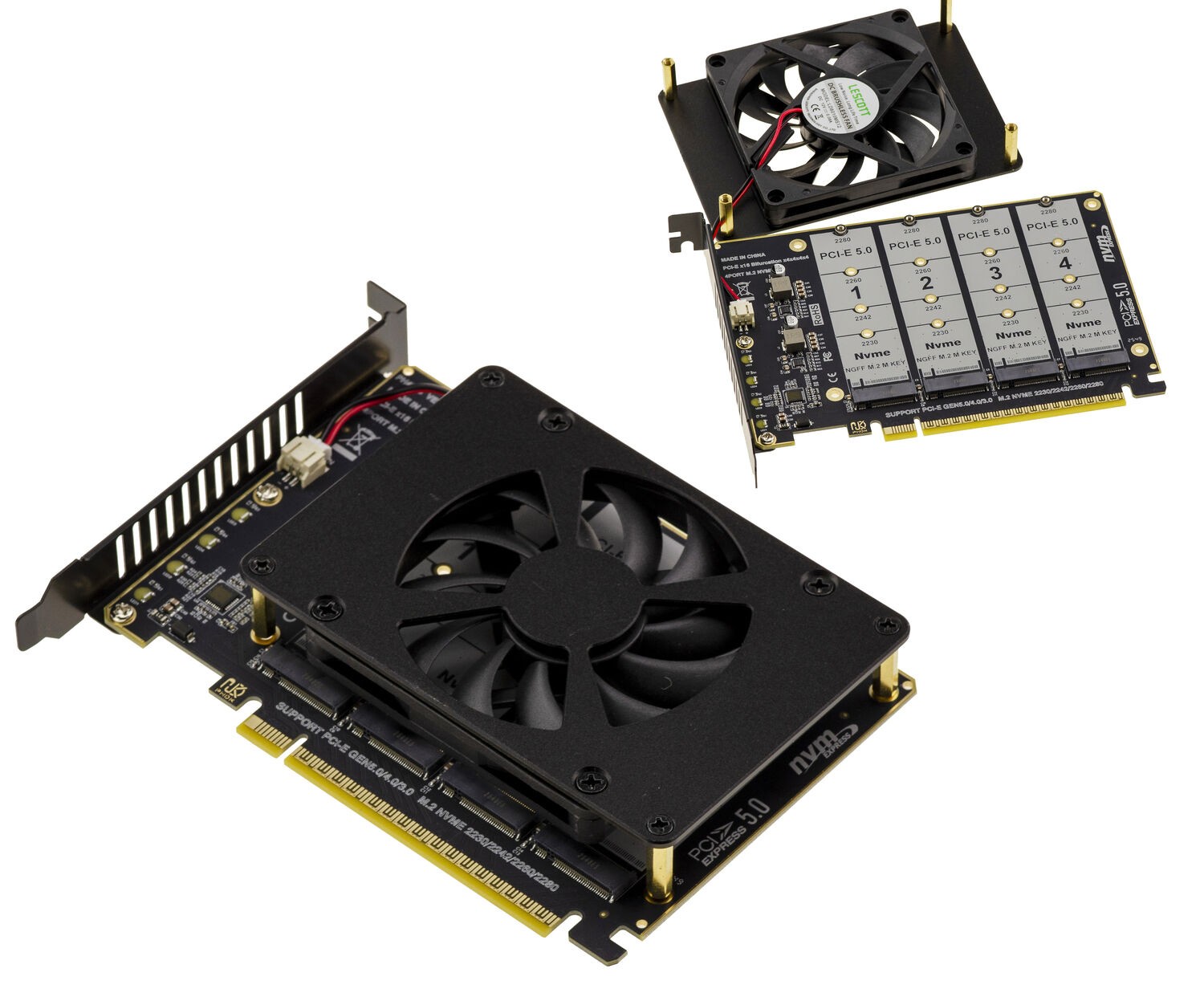

PCIe 5.0 x16 card to add up to four M.2 NVMe M-Key SSDs. This card is a consumer version suitable for small workstations. It requires support for PCIe x4/x4/x4/x4 bifurcation mode.

Compatibility:
For PCIe x16 port.
PCI Express 5.0 compatible, PCIe 4.0 and PCIe 3.0 backward compatible.
Support for M.2 M-Key NVMe SSD formats 2230, 2242, 2260 and 2280.
Requires a PCIe x4/x4/x4/x4 bifurcation compatible motherboard.
Compatible with Windows 8 and above, Linux, Mac....

Technical description:
PCIe Gen5 adapter card to 4 independent M.2 NVMe ports.
Supports up to 4 NVMe SSDs simultaneously.
Bifurcation configuration to be activated in the motherboard BIOS (x16) to 4x (x4).
Multi-channel architecture allowing full exploitation of PCIe bandwidth.
Dual power supply ensuring stable power supply to SSDs.
Integrated 80mm fan for additional cooling.
4 built-in SSD activity and detection LED indicators.
Dimensions: 14.3 x 10.2 x 1.2 cm.
Weight: 135g.


PCIe 5.0 x16 card to add up to four M.2 NVMe M-Key SSDs. This card is a consumer version suitable for small workstations. It requires support for PCIe x4/x4/x4/x4 bifurcation mode. PCI Express 5.0 compatible, PCIe 4.0 and PCIe 3.0 backward compatible. Support for M.2 M-Key NVMe SSD formats 2230, 2242, 2260 and 2280. Requires a PCIe x4/x4/x4/x4 bifurcation compatible motherboard. Compatible with Windows 8 and above, Linux, Mac.... PCIe Gen5 adapter card to 4 independent M.2 NVMe ports. Bifurcation configuration to be activated in the motherboard BIOS (x16) to 4x (x4). Multi-channel architecture allowing full exploitation of PCIe bandwidth. Dual power supply ensuring stable power supply to SSDs. Integrated 80mm fan for additional cooling. 4 built-in SSD activity and detection LED indicators.
