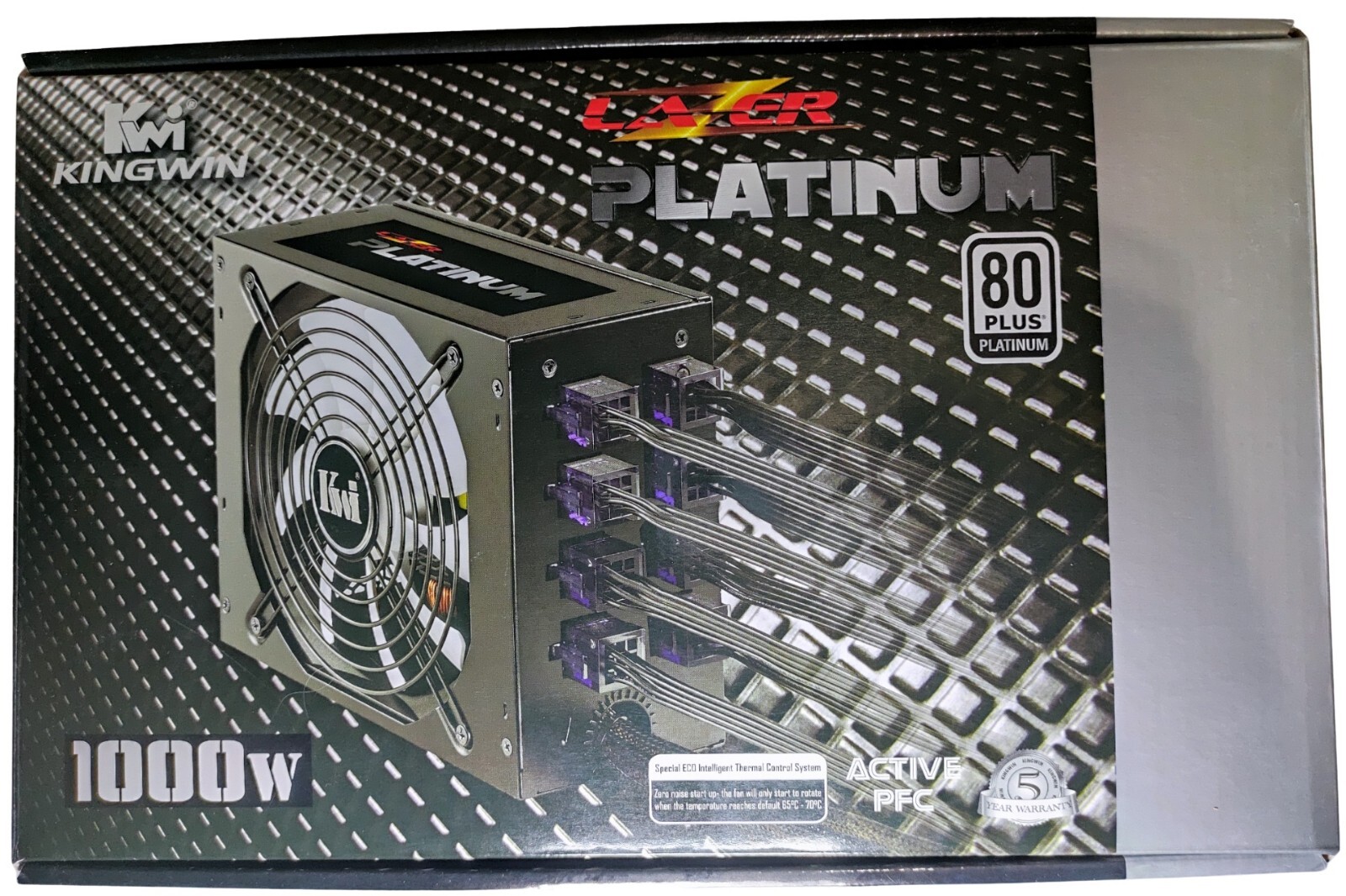

USED GREAT CONDITIONKINGWIN LAZER 80 PLUS PLATINUM 1000W MODULAR ATX POWER SUPPLYModel: LZP-1000

It was used for a few months many years back, then placed in storage. I am moving now and clearing out. Tested working.

80 PLUS PLATINUM efficiency rating! This is the highest rating!

This item have really good reviews back in the day.

Contains these to PSU:
ATX 24 PIN
2 of 8PIN CPU connector
2 of 6+2PIN PCI-E Graphics Power connector
Modular Cables:
3 of 4 Port SATA connectors
Total 12 SATA connectors
1 of 3 port Molex and 1 port Floppy connector
1 of 2 port Molex and 1 port Floppy connector
2 of 6+2PIN PCI-E Graphics Power connector

OTHER ACCESSORIES
Cable Bag
4 mounting screws
16AWG AC wall cable, good for 13 amps. 120V x 13amps = 1560 Watts. So it is fully capable of handling this 1000W power supply.

OVERVIEWThe third entry of Lazer Platinum Series is the LZP-1000. LZP-1000 will deliver more power quietly and smoothly for your ultimate gaming rig. It is the top of the line Platinum Power Supply set for others to follow. With 80 PLUS PLATINUM certification, it has achieved an efficiency rate of up to 92% under 50% load. Kingwin LZP-1000 also has a built in exclusive ECO Intelligent Thermal Control System, a zero noise operation for the power supply when first turned on. The fan will not rotate until the temperature reaches a default temperature. If you want absolute efficiency with supreme performance and quietness, the Kingwin LZP-1000 is a terrific option.

• 80 PLUS PLATINUM CERTIFIEDThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
• 1000W CONTINUOUS POWER WITH SINGLE STRONG +12V RAILCompliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin LZP-1000 is capable of delivering 1000W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 83A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
• CRYSTAL CUBE MODULAR PLUG W/ POWER CONNECTOR CABLE MANAGEMENT SYSTEMThe crystal cube modular connector cable design allows use of only the cables you need and easier cable routing inside the case, resulting in improved airflow and reduced system clutter.
• SUPPORTS CROSSFIREX/SLI5x 6+2 Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
• 140MM FAN WITH UNIQUE ECO INTELLIGENT THERMAL CONTROL SYSTEMIntelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise. Moreover, with Kingwin’s special ECO Intelligent Thermal Control System, the fan does not rotate until the temperature reaches a critical point; the RPM of the fan will self-adjust according to the temperature maintaining a linear relationship. And when the temperature descends to a critical point, the fan will stop rotating. This can significantly increase the life span of the fan and power efficiency by reducing unnecessary rotation and consumption.

SPECIFICATIONS Model Brand KINGWIN Model LZP-1000 Details Type ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Maximum Power 1000W Fans 140 mm Fan PFC Active Main Connector 20+4Pin +12V Rails Single PCI-Express Connector 4 x 6+2-Pin SATA Power Connector 12 SLI SLI Ready CrossFire CrossFire Ready Modular Modular Efficiency 50% Load (92% Efficiency), 20% Load (90% Efficiency), 100% Load (89% Efficiency) Energy-Efficient 80 PLUS PLATINUM Certified Over Voltage Protection Yes Input Voltage 115 - 240 V Input Frequency Range 50/60 Hz Input Current 10A Output +3.3V@20A, +5V@20A, +12V@83A, [email protected], [email protected] Approvals cTÜVus/TÜV/CB/CE/FCC/CCC/C-Tick/BSMI Dimensions 6.69" x 5.91" x 3.39" Output +3.3V Max. Current 20A +5V Max. Current 20A -12V Max. Current 0.5A +5VSB Max. Current 2.5A Protection Over Voltage Protection Yes Short Circuit Protection Yes Over Power Protection Yes Features Features Support Intel Core i7-980X /Core i7 /Core i5 /Core 2 Quad/Core 2 Duo & AMD Phenom II X6 /Phenom II X4 /Phenom II X3 /Athlon 64 X2 High Performance CPU

Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification

Crystal Cube Modular Plug w/ unique Power Connector Cable Management System (6 connectors for LZP-550/750, 8 connectors for LZP-850/1000/1200/1300)

Hybrid Dual Voltage Automatic Switch System (unique)

Superior Vertical Double Layer Main Transformer (unique)

More than 2,000 Times ON/OFF Test

80 PLUS Platinum High Efficiency Power Supply Certified

Full Range Design from 115V ~ 250V (Active PFC)

50% Load (92% Efficiency),20% Load (90% Efficiency), 100% Load (89% Efficiency)

PCI-E (6+2) Pin Connector Satisfy High-End Graphic Card Requirement

Over Power/Under Power/Over Voltage/Short Circuit Protections

Stable + 12V Current

140MM Fan

Intelligent Auto Fan Speed Control

Compatible with Crossfire/SLI

Two Way Switch Thermal Control System (please refer to manual for detail description)

ECO Intelligent Thermal Control System (unique) Feature Features Support Intel Core i7-980X /Core i7 /Core i5 /Core 2 Quad/Core 2 Duo & AMD Phenom II X6 /Phenom II X4 /Phenom II X3 /Athlon 64 X2 High Performance CPU

Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification

Crystal Cube Modular Plug w/ Patented Power Connector Cable Management System(6 connectors for LZP-550/750, 8 connectors for LZP-850/1000/1200/1300)

Hybrid Dual Voltage Automatic Switch System (Patent)

Superior Vertical Double Layer Main Transformer (Patent)

More than 2,000 Times ON/OFF Test

80 PLUS Platinum High Efficiency Power Supply Certified

Full Range Design from 115V ~ 250V (Active PFC)

50% Load (92% Efficiency),20% Load (90% Efficiency), 100% Load (89% Efficiency)

PCI-E 6Pin & 8(6+2) Pin Connector Satisfy High-End Graphic Card Requirement

Over Power/Under Power/Over Voltage/Short Circuit Protections

Stable + 12V Current

140MM Fan

Intelligent Auto Fan Speed Control

Compatible with Crossfire/SLI

Two Way Switch Thermal Control System (please refer to manual for detail description)

ECO Intelligent Thermal Control System (Patent) (see diagram) Dimensions & Weight Dimensions 6.69" x 5.9" x 3.39" Weight 5.5 - 6.5 lbs.
