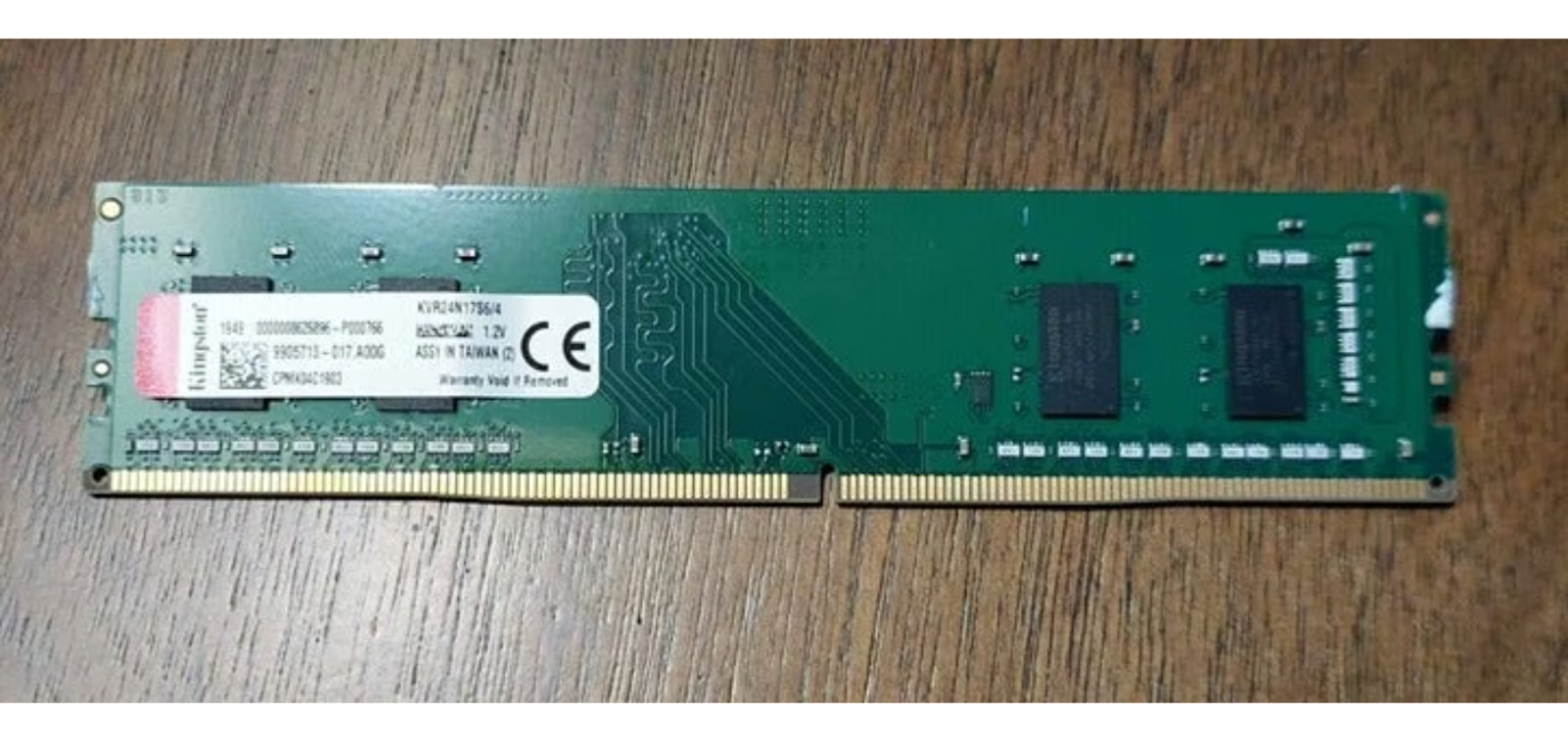

Kingston Valueram KVR24N17S6/4 DDR4-2400 4GB/512Mx64 CL17 4GB RAM MemoryFREE SHIPPING !! WILL SHIP INTERNATOPNALLYUSED - IN GREAT CONDITION, 100% TESTED AND WORKING, PASSED MEMTEST86+ , HAS SILICON ON THE RAMKVR24N17S6/44GB 1Rx16 512M x 64-Bit PC4-2400CL17 288-Pin DIMM
This document describes ValueRAM's KVR24N17S6/4 is a 512Mx 64-bit (4GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM),1Rx16, memory module, based on four 512M x 16-bit FBGAcomponents. The SPD is programmed to JEDEC standardlatency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pinDIMM uses gold contact fingers. The electrical and mechanicalspecifications are as follows:• Power Supply: VDD = 1.2V Typical• VDDQ = 1.2V Typical• VPP = 2.5V Typical• VDDSPD = 2.2V to 3.6V• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals• Low-power auto self refresh (LPASR)• Data bus inversion (DBI) for data bus• On-die VREFDQ generation and calibration• Single-rank• On-board I2 serial presence-detect (SPD) EEPROM• 8 internal banks; 2 groups of 4 banks each• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)• Selectable BC4 or BL8 on-the-fly (OTF)• Fly-by topology• Terminated control command and address bus• PCB: Height 1.23” (31.25mm)• RoHS Compliant and Halogen-FreeCL(IDD)Row Cycle Time (tRCmin)Refresh to Active/RefreshCommand Time (tRFCmin)Row Active Time (tRASmin)Maximum Operating PowerUL RatingOperating TemperatureStorage Temperature17 W*94 V - 00o C to +85o C-55o C to +100o C
