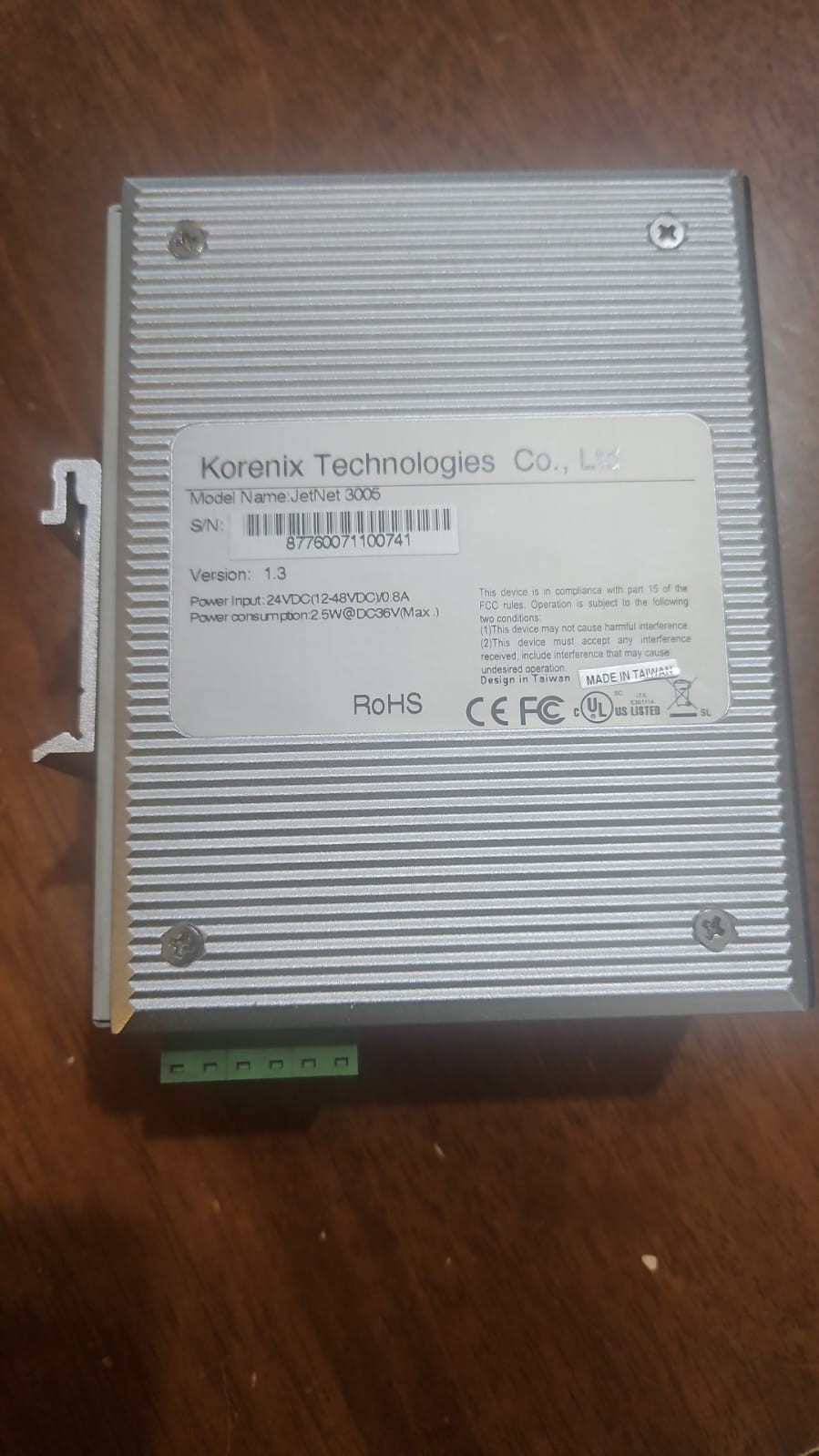

Korenix JetNet 3005 Industrial 5-Port Unmanaged Ethernet Switch DIN Rail 10/100 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
A rugged, entry-level industrial Ethernet switch designed for harsh factory floor environments, offering reliable 10/100 Mbps connectivity with built-in power redundancy.
Key Specifications:
Ports: 5 x 10/100TX RJ45, redundant Fast Ethernet switch
Switch Fabric: 3.2Gbps
Isolation Protection: 1.5KV Hi-Pot
Power Input: Redundant DC 12–48V, dual terminal block inputs
Power Consumption: 2.8W
Housing: Aluminum case, IP-31 grade protection
Operating Temperature: –20°C to +70°C (hazardous environment rated)
Dimensions (W x H x D): 54mm x 135mm x 105mm
Features reverse polarity protection and automatic failover between PWR1 and PWR2 power sources
All ports support auto-MDI/MDI-X function
Mounting: DIN rail or wall mount
Type: Unmanaged (plug-and-play, no configuration required)
