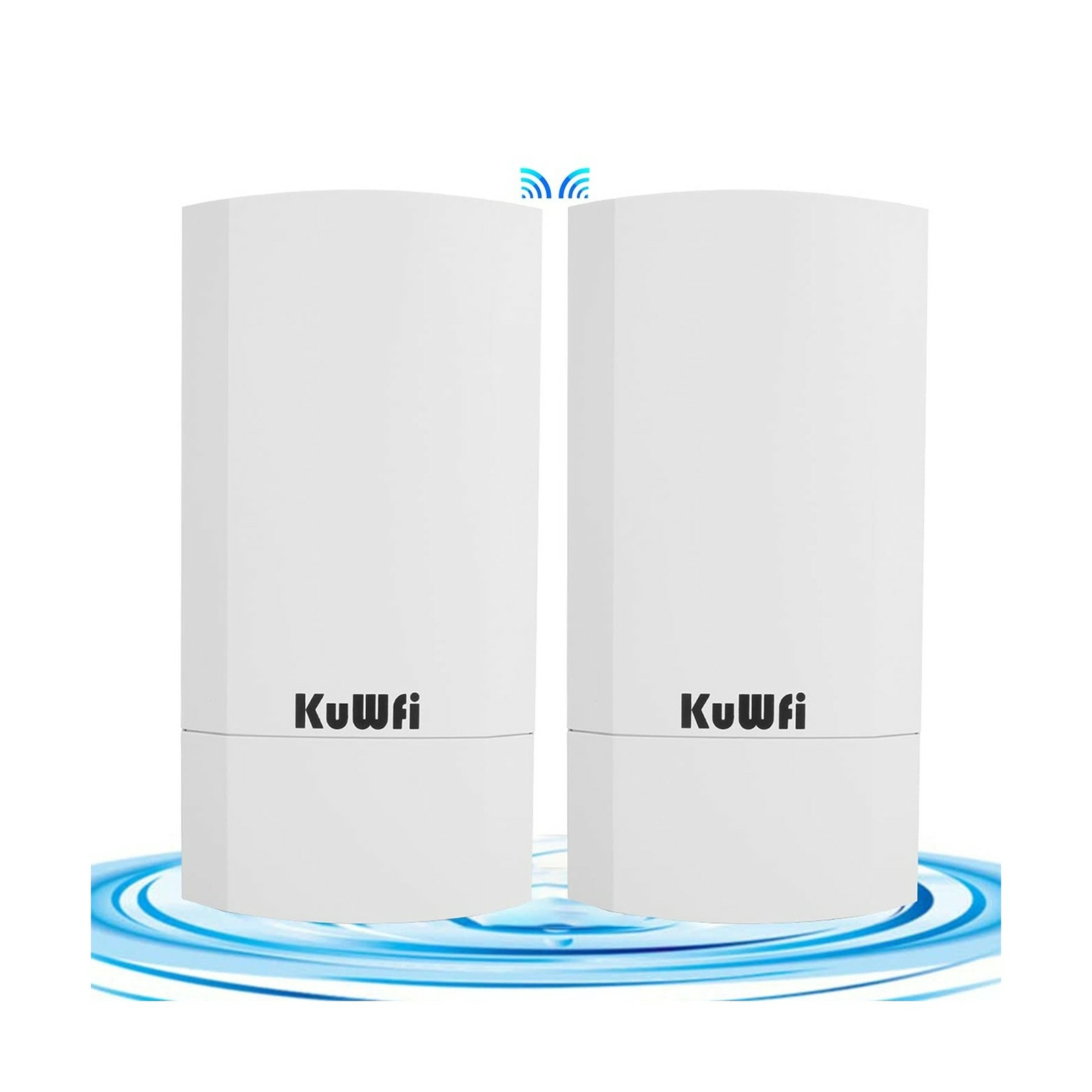

Brand New KuWFi 2-Pack 300Mbps Wireless Outdoor CPE Kit Point-to-Point Wireless Access Point 2.4G WiFi Bridge Supports 1KM Transmission Distance Solution for PTP/PTMP (Pre-Program)
Manufacturer model: CPE120

• What CPE120 isKuWFi CPE120 is an 300Mbps Outdoor Wireless WiFi Bridge support 1KM Long Range WiFi Extender with LED display to configure the PT/PTMP connection, AP + Bridge operation mode, more stable Support AP and bridge operation mode, simple to built the PTP/PTMP connections, meet with multiple Wi-Fi transmission scheme demands. Outdoor Wireless CPE Bridge Waterproof, dust proof, lighting protection. Operating Temperature: -30C-55C Storage Temp: -40C-70C

• Multiple operation mode,suit for different network & environment Point to Point/Multi-Point Connection (1-4) for Elevator Monitor/surveillance networks: Connect an IP Surveillance Camera to CPE120s secondary port and utilize its long-range connectivity to send surveillance video back through the wireless network for extended surveillance coverage. Tethering a series of IP Camera to the CPE120 give you 'eyes on' places you might not otherwise see. Easy to set CPE with IP cameras & networks DVR

• Point to Point Connection for Wireless Coverage Multi-Mode wireless wifi bridge with ethernet port and LED display: Support Wireless AP, Repeater operation mode; Support SSID broadcasting, Multi SSID up to 4; Support DHCP server; WiFi coverage before 2 houses with 1KM distance

• Tips on product how to use Its LED Display can show operation mode/channel/signal strength, its H/C switch ctrl the Master/Slave units, no need to access into GUI, press reset 1s will automatic paired; avoid the complex setup program. It transmits via wireless WiFi, reducing the trouble of wiring cable. If it is passing the wrong gateway and DNS information. You can try to put a manual IP address with Gateway address from the original modem along with your choice of DNS

• Customer ServiceFor 30 days after the date of purchase, return your undamaged KuWFi product and receive a full refund for ANY reason.12-month warranty for quality-related issues For 12 months after the date of purchase we take care of all quality-related issues with a REPLACEMENT OR FULL REFUND

Description
Product Description

KuWFi CPE120 is an 2.4G 300Mbps outdoor CPE WiFi Bridge with PoE power.

It work in pairs for point to point connection,make more than 16PCS IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks

• 802.11n Wi-Fi and MIMO technology
• FLASH * DDR2: FLASH 8MB * DDR2 64MB
• With function of build in firewall, IP filter, URL filter and MAC filter
• Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
• Support 128bit security

Package List

• CPE120- 2pcs
• POE Power Adapter (24V0.5A) - 2pcs
• Quick Start Guide - 1pcs
• Ethernet Cable (1 meter) - 2pcs
• Plastic Hoop - 4pcs

The wireless transmission speed between 2 bridges max is 300Mbps. The highest wire network speed that can be achieved max is 100Mbps. Can not provide up to 300Mbps wired network speed, because the LAN port of the wireless bridge is a 100M port.

• Point to Point WiFi Coverage
• Point to Point Connection for Elevator Monitor
• Point to Multi-Point Connection for Monitoring
• Multi-Point to Multi-Point Connection for Monitoring

Set the IP Address

• Before logging in to the management page
• Please set the IP address to (192.168.188.X)

Login WebUI

• WebUI: 192.168.188.253(H); 192.168.188.100(C)
• Default password: admin

LED Display

• LED Display: Show unit's name(H/C)/channel/signal strength, No need to access into GUI, avoid the complex setup program
• Note that only when P- is displayed, the 2 units will communicate with each other

Read more

Power over Ethernet

• It has integrated passive Power over Ethernet (PoE)
• For easy installation and lower cost
• So it can be installed in areas where power outlets are not readily available
• Eliminating the mess of altering existing network infrastructure

Extreme Distances Even in Extreme Weather

• Wireless wifi Bridge Waterproof & dust proof & lighting protection
• Operating Temperature: -30℃-55℃
• Storage Temp: -40℃-70℃

Long Range Wi-Fi Transmission

• CPE120 Outdoor wireless WiFi bridge with 12dBi high gain antenna
• The WiFi transmission distance under barrier-free conditions is max 1KM

Read more

One Key Bridge

CPE120 ethernet bridge with one-key bridge configure steps, simple to complete the entire system configuration, supply more efficient service for your networking

Work Mode

• Support Wireless AP, Repeater operation mode
• Support SSID broadcasting, Multi SSID up to 4
• Support DHCP server

Support Watchdog

When the Wireless Outdoor CPE Kit communication fails, the corresponding unit will automatically detect and restart, restore network communication by itself

Read more

NOTE: If The KuWFi is passing the wrong gateway and DNS information.You can try to put a manual IP address with Gateway address from the original modem along with your choice of DNS and it should work

KuWFi Wireless Bridge CPE120[CPE70R] KuWFi Wireless Bridge CPE200[CPE80R] KuWFi Wireless Bridge SY205 KuWFi Wireless Bridge SY200 Wireless transmission rate 300Mbps 900Mbps 300Mbps 300Mbps Ethernet port transmission rate 10/100Mbps 10/100Mbps 10/100Mbps 10/100Mbps Transmission distance 1KM 2-3KM 1-2KM 1KM WiFi frequency 2.4GHz 5.8GHz 2.4GHz 2.4GHz Power supply PoE PoE PoE/DC PoE/DC Work mode Bridge AP/ Bridge Client(repeater) Bridge AP/ Bridge Client(repeater) Wireless AP/Gateway/WISP/WDS Bridge AP/ Bridge Client(repeater) PTP/PTMP ✓ ✓ ✓ ✓ Outdoor/Waterproof ✓ ✓ ✓ ✓

•
