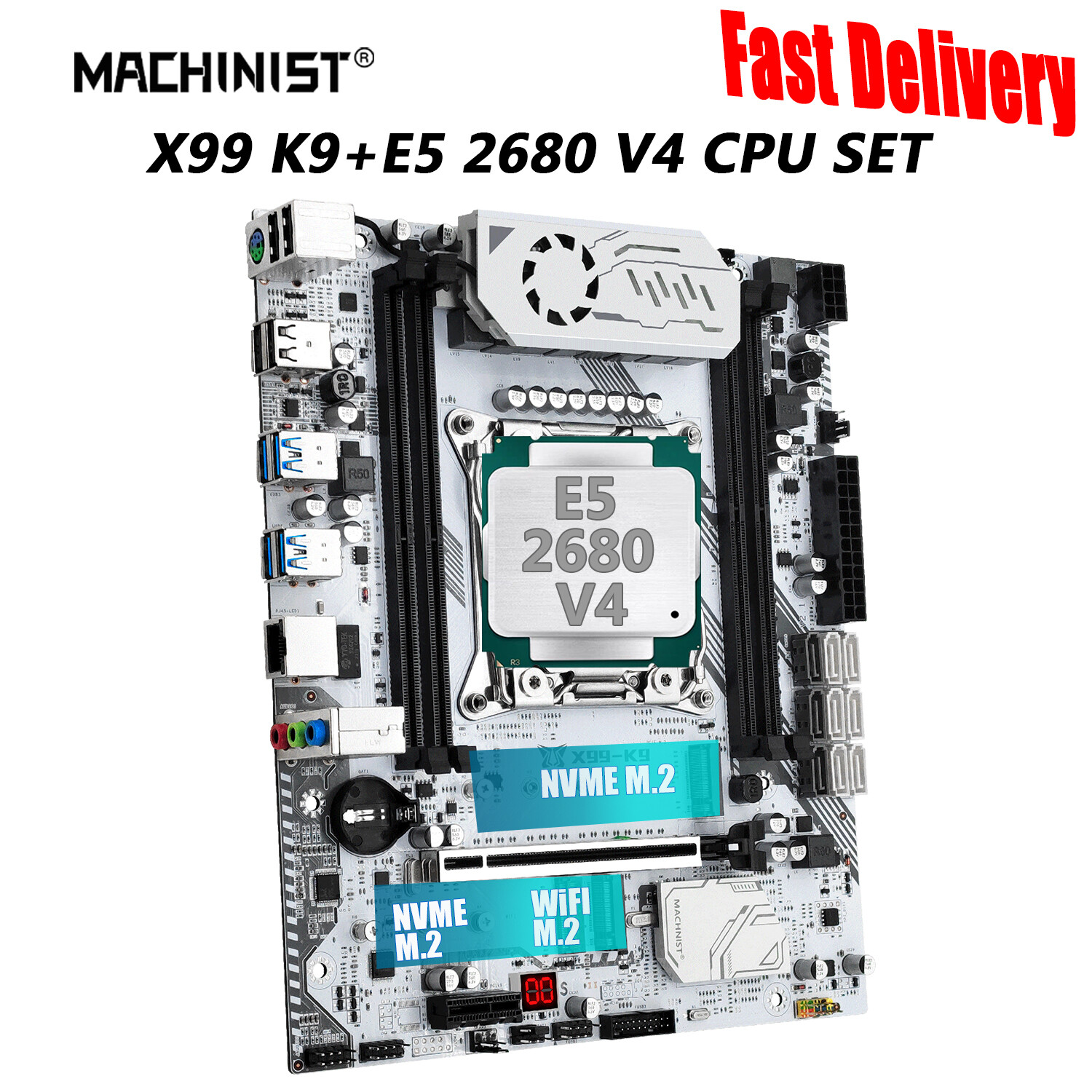

X99 K9 Motherboard Specification: Main chipset Intel C612/X99 CPU socket Intel LGA 2011-V3 (Support Intel i7 XEON E5 V3/V4) Memory slot DDR4 ECC RAM, Four channel (Support2666/2400/2133 MHz) Maximum memory 128GB PCI-E standard PCI-E 3.0 PCI-E slot 1 * PCI-E X16, 1 * PCI-E X1 Storage interface 9*SATA3.0, 2*M.2 NVME, 1*WiFi M.2 Sort of USB supported 5 * USB3.0, 3 * USB2.0 Onboard LAN 1x RJ45，WIFI(AC) Power connector 24pin + 8pin Motherboard type Micro ATX Overclock Support RAID Support Motherboard size 23.8 * 20cm Other interfaces 3 * audio interface Package list Original box, i/o blocking, sata cable, CPU fan bracket MACHINIST X99 K9 X99 Motherboard LGA 2011-3 Four Channels X99 Chip Support Intel Xeon E5 V3&V4 CPU DDR4 RAM WIFI/NVME M.2 Slot
Features:
Support Dual NVME M.2, and WIFI M.2
Support DDR4 ECC RAM Memory, Four Channel
Maximum memory up to 128GB
USB 3.0, C612 Chip SetMACHINIST Product Details:
Brand: MACHINIST
Condition: Brand New
CPU socket: LGA 2011-3
Motherboard model: E5 K9
Structure: M-ATX
Chipset: Intel C612
Memory slot: 4*DDR4 (four memory channels)
Maximum memory supported: 4*32GB DDR4
Supported memory types: The memory types support DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix, and other international brands, other brands are incompatible)
LAN port: 10/100/1000Mbps/s
Video output port: requires graphics card support
Interface: 3.0 x16/1*PCI-E 3.0 x1/2*NVME M.2 interface/1*WIFI M.2 interface;
Motherboard size: 238*200mm
Motherboard weight (including packaging): about 0.9kg
8-phase power supply: With an 8-phase power supply combination and all solid-state capacitors, the equipment has a long service life and durability.
Application: Desktop, Server, Workstation, Mining
Usage Scenario: Enthusiast & Overclocking, Gaming, Audio & Video, Household, Office, Design, Video Production, Server, OthersWhat's in the box:
1* Motherboard
1*CPU（Processor model see main picture）
1* I/O Shield
1* CPU Fan Bracket
1* SATA cable
