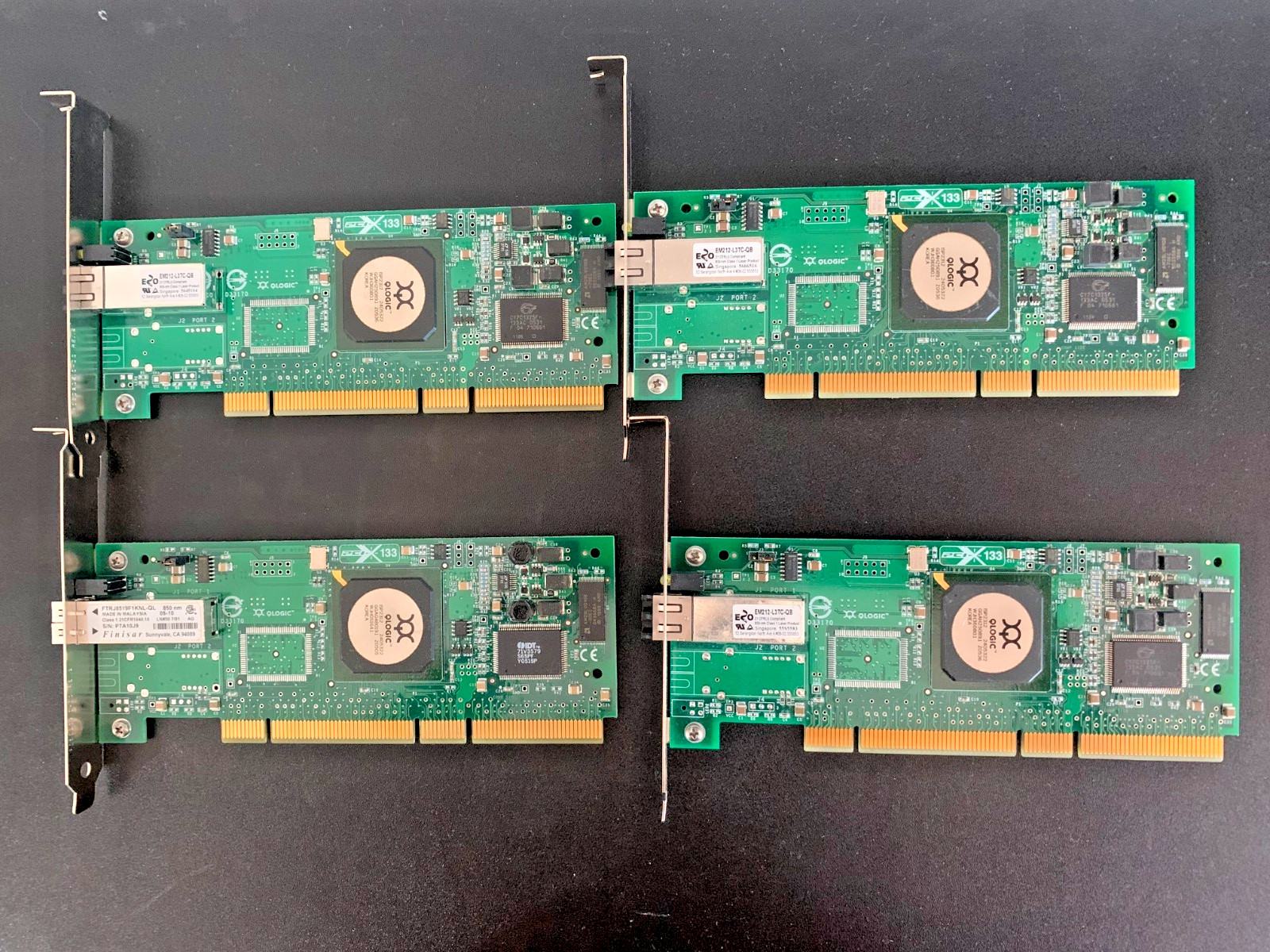

LOT FOUR Q-Logic FC5010409 QLA2340 PCI-X SINGLE Port 2GB Fiber Channel Adapter
Price: US $70.00
The QLogic QLA2340 is a single-port, 2 Gbps Fibre Channel Host Bus Adapter (HBA) designed to connect servers to Storage Area Networks (SANs) and Direct-Attached Storage (DAS). Originally released by QLogic, it relies on a high-speed PCI-X interface for robust enterprise storage connectivity.Key Technical Specifications
Host Bus Interface: 64-bit, 133-MHz PCI-X (compatible with 3.3V and 5.0V buses)
Data Transfer Rate: Up to 2 Gbps (2.12 Gbps max), allowing for 200 MBps half-duplex and 400 MBps full-duplex
Ports: Single (1) port
Media & Optics: Short wave laser, multimode optic via LC-style connector
Form Factor: Low-profile MD2 (16.93 cm × 5.15 cm)
Bracket Sizes: Available with a standard bracket (QLA2340) or low-profile bracket (QLA2340L)
On-Board RAM/Cache: 256 KB
Power Dissipation: ~7.0 watts
Topologies Supported: FC-AL, FC-AL-2, Point-to-Point, and Switched Fabric (FL_Port and F_Port)
OS Compatibility: Supported across legacy and enterprise environments, including Linux, Microsoft Windows (2000, XP, Server 2003, NT), SunSoft Solaris, and Novell NetWare
