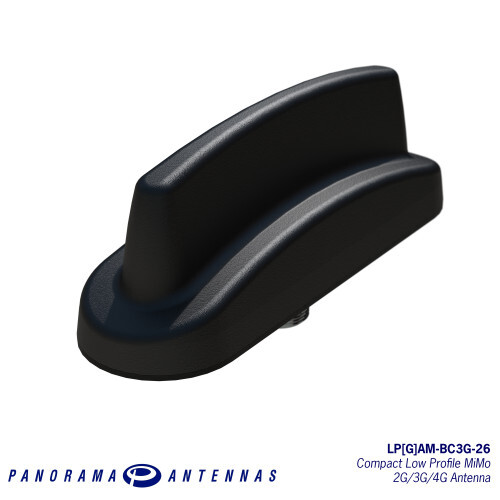

High Quality Antenna as expected from Panorama Antennas.
Suits all modems with SMA connector. Covers all frequencies/networks up to 5G (3800MHz)
Feel free to ask any questions. Free express post in Australia. $20 Worldwide.
Manufacturers details:
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.
The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3’) or 3m (10’) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
Product Features
- Compact low profile MiMo LTE antenna,
- High performance in a distinctive design,
- Optional GNSS version available
Performance Features
- Covers all 2G/3G/4G/5G LTE cellular bands,
- Weatherproof design,
- Single hole mount with a small footprint
Benefits
- Provides MiMo LTE capability in a compact antenna,
- Easy to install with integrated cables,
- Can perform on or off a conductive surface
Suggested Applications
- Static M2M & IoT devices,
- Remote monitoring, smart metering,
- Vending machines
Electrical DataLTE Frequencies698-960/1710-3800MHzGlobal PositioningGPS / GNSS 1562-1612LTE MiMo2x2Max Input Power (W)20PatternOmni-directionalGround Plane IndependentYes
Mechanical DataAvailable ColoursBlackLength (mm)150Width (mm)45Height (mm)49Operating Temperature-30 / + 70°CMounting DataMounting TypePanel MountMounting Method18mm (3/4") Mounting Bush
