Description:The eight-port MegaRAID SAS 9240-8i, supports data transfer rates of up to 6Gb/s per port, brings new features and improved performance to entry-level server applications using up to 64 SATA or SAS devices.
Features:- 6Gb/s data transfer rate- Eight internal 6GB/s SATA+SAS ports- Two x4 Mini-SAS Internal connectors (SFF8087)- LSISAS2008 controller- PowerPC 440 @ 533MHz- Hardware RAID solution- x8 PCI Express 2.0 host interface- Low-profile form factor- Supports up to 64 physical devices- Up to 16 physical devices in a RAID configuration- Patrol read- Consistency Check- S.M.A.R.T error detection- Power management support- MegaRAID Storage Manager
Technical Information:Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drivesPhysical Dimensions: 6.6" X 2.536" (Low-Profile)Connectors: InternalTwo X4 Mini-SAS SFF8087 (vertical orientation)Max Number of Physical Devices: Non-Raid: 64,RAID 0: 16 per volume,RAID 1: 2 per volume plus hotspare,RAID 5: 16 per volume,RAID 10: 16 per volume,RAID 50: 16 per volumeHost Bus Type: 8-lane, 5 GT/s PCI Express 2.0 CompliantData Transfer Rates: Up to 6Gb/s per portSAS Controller: LSISAS2008Key RAID Data Protection Features:- Selectable logical drive as boot drive- Consistency Check- Fast initialization for quick array setup- Native Command Queuing- Staggered spin up for SATA drives- Hot plug support- Global hot spare support- Online Capacity Expansion (OCE)- Online RAID Level Migration (RLM)- Single controller Multipathing (failover)- Load balancing-SafeStore Encryption Services- Instant Secure Erase- SSD support with SSD Guard- Automatic rebuild of hot spare drives- Auto resume during array rebuild- Fault LED support through SGPIO- >2TB logical drive support- Soft bad block management- Error recovery support- DDF compliant Configuration on Disk- S.M.A.R.T. support- Patrol read for media scanning and repairing- Enclosure management- SES (inband)- SGPIO (sideband)- RAID Managment MegaRAID Management Suite:- MegaRAID Storage Manager- MegaCLI (command-line interface)- WebBIOSEnvironments Operating:0°C to 70°C,5 to 90% Non-condesing Storage,-45°C to 105°C,5 to 90% Non-condesingPCI Card Type: 3.3V Add-in CardPCI Voltage: +12V±10%PCI Power: 13.5WPCI Modes: Bus Master DMALED Indicators: InternalActivity/Fault per x4 port - HearbeatMTFB: >2,000,000 HoursCompliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950OS Support: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, Vmware.Brackets: Full Height and Low-Profile

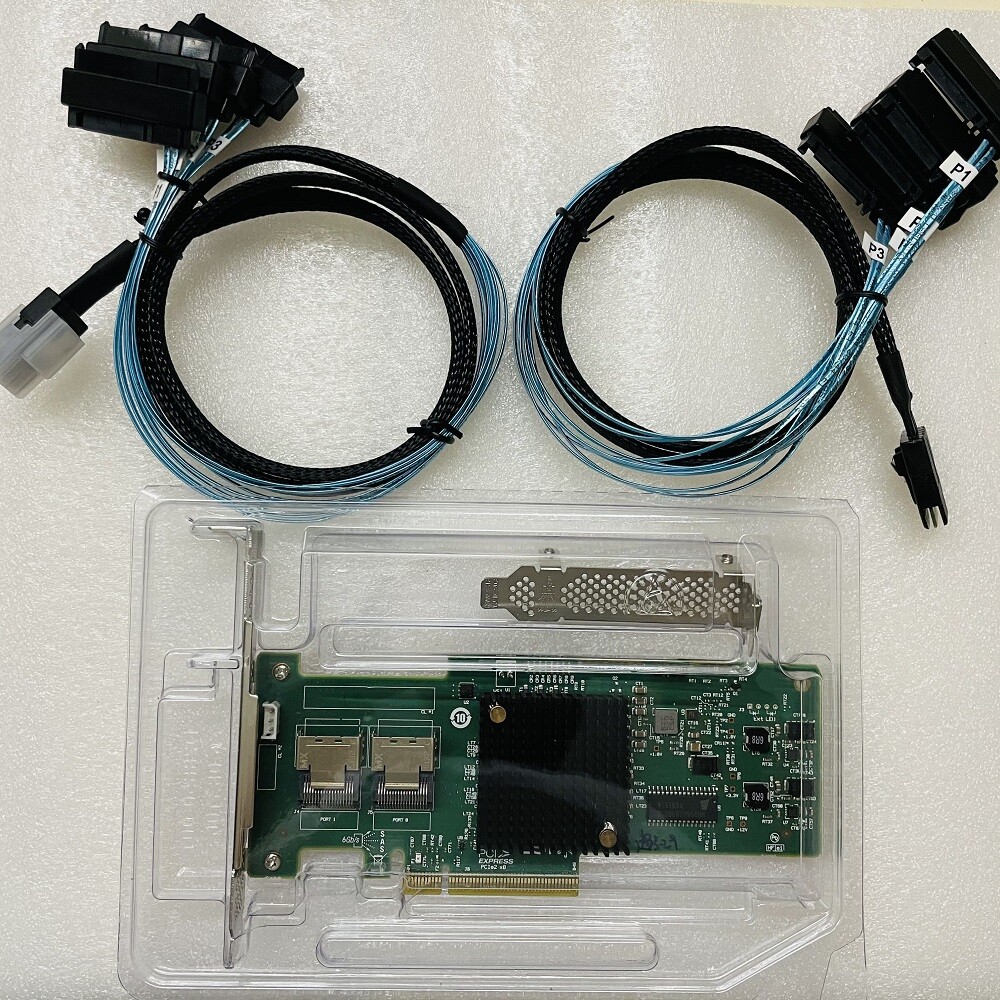

Package Contents
²1 XLSI 9240-8i
²2 XMini SAS 36 SFF-8087 to (4) SFF-8482cable
Shipping and Payment
※Shipping to US/AU/UK:
Ship via USPS First Class Mail. ETA 8 to 15 business days.
※International Shipping:
Ship viaChinaPostal Service Airmail. ETA 3 to 6 Weeks. You may sometimes experience longer delivery time due to customs-related delays. Please let us know. ( No service on Sundays and public holidays)
※Only PayPal accepted
※Payment must be received within 7 business days of sale closing
※Ship to confirmed address ONLY
Warranty and response
※All of our items are thoroughly tested and are guaranteed to be 100% functional and covered by a DOA warranty. If for any reason you receive an item in a nonworking condition or your item is "Not as Described" please contact us through 's messaging system and we will work with you resolve all issues.
※We guarantee you a five star shopping experience with us. If you are not satisfied with your purchase, please contact us within 14 days of receipt to return it for a refund or exchange.
※All faulty due to improper installation or improper use will NOT be covered by the warranty. Any physical damage will void your warranty.
Seller’s Note
Please contact us first to solve any issue and we will respond within a reasonable time. We will do our best and help you provide the solution. If you were satisfied with our products and services, please take a moment to give us a nice response and rating.
Thank you so much for always choosing and doing business with us!
