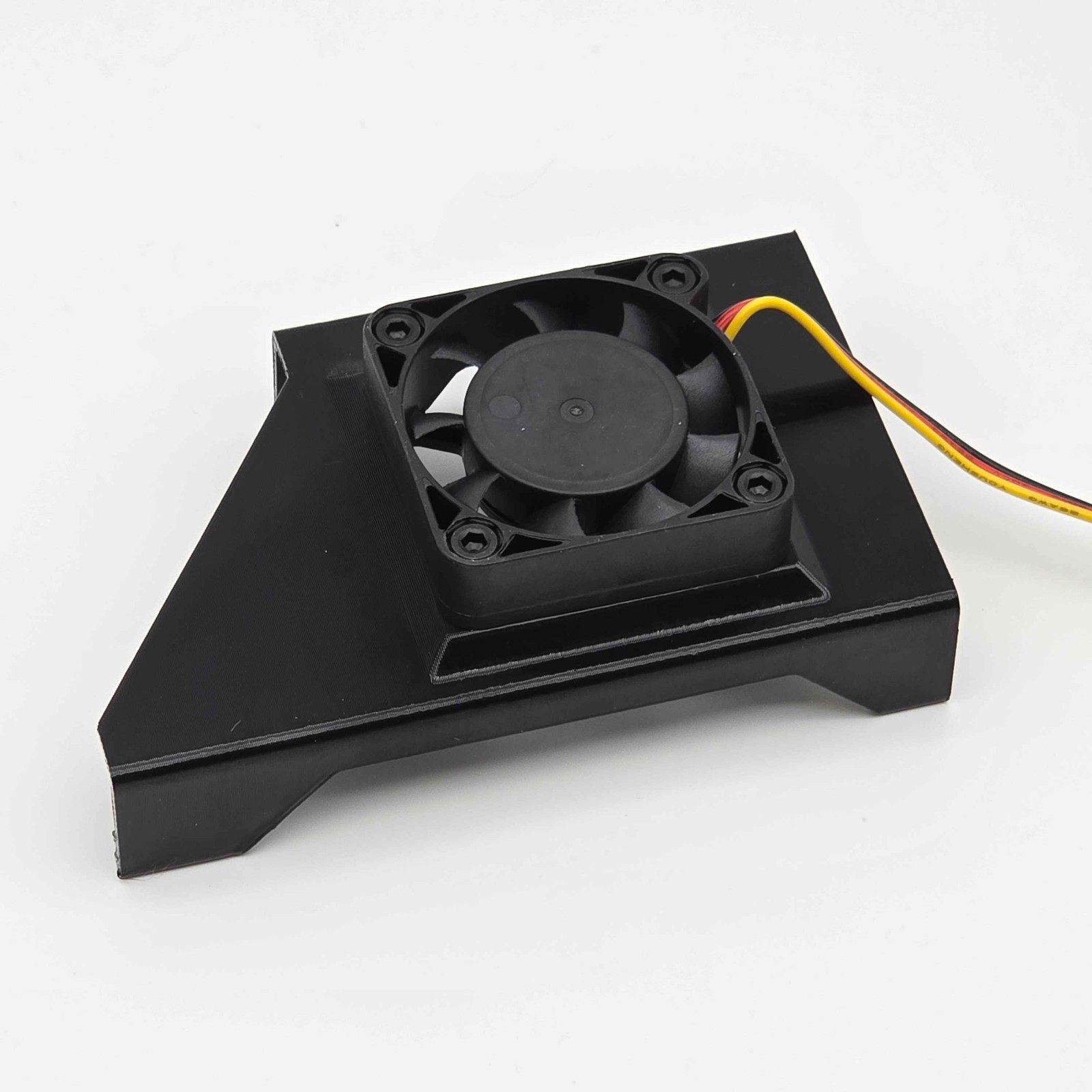

HBA COOLER Fan Included + Cooling Shroud Designed & Manufactured by MayberryManufacturing ✓ FAN INCLUDED This listing includes the cooling shroud + fan pre-mounted to the shroud. HBA / RAID card is NOT included. ✓ Looking for a fan-mount-only version?
Please see our store page. ✓ DETAILS ✓ Compatible Card(s) Compatible with the card model(s) listed in this listing title ✓ Fan Included Yes — fan is pre-mounted to the shroud ✓ Fan Size See listing title for included fan size ✓ Fan Connector Standard desktop 3-pin fan header ✓ Fan Speed Control DC voltage control through motherboard BIOS ✓ Bearing Silent oil-lubricated sleeve bearing ✓ Material Heat-resistant Polycarbonate (PC) ✓ PCIe Slot Usage Approx. 1.75 slots
Card + shroud + fan ✓ Mounting Snug clip-on fit directly to the PCB FAN CONTROL: For a 3-pin fan, set the motherboard fan header to DC / Voltage mode rather than PWM mode when controlling fan speed. ⚠ COMPATIBILITY NOTICE This cooler is designed specifically for the card model(s) listed in this listing title. Fitment cannot be guaranteed for counterfeit cards due to possible differences in PCB dimensions and heatsink dimensions or placement. ✓ For compatibility with both genuine and counterfeit cards, please see the Universal HBA Coolers on our store page. 🔧 INSTALLATION 1. Place the shroud over the heatsink.
2. Clip the two clips on the PCIe slot side onto the PCB first.
3. Apply lateral pressure at the top of the shroud, pushing the shroud toward the opposite side.
4. The remaining two clips will make an audible click when they engage over the PCB.
5. Connect the included fan to a compatible motherboard fan header. NOTE: The shroud is intentionally designed to fit snugly onto the card's PCB. Some force is required during installation. Please see the listing video for installation. YOUR HBA WAS DESIGNED FOR A SERVER
Enterprise HBA cards were designed for rackmount servers and other high-airflow systems. Powerful chassis fans continuously force air across the PCIe area and through component heatsinks.
The heatsink is only one part of the cooling system. THEN WE PUT THESE CARDS IN DESKTOPS
A desktop can have several case fans and still provide very little airflow through an HBA heatsink. Desktop airflow can spread around the card instead of being forced through its fins.
DESKTOP / NAS Lower-speed airflow can move around the heatsink SERVER High-speed airflow is forced through the heatsink NO BUILT-IN FAN DOES NOT MEAN NO AIRFLOW REQUIRED
A heatsink transfers heat away from the controller and spreads it across a larger surface area. Airflow is what carries that heat away.
COOL AIR → HEATSINK → WARM AIR EXITS ✓ GIVE IT DIRECT AIRFLOW
Adding dedicated airflow directly through the heatsink can substantially lower controller temperatures.
REAL CUSTOMER RESULT 89°C → 63°C 26°C temperature reduction reported on a Broadcom LSI 9305-24i “This product is honestly miraculous. My Broadcom LSI 9305-24i went from running at a constant 89 Celsius to 63.” Results vary based on card, fan, workload, ambient temperature and chassis airflow. ⚠ YOUR HBA HANDLES YOUR DATA
Your HBA sits between your system and your drives, handling the reads and writes your storage depends on. Excessive heat can contribute to controller instability and resets that may interrupt I/O.
A hot HBA does not automatically mean your data is in danger, but when something this important is responsible for your data integrity, better safe than sorry. GIVE YOUR HBA THE AIRFLOW IT WAS DESIGNED TO HAVE. ✓ BUILT FROM POLYCARBONATE 3D printed with heat-resistant polycarbonate (PC) to withstand high-temperature environments without deforming. ✓ ABOUT ✓ MANUFACTURING Designed & manufactured in the USA ✓ SHIPPING FREE USPS shipping
Approx. 3-5 business days ✓ PROCESSING 2 business days ✓ BUY WITH CONFIDENCE 60 DAY MONEY BACK GUARANTEE No questions asked. MAYBERRYMANUFACTURING Dedicated HBA & NIC Cooling Solutions ✓ 30+ Cooler Models Available on Our Store Page
