Item Specifics

Brand: LSI Logic

Model: SAS3041E

Part Number / P/N: L3-25070-00A

SAS Address: ⁠500062B-0-0025-DBE8⁠

Serial Number: ⁠SP11337090⁠

Interface Class: Host Bus Adapter (HBA) / RAID Controller

Internal Ports: 4x Internal SAS / SATA 7-Pin Connectors

Host Interface: PCI Express x4 (PCIe 1.0a)

Transfer Rate: Up to 3Gb/s per port

Controller Chip: LSI SAS1064E / ARM 3

RAID Levels Supported: Integrated RAID 0, 1, 1E, 10E

Form Factor: Low Profile PCB with Full-Height Bracket Included

Compatible Drives: Internal SAS and SATA Hard Drives / SSDs

Description

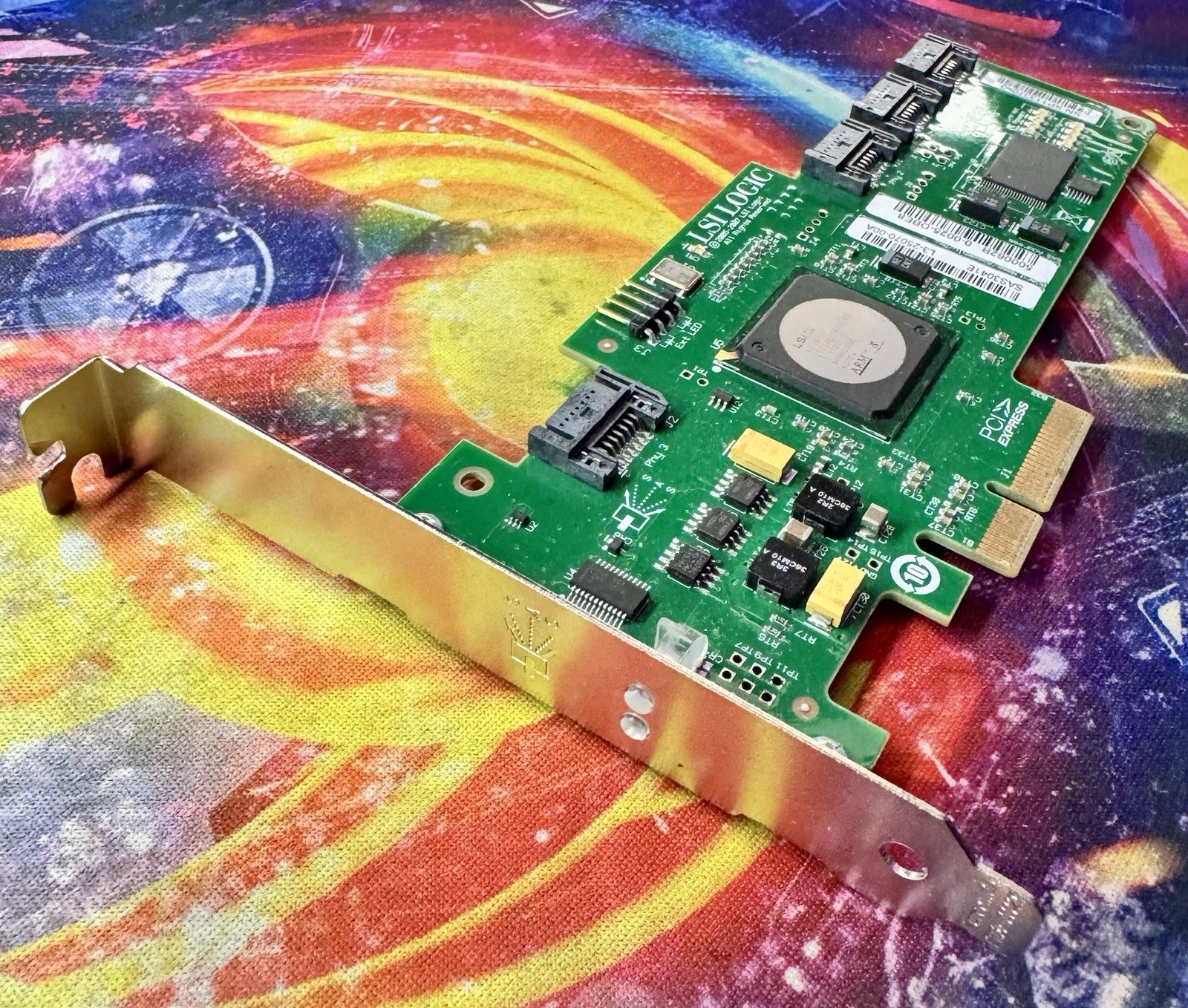

Up for sale is an LSI Logic SAS3041E 4-Port SAS/SATA Host Bus Adapter (HBA) Controller Card (P/N: L3-25070-00A) equipped with a full-height PCIe mounting bracket.

This card features 4 internal SATA-style 7-pin ports powered by the LSI SAS1064E controller chip. It provides 3Gb/s speed per channel and supports both standard SATA drives and SAS hard drives, making it an excellent, low-overhead solution for server storage expansion, home labs, or JBOD setups.

Features & Technical Specifications:

Model: LSI Logic SAS3041E (Board Assembly P/N: L3-25070-00A)

Bus Interface: 4-Lane PCI Express (PCIe x4 slot required)

Connectors: 4x Internal 7-Pin SAS/SATA ports

Data Rate: 3Gb/s per port (SAS-1 / SATA II)

RAID Capabilities: Integrated Hardware RAID 0, 1, 1E, and 10E

Architecture: Fusion-MPT architecture

Bracket: Full-Height / Standard Profile PCIe Bracket installed

Condition:

Pulled from a working environment.

Clean PCB condition with no visible damage, missing components, or bent pins.

Untested
