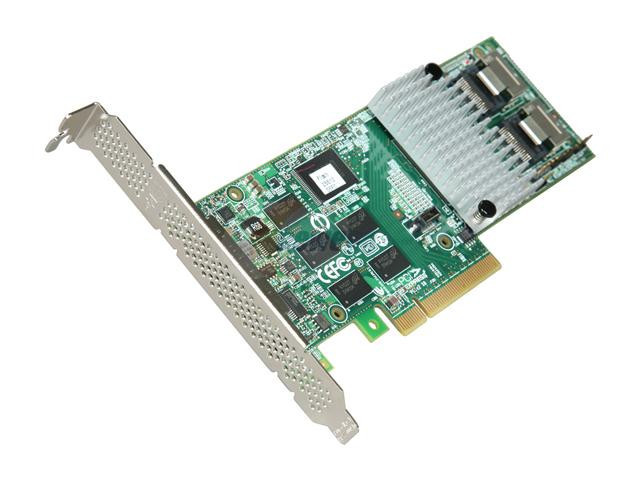

LSI MegaRAID 9261-8i 8-port Internal 6Gb/s SAS SATA RAID Controller Card
Price: US $79.00
LSI MegaRAID SAS 9261-8i 8-port PCI-Express 6Gb/s SATA SAS RAID controller. 2x SFF-8087 connectors. Controllers Card Only. No Accessories.
Full-height bracket is installed. If you need low-profile bracket instead, please let us know, so we will change the bracket for you.
Optional: SFF-8087 to (4) 7-pin SATA Fanout cable. 0.5M : $9 each SFF-8087 to (4) SFF-8482 29-pin SAS Drive with Power. 1M: $24 each Used LSIiBBU07: $85 New LSIiBBU08: $135
The eight-port MegaRAID® SAS 9261-8i provides a new level of performance and data protection for internal storage systems using up to 32 SATA or SAS hard drives or solid state drives. With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9261-8i brings users new features and improved performance while continuing to support all the features of the previous 3Gb/s SATA and SAS generation. This value line controller, ideal for inside-the-box connectivity, employs the latest in RAID-on-Chip (ROC) technology and complies with the PCI Express® 2.0 specification for high-bandwidth applications.
Features
Eight internal SATA+SAS ports
Two mini-SAS SFF-8087 x4 connectors (horizontal mount)
6Gb/s throughput per port
LSISAS2108 ROC o 800MHz PowerPC®
Low-profile MD2 form factor (6.6” X 2.536”)
x8 PCI Express 2.0 host interface
512MB DDRII cache (800MHz)
Optional battery backup unit (direct attach)
Connect up to 32 SATA and/or SAS devices
RAID levels 0, 1, 5 and 6
RAID spans 10, 50 and 60
Auto-resume on rebuild
Auto-resume on reconstruction
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
SafeStore™ Encryption Services o Instant secure erase
SSD support with SSD Guard™
Global and dedicated hot spare with revertible hot spare support o Automatic rebuild o Enclosure affinity o Emergency SATA hot spare for SAS arrays
Single controller multipathing (failover)
I/O load balancing
Comprehensive RAID management suite
Benefits
Superior performance o Maximum reads: 2,875MB/s o Maximum writes: 1,850MB/s
PCI Express 2.0 provides faster signaling for high-bandwidth applications
Support for 3Gb/s and 6Gb/s SATA and SAS hard drives for maximum inside-the-box flexibility
SafeStore Encryption Services for more secure data protection
Low-profile MD2 form factor and horizontal-mount for 2U environments
