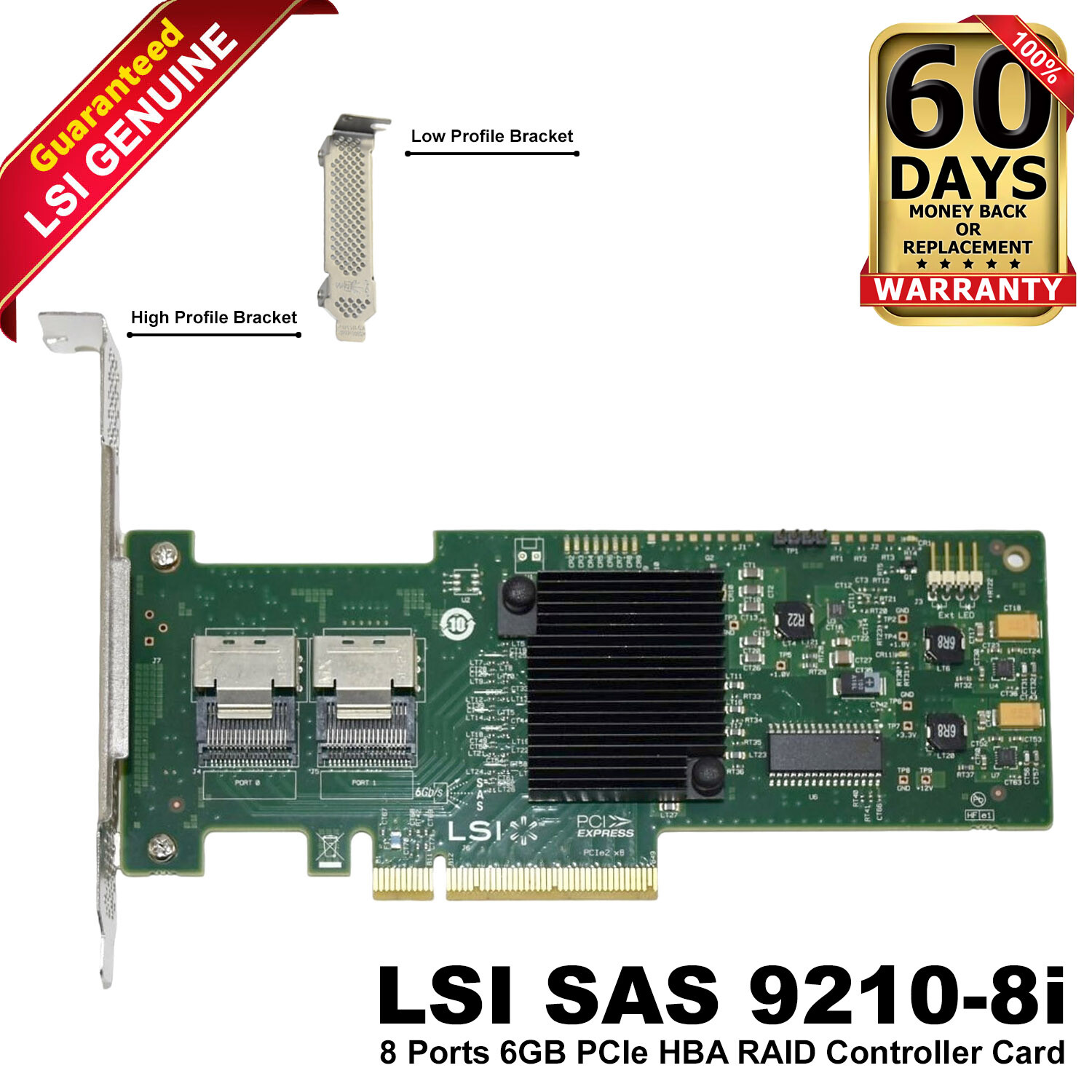

LSI SAS 9210-8i 8-Ports SAS/SATA 6Gb/s PCIe 2.0 RAID 0,1,1E,10 Controller HBA
Brand: LSI
Part Number: 9210-8i
Model: SAS 9210-8i
MPN: 9210-8i
Type: Host Bus Adapter (HBA)
PCI Card Type: 3.3 V Add-in Card
Interface: SAS 6Gb/s / SATA 6Gb/s
Controller Details:
I/O Controller: LSISAS2008
Architecture: Fusion MPT 2.0
Protocol Standards:
Fully compliant with SAS 2.0 and SATA III (6Gb/s) standards
Backward compatibility with SAS 1.0 and SATA I/II devices
Storage Connectivity:
Number of Ports: 8 internal SAS/SATA ports
Connector Type:
Two internal mini-SAS (SFF-8087) connectors
Vertically positioned for efficient cable management
Host Interface:
PCIe Version: PCI Express 2.0 x8 (compatible with x16 slots for added flexibility)
RAID Support:
Supported RAID Levels:
RAID 0 (Striping)
RAID 1 (Mirroring)
RAID 1E (Enhanced Mirroring for larger arrays)
RAID 10 (Striped Mirroring)
Supports software-based RAID solutions for additional flexibility
Device Support:
Maximum Devices Supported: Up to 256 SAS or SATA devices
Supported Device Types:
HDDs (Hard Disk Drives)
SSDs (Solid State Drives)
Tape Transfer Rates: Up to 6Gb/s per port
Throughput: High-speed performance suitable for modern storage systems
Physical Characteristics:
Dimensions: 2.6” x 6.6” (compact for space-efficient installation)
Power Consumption:
~7W (requires a minimum airflow of 200 LFM for optimal (Mean Time Between Failures): Over 2,000,000 hours
Environmental Requirements:
Operating Temperature: 0°C to 55°C
Operating Humidity: 5% to 90% and OS Compatibility:
Compatible with a wide range of operating systems, including:
Microsoft Windows Server (2008, 2012, and newer)
Linux Distributions: SuSE, Red Hat, Ubuntu, CentOS, and more
VMware: ESXi
Unix-based Systems: Solaris and FreeBSD
This item will be shipped exactly as shown in pictures.
