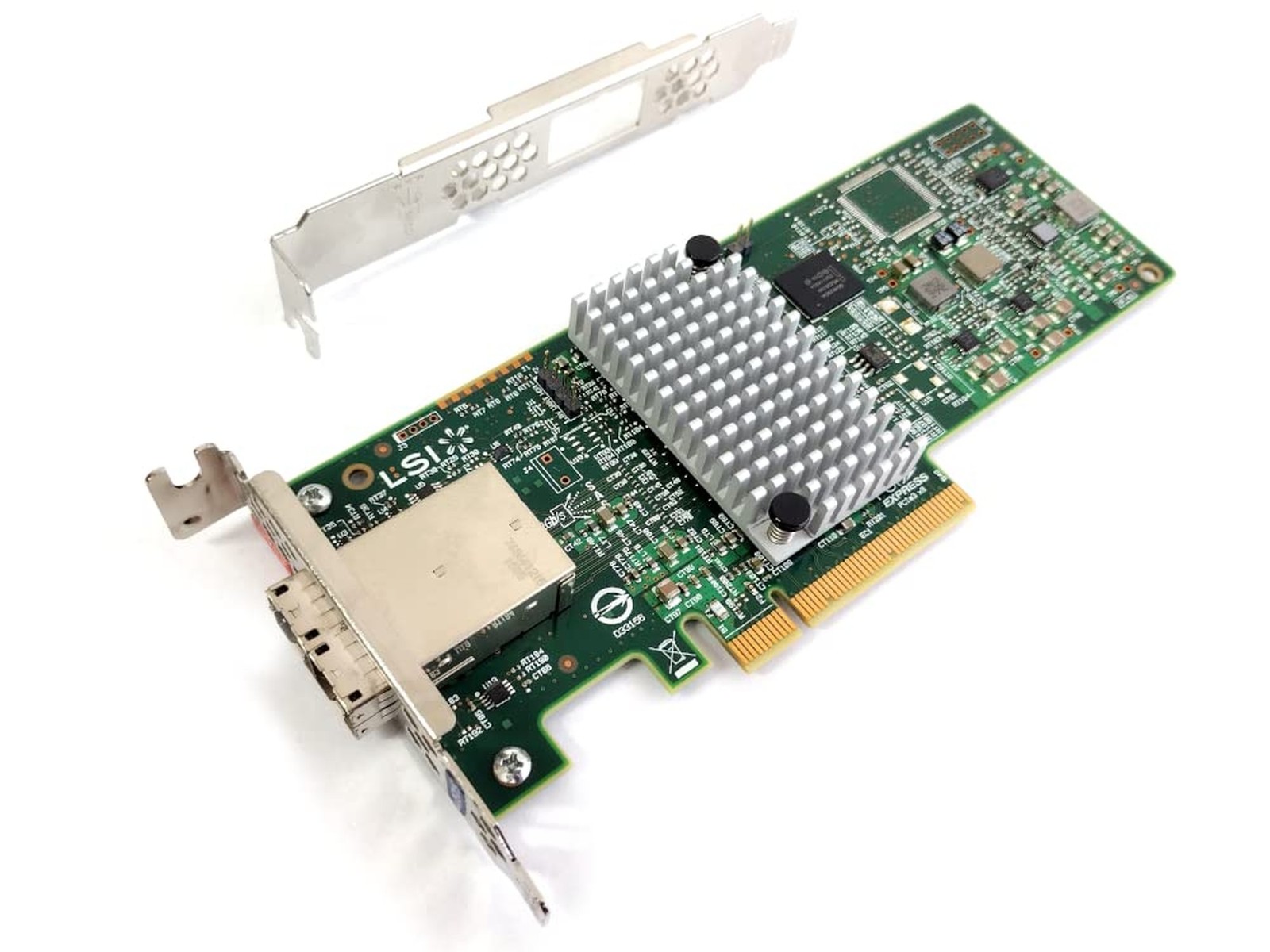

Brand New LSI SAS 9300-8e 8-Port External 12Gb/s HBA Card IT Mode, StorageTekPro Flashed for ZFS FreeNAS unRAID
Manufacturer model: 9300-8e

• [FIRMWARE] - Flashed to Avago / LSI 9300-8e IT (Initiator Target) firmware version P16 (specifically - Works for other ZFS setups like FreeNAS, unRAID, Proxmox VE, etc.

• [FEATURES] - 8-Ports External, 12Gbps SAS 3.0, PCI-Express, 2x SFF-8644 External connectors, IT-Mode

• [MOUNTING BRACKET] - Regular Height bracket installed. Extra Low Profile bracket included.

Description

Avago / LSI 9300-8e flashed to the latest IT-Mode (Initiator Target) firmware version P16 (specifically 16.00.12.00). We also flashed the LSI/Avago MPTSAS3 BIOS ROM version 08.37.00.00 and UEFI 18.00.00.00 so that it is easier to access the controller's ROM without booting an OS. LSI Avago IT mode firmware version P16 (16.00.12.00) MPTSAS3 BIOS ROM flashed version 08.37.00.00 MPTSAS3 UEFI ROM flashed version 18.00.00.00 Original SAS address preserved in flash These cards are based on the LSI SAS3008 SAS controller chipset and support PCI-E 3.0 specifications with x8 lanes. The controller has 2 SFF-8643 connectors, each carrying 4x 12Gbps SAS lanes. You will need a compatible cable to connect these to your hard drives or a backplane. ALL 8 SAS lanes have been fully tested. The SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations. Support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments. Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included) Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe 3.0 connectivity

•
  Shipping and Handling


  Please allow 5-7 business days for the package to arrive, regardless of buyer location within the US.

  We will provide an online tracking number to you once the item has been shipped.

  It may take a few business days for our automated system to process the tracking number onto . However, this will not affect the shipping times.

•
