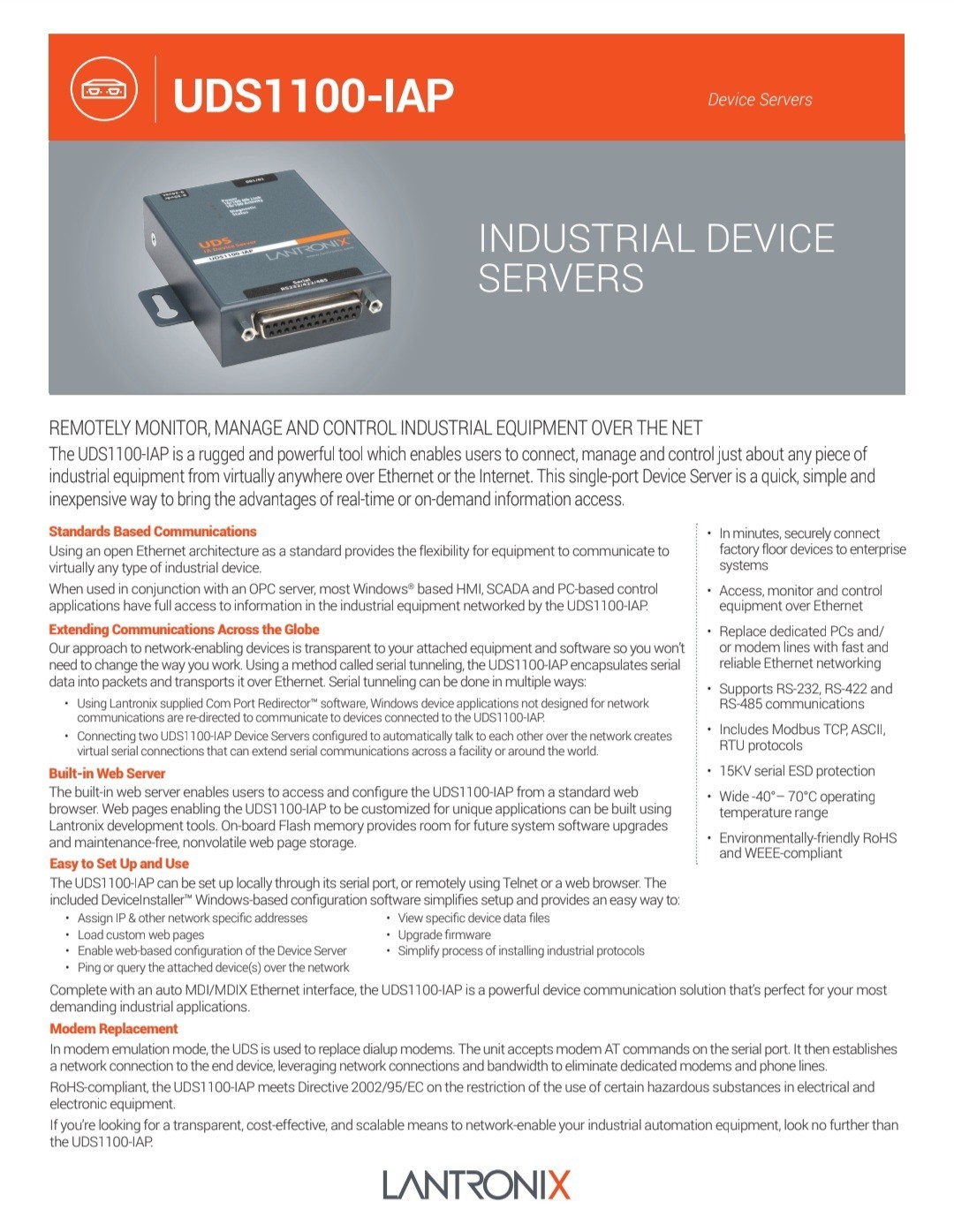

Home » Products » Network Infrastructure » Serial-to-Ethernet Device Servers » UDS family of external device servers enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.Product Brief
External Device Server
In minutes, securely connect factory floor devices to enterprise systems
Access, monitor and control equipment over Ethernet
Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
Supports RS-232, RS-422 and RS-485 communications
Includes Modbus TCP, ASCII and RTU protocols
15kV serial ESD protection
Wide -40°– 70°C operating temperature range
Environmentally-friendly RoHS and WEEE-compliant
NDAA Numbers
UDS1100-IAP Tech Specs
Serial Interface
Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
Connectors: 1 DB25F DCE serial port
Data Rates: Software-selectable baud rate from 300 to 230 KBaud
Characters: 7 or 8 data bits
Parity: odd, even, none
Stop Bits: 1 or 2 Control
Signals: CTS/RTS (Hardware)
Flow Control: XON/XOFF (Software)
Network Interface
Interface: 10Base-T/100Base-TX Ethernet port
Software selectable Ethernet speed 10/100/Auto
Software selectable Half/Full/Auto duplex
Connectors: RJ45
Standards: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, and Telnet, TFTP
Indicators (LED)
Power (green)
10/100 Mb Link (amber/green)
10/100 Activity (amber/green)
Diagnostics (red)
Status (green)
Processor
CPU: Lantronix DSTNI-EX 48 MHz clock
Memory: 256 KB zero wait state SRAM, 2 MB Flash
Management
Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP
Power
9-30 VDC or 9-24 VAC on barrel connector (1.5 Watts maximum consumption)
9-30 VDC on DB25F serial interface
3.3 VDC on serial -40° to 70° C (-40° to 158° F)
Storage: -40° to 85° C (-40 to 185° F)
Packaging
Material: Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available
Dimensions (LxWxH): 9.0 x 6.4 x 2.3 cm (3.5 x 2.5 x 0.9 in)
Weight: 0.20 kg (0.45 lb)
IP Rating: 30
Agency Approvals
UL, CSA, FCC, CE, TUV, CTick, VCCI
Shipping Dimensions
Dimensions (LxWxH): 24.2 x 19.1 x 11.5 cm (9.5 x 7.5 x 4.5 in)
Weight: 1.5 kg (3.0 lbs)
Included Software
Windows® 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector software and related utilities
Emissions
FCC Part 15 Subpart B Class A Radiated Emissions 30MHz – 1000MHz
ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz – 1000MHz
AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz – 1000MHz
EN55022: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz – 1000MHz
VCCI V-3/2005.04 Class A Radiated Emissions 30MHz – 1000MHz
EN61000-3-2: 2000 Class A Harmonic Current Emissions
EN61000-3-3: 1995 + A1: 2001 Fluctuations and Flicker
Immunity
EN55024: 1998 +A1: 2001 +A2: 2003
IEC_61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
IEC_61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
IEC_61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
IEC_61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
IEC_61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
IEC_61000-4-8: 1993 Magnetic Field Immunity 50Hz 1.0 Arms/m
IEC_61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)
Isolation
Designed with protection against transients and ESD for use under harsh environments.
Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers
Power Input: Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages
Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
