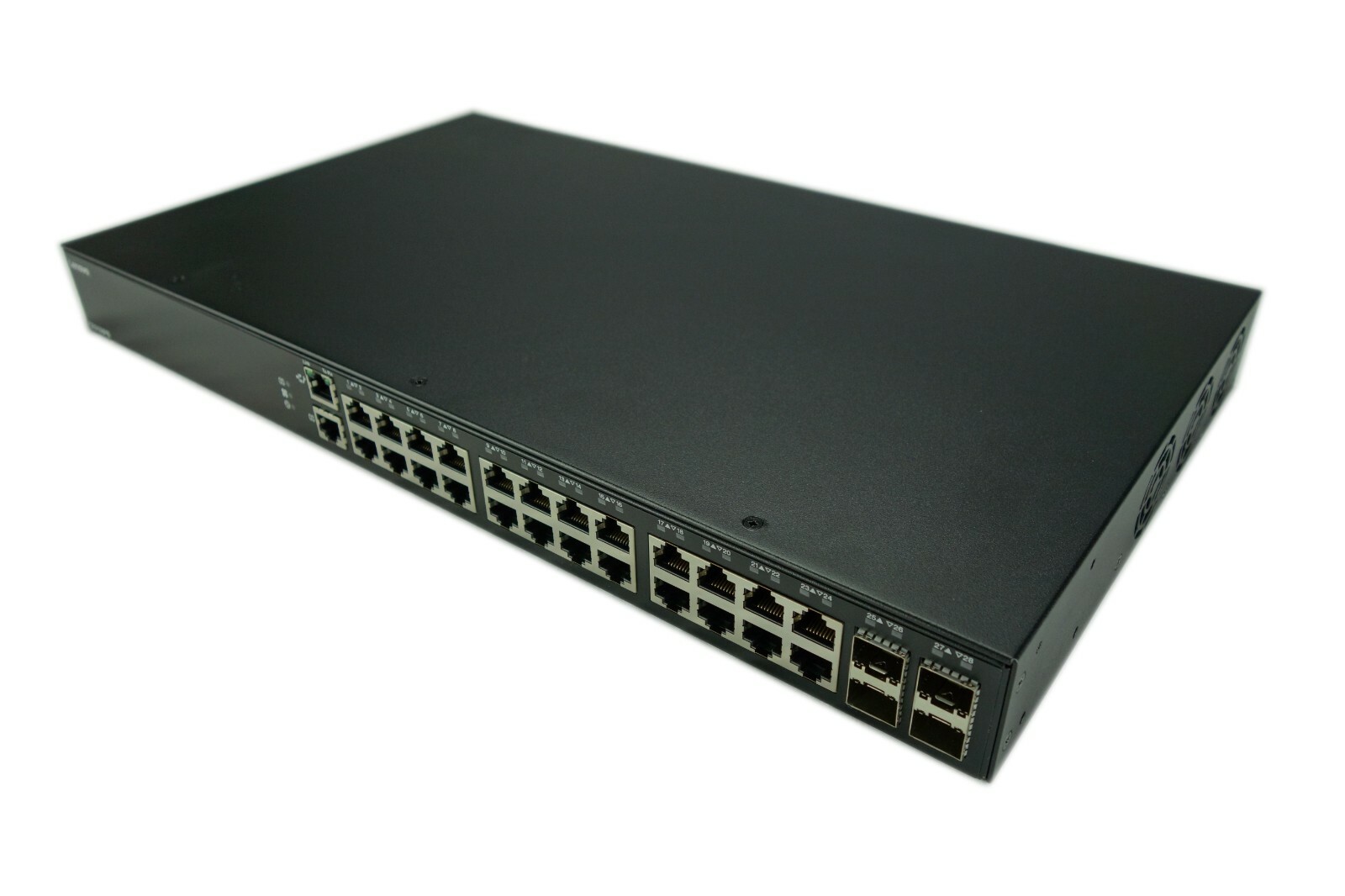

Lenovo CE0128PB 24-Port 1GbE RJ45 PoE Switch + 4-Port SFP+ 10GbE
Managed L2/L3 Rack-Mountable PoE Switch (Please Note that Power Cord is not included by Lenovo) Machine Type Model: 7Z36CTO02WW
P/N: SSG7A46647
FRU: 01FP041
Product ID: 7Z360012WW
Do you need a custom system configured to your specifications? No problem, we are here to help! Contact Us Today.PART NUMBER:SSG7A46647.PRODUCT ID:7Z360012WW .MACHINE TYPE:7Z36CTO02WW.FORM FACTOR:1U Rack-MountablePORTS:
- 24x 1 Gb Ethernet fixed ports (RJ-45) with Power over Ethernet (PoE).
- 4x SFP/SFP+ ports.
MEDIA TYPES:1 Gb Ethernet fixed ports (1000BASE-T):
- RJ-45 UTP Category 5 or 5e.
1 Gb Ethernet SFP:
- 1 GbE short-wavelength (SX) SFP transceivers.
- 1 GbE long-wavelength (LX) SFP transceivers.
10 Gb Ethernet SFP+:
- 10 GbE short-range (SR) SFP+ transceivers.
- 10 GbE long-range (LR) SFP+ transceivers.
- 10 GbE extended-range (ER) SFP+ transceivers.
- 10 GbE RJ-45 SFP+ transceivers.
- 10 GbE SFP+ active optical cables.
- 10 GbE SFP+ DAC cables.
1/10 Gb Ethernet SFP+: 1/10 GbE SX/SR SFP+ transceivers.PORT SPEEDS:
- 1 GbE fixed ports: 10 / 100 / 1000 Mbps auto-sensing.
- 1 GbE SFP transceivers: 1 Gbps.
- 10 GbE SFP+ transceivers, DAC cables, and AOCs: 10 Gbps.
- 1/10 GbE SFP+ transceivers: 1 Gbps or 10 Gbps.
SWITCHING METHOD:Store-and-forward.DATA TRAFFIC TYPES:Unicast, multicast, broadcast.SOFTWARE FEATURES:Lenovo Campus Networking OS (Campus NOS): Layer 2 switching, Layer 3 switching, virtual local area networks (VLANs), VLAN tagging, spanning tree protocol (STP),
link aggregation (trunk) groups (LAGs), link dependency, quality of service (QoS), stacking, IPv4/IPv6 management, IPv4/IPv6 routing, IPv4/IPv6 virtual router redundancy
protocol (VRRP), IPv4/IPv6 policy-based routing (PBR), IPv4/IPv6 protocol independent multicast (PIM).PERFORMANCE:Non-blocking architecture with wire-speed forwarding of traffic:
- 100% line-rate performance.
- Up to 128 Gbps switching throughput.
- As low as 2 µs (10 Gbps) or 4 µs (1 Gbps) port-to-port switching latency.
- Up to 95 Million packets per second (Mpps) (64-byte packets).
- Up to 9216-byte jumbo frames.
- Buffer size: 1.5 MB.
SCALABILITY:
- MAC address forwarding database entries: 16384.
- VLANs: 4093.
- PVST instances: 64.
- MSTP instances: 31.
- Link aggregation groups: 64.
- Ports in a link aggregation group: 8.
- IP interfaces: 192.
- ARP cache entries: 512.
- Routing table entries: 512.
- ACL entries: 256.
COOLING:Tree fixed, internal, variable-speed system fans with side-to-side (left-to-right) airflow.POWER SUPPLY:One fixed 260 W AC (100 - 240 V) power supply (IEC 320-C14 connector).
(Power Cord is not included by Lenovo)POWER OVER ETHERNET (PoE):
- RJ-45 fixed ports: Up to 15.4 W / 30 W power output (PoE / PoE+).
- SFP+ ports: No PoE support.
- Maximum PoE/PoE+ power output for the switch on all ports: 185 W.
HOT-SWAP PARTS:SFP/SFP+ transceivers, SFP+ DAC cables, and SFP+ AOCs.MANAGEMENT PORTS:1x 10/100 Mb Ethernet port (RJ-45), 1x RS-232 port (RJ-45).MANAGEMENT INTERFACES:Web-based GUI; Command line interface (CLI); SNMP v1, V2, and v3.SECURITY FEATURES:Secure Shell (SSH); Secure Copy (SCP); Secure FTP (sFTP); user level security; Role-based Access Control (RBAC); RADIUS and TACACS+ authentication; access
control lists (ACLs), port security; port-based network access control (IEEE 802.1x).MEANTIME BETWEEN FAILURES:Over 600 000 hours MTBF at 25 ºC (77 ºF).DIMENSIONS:Height: 44 mm (1.7 in.); width: 441 mm (17.4 in.); depth: 254 mm (10.0 in.).WEIGHT:3.7 kg (8.2 lb).WARRANTY:Buy with confidence, this system ships with a 30 day money back guarantee, and 1 year warranty.PLEASE NOTE - STOCK PHOTOS ARE SHOWN AND MAY NOT BE THE ACTUAL UNIT SHIPPED.
