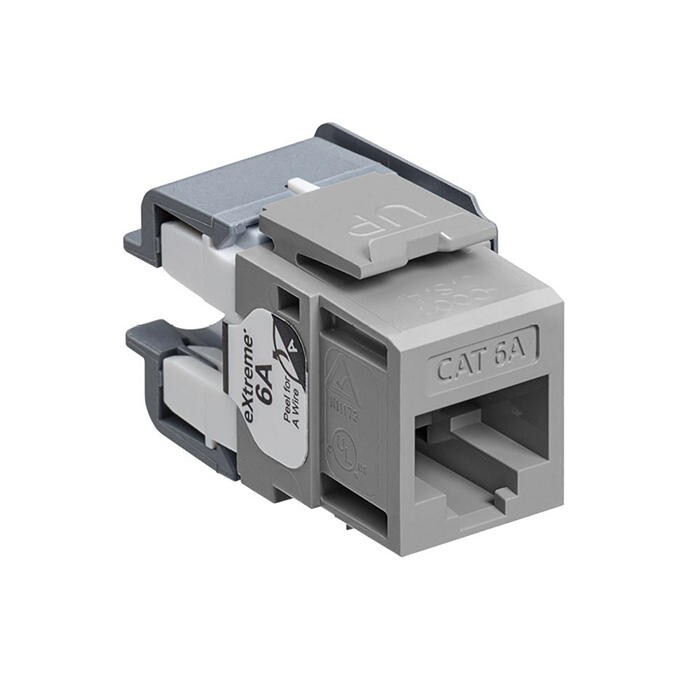

Leviton 6110G-RG6 Extreme Cat 6A Quickport Jack Channel-Rated Gray Click Thumbnails to EnlargeDESCRIPTION
• Extreme Cat 6A Quickport Jack Channel-Rated Gray.
APPLICATION
• The EXTREME Cat 6A Channel-Rated QUICKPORT jack is designed to be used with all QUICKPORT compatible products and features patented injection-molded Cone of Silence covers to eliminate alien crosstalk (AXT). The jack includes patented Retention Force Technology to promote consistent network performance over the life of the system. Unique Pair Separation Towers facilitate quick, easy terminations. The jack is configured in a 180-degree configuration such that the punch down field is in the back, allowing for rear termination.
FEATURES
• Terminates 26 to 22-gauge solid conductors and 24 to 22-gauge stranded conductors.
• Terminates 26-gauge stranded conductors up to 5 times.
• Cat 6A/Class EA Channel Performance.
• Patented RFT protects against tine damage from 4- or 6-pin plugs.
• lien crosstalk suppressed by Cone of Silence, metalized body, and new printed circuit board.
• Pair Separation Tower (PST) design facilitates separation of Cat 6A conductors.
• Patented, dual-layer wiring label simplifies punchdown and reduces rework.
CLASSIFICATIONS
• Brand Name: Leviton
PRODUCT SPECIFICATIONSPart Number 6110G-RG6Product TypeUTP Jack
Connector Body MaterialHigh-Impact Fire-Retardant Plastic
ColorWhiteNumber of Ports
1Category Rating
Cat 6A
Position / Conductor
8P8C
Module Type
Category Contacts
High-quality,copper-based alloy, plated with 50 microinches of gold for lowest contact resistance and maximum life
