Product Description

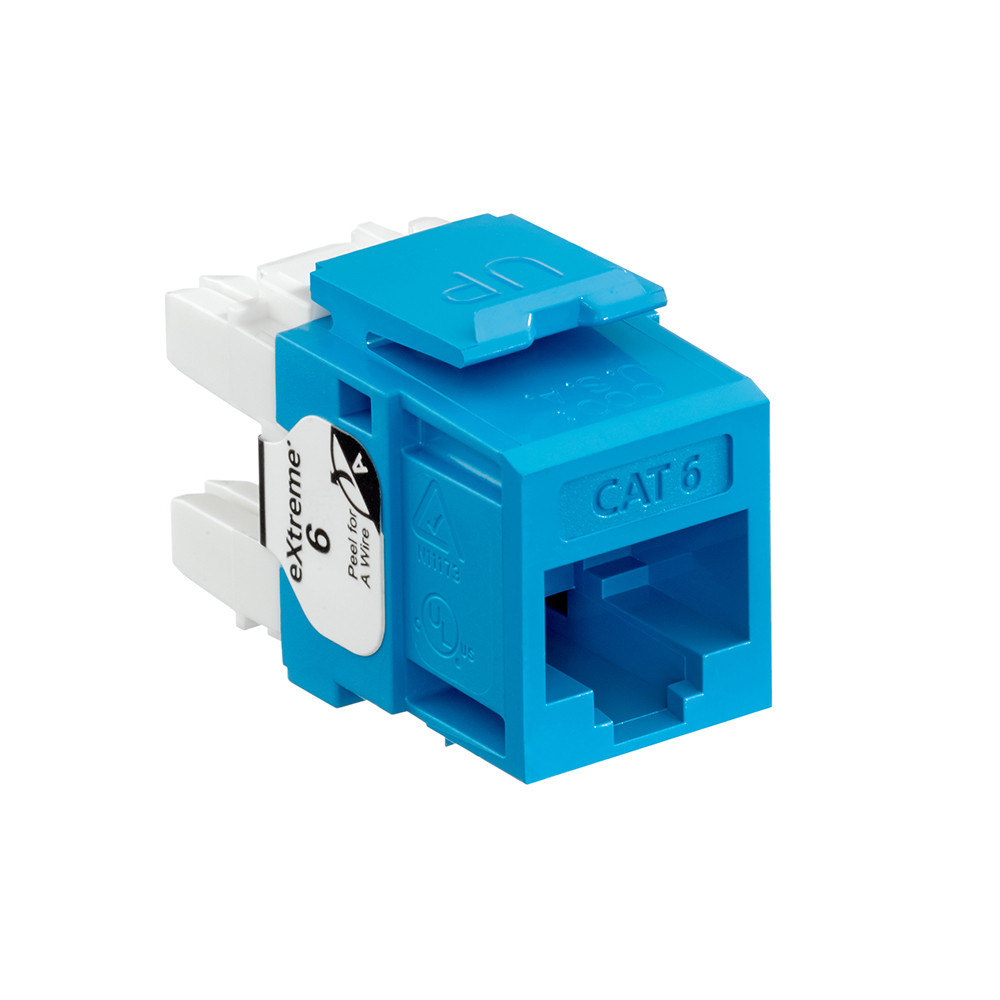

Leviton 61110-RL6 is an eXtreme Category 6 QuickPort keystone jack that provides a single RJ-45 female 8-position/8-conductor connection for QuickPort-compatible wallplate or panel installations. The module uses a 180-degree rear punch field with gas-tight IDC termination and patented Retention Force Technology, terminates 26–22 AWG solid and 24–22 AWG stranded conductors, supports multiple re-terminations, and exceeds IEEE 802.3bt PoE requirements up to 100 watts.

• Single-port Cat 6 QuickPort keystone jack with RJ-45 female connector and 8P8C configuration
• 180-degree rear punch field with gas-tight IDC termination; terminates 26–22 AWG solid and 24–22 AWG stranded conductors
• Patented Retention Force Technology, gold-over-nickel contacts, dual-layer T568A/T568B wiring label, supports up to 100 W PoE

Product Highlights

Single-port Cat6 QuickPort keystone jack with rear 110 punchdown, gas-tight IDC, retention force technology, and support for IEEE 802.3bt PoE up to 100 W.

Product InformationStandard Information

• Brand: LEVITON
• Manufacturer Part Number: 61110-RL6
• Country of Origin: United States

Technical Specifications

• Manufacturer: Leviton Mfg. Company, Inc
• Brand: Leviton
• Manufacturer Part Number: 61110-RL6
• ADI Part Number: LV-61110RL6
• Product Line: eXtreme
• Product Name: eXtreme 6+ Component-Rated Keystone Jack
• Product Type: Network Connector / QuickPort Connector
• Connector Type: RJ-45 female (8P8C)
• Network Category: Category 6 (Cat 6)
• Ports: 1
• Number of Positions: 8
• Number of Conductors: 8
• Termination Type: 110 punchdown / rear punch field (180-degree)
• Wiring: T568A/T568B (dual-layer wiring label)
• AWG Range: Terminates 26–22 AWG solid; 24–22 AWG stranded (26 AWG stranded may be re-terminated up to 5 times)
• Contact Plating: Gold plated over nickel (50 micro-in gold over 100 micro-in nickel)
• Contact Base Material: Phosphor bronze
• Contact Features: Gas-tight IDC jacks
• Body Material: High-impact fire-retardant plastic (UL94 V-0)
• Dimensions: 0.89 in H x 0.64 in W x 1.21 in D
• Weight: 0.02 lb
• Mounting Type: Wallplate / Panel / Surface or flush mounting
• Shielding: Unshielded (UTP)
• PoE Support: Exceeds IEEE 802.3bt up to 0.5 A per conductor (100 W) continuously; ETL verified for IEC 60512-99-002 supporting IEEE 802.3bt Type 4
• Standards and Certifications: TIA/EIA, ANSI/TIA-568-C.2, ISO/IEC 11801 Class E, cULus Listed, CSA, FCC Part 68 compliant, NEC Article 800, ETL verified IEC 60512-99-002
• Country of Origin: United States
• UPC: 78477144657
• Flammability Rating: Rated V-0 per UL 94
• Compatibility: QuickPort compatible; keystone type installations; compatible with devices using RJ-45 ports
