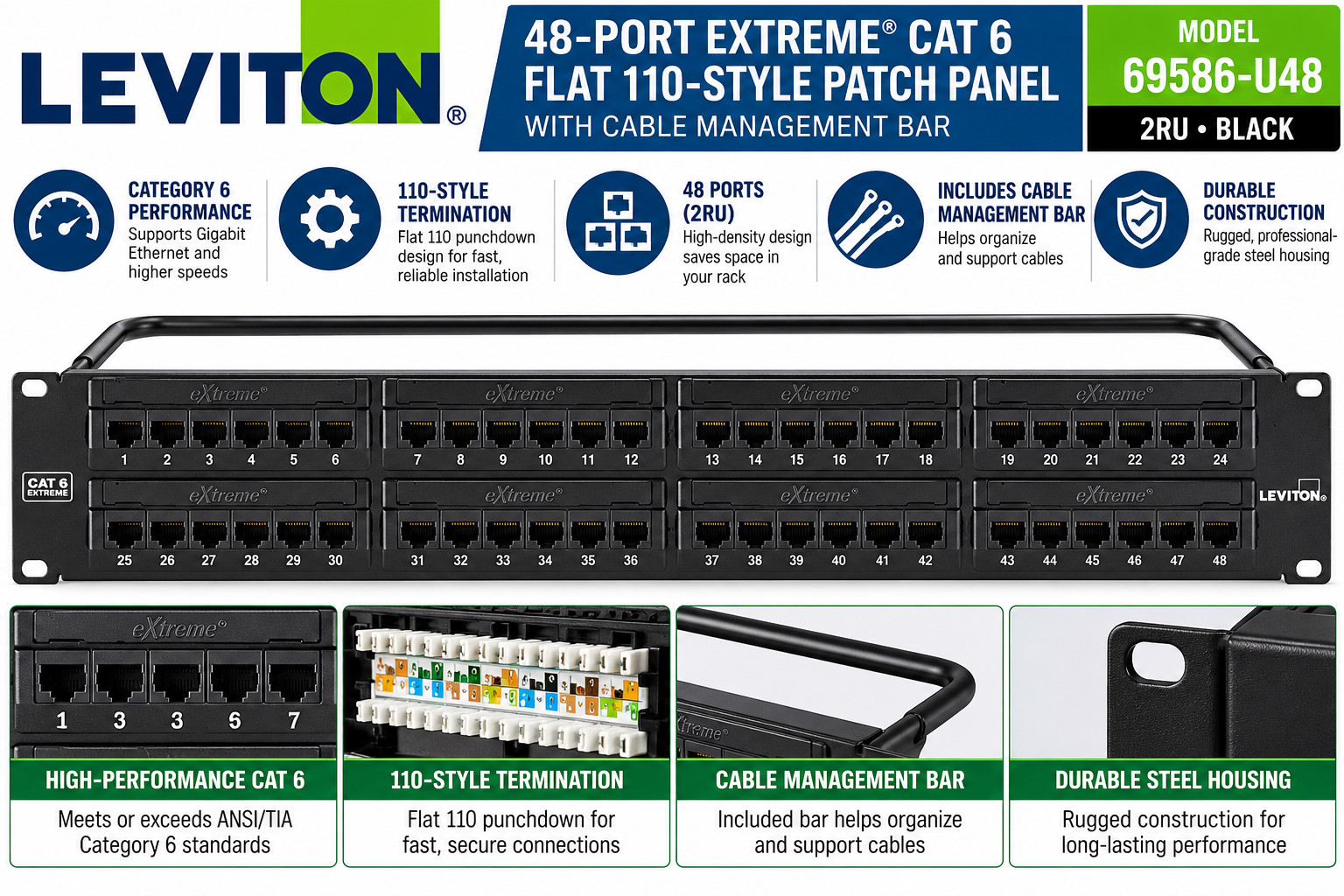

Leviton 69586-U48 eXtreme 6+ Cat6 48-Port 2RU 110-Style Patch Panel - Black
Build an organized high-performance network installation with the Leviton 69586-U48 eXtreme 6+ Universal CAT 6 Patch Panel. This professional-grade 48-port, 2RU patch panel is designed for installation in standard 19-inch racks and cabinets and supports high-bandwidth network applications including Gigabit Ethernet.
The installer-friendly design uses standard 110-style IDC terminations on the rear, while Leviton's Retention Force Technology helps protect contacts and maintain consistent connection performance over the life of the structured cabling system.
PRODUCT FEATURES
Genuine Leviton eXtreme 6+ patch panel
Model / MPN: 69586-U48
CAT 6 network patch panel
48 ports
2RU rack-mount configuration
Designed for standard 19 in. racks and cabinets
Flat panel design
110-style rear IDC terminations
Supports T568A wiring
Supports T568B wiring
Wiring cards included as part of panel design
Normal installation color sequence for easier termination
Leviton Retention Force Technology
Designed for high-megabit network applications
Suitable for Gigabit Ethernet applications
Color-coded front labeling
Easy port identification
TIA-606-A compliant labeling according to supplied manufacturer information
Grounding standoff for optional 26–22 AWG solid conductors
Designed to support multiple re-terminations
Cable management bar included
Black finish
Pack size: 1
PRODUCT SPECIFICATIONS
Brand: Leviton
Series: eXtreme 6+
Model / MPN: 69586-U48
Product Type: Network Patch Panel
Category: CAT 6
Number of Ports: 48
Rack Units: 2RU
Rack Compatibility: Standard 19 in. Racks & Cabinets
Termination Type: 110-Style IDC
Supported Wiring: T568A / T568B
Compatible Conductors: 26–22 AWG Solid
Application: Structured Network Cabling
Color: Black
Pack Size: 1
48-PORT CAT 6 CONNECTIVITY
The 69586-U48 provides 48 network ports in a professional rack-mount configuration, making it suitable for structured cabling systems where multiple Ethernet cable runs need to be centrally terminated and organized.
The eXtreme 6+ CAT 6 system is designed for demanding network applications including Gigabit Ethernet.
STANDARD 19-INCH RACK COMPATIBILITY
This patch panel is designed for mounting in compatible standard 19-inch network racks and cabinets.
Its 2RU configuration provides 48 ports while maintaining an organized rack-based network infrastructure.
110-STYLE IDC TERMINATIONS
Standard 110-style IDC terminations are positioned on the rear of the panel for straightforward cable termination.
The installation layout follows the familiar color sequence:
Blue • Orange • Green • Brown
The panel supports both T568A and T568B wiring schemes.
RETENTION FORCE TECHNOLOGY
Leviton's patented Retention Force Technology is designed to help protect contact tines from potential damage caused by insertion of 4-pin or 6-pin plugs.
This technology is intended to promote consistent connectivity performance throughout the service life of the system.
COLOR-CODED PORT IDENTIFICATION
Color-coded front window labeling helps technicians quickly identify and organize individual network ports.
According to the supplied manufacturer information, the labeling system is TIA-606-A compliant, supporting organized structured-cabling administration.
26–22 AWG SOLID CONDUCTOR SUPPORT
The rear IDC termination system is designed to terminate compatible 26–22 AWG solid conductors.
Always verify cable type, conductor size and CAT 6 system compatibility before installation.
OPTIONAL GROUNDING
A grounding standoff is incorporated into the panel for optional earthing/grounding where required by the installation.
Grounding should be completed according to applicable equipment instructions and network installation requirements.
CABLE MANAGEMENT BAR INCLUDED
A cable management bar is included to help organize and support network cabling behind the patch panel.
Proper cable management can help maintain an organized rack while reducing unnecessary strain on terminated network cables.
IDEAL APPLICATIONS
Suitable for compatible installations including:
Data centers
Server rooms
Network closets
Commercial buildings
Office networks
Structured cabling systems
IT infrastructure
Telecommunications rooms
Gigabit Ethernet networks
Rack and cabinet installations
PACKAGE INCLUDES
1 × Leviton 69586-U48 eXtreme 6+ CAT 6 48-Port 2RU Patch Panel - Black
1 × Cable Management Bar
Network cables, patch cords, rack/cabinet and installation tools are not included unless specifically stated.
IMPORTANT COMPATIBILITY NOTE
Please verify the following before ordering:
Model: 69586-U48
Category: CAT 6
Ports: 48
Rack Height: 2RU
Rack Type: Standard 19 in.
Termination: 110-Style IDC
Wiring: T568A / T568B
Conductor Compatibility: 26–22 AWG Solid
Color: Black
This is a passive network patch panel and does not function as an Ethernet switch or router.
DIMENSION NOTE
The supplied Home Depot specification table lists:
Depth: 6 in.
Height: 2.4 in.
Width: 6 in.
However, a 48-port 2RU panel designed for a standard 19-inch rack would not logically have an overall width of only 6 inches. Therefore, the supplied dimensional data appears inconsistent and should be verified from the actual product/package before using it for rack-fit or shipping calculations.
