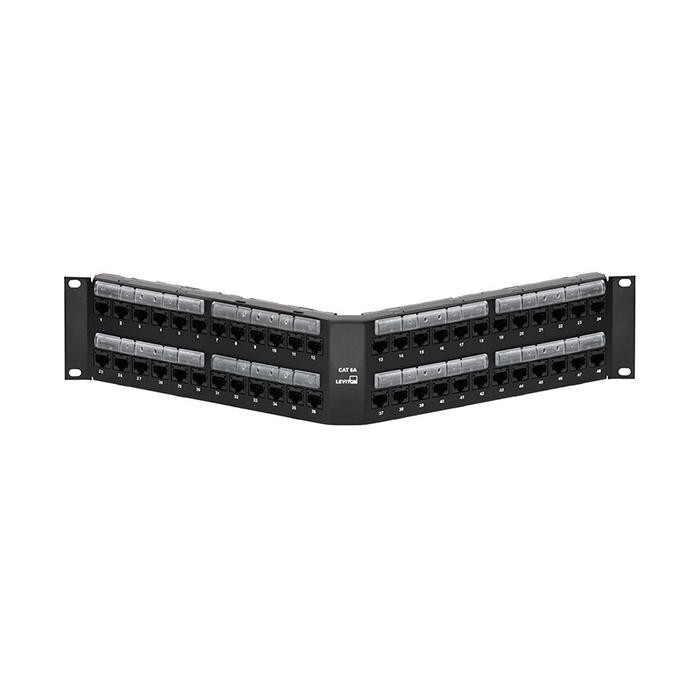

Leviton 6A587-U48 48-Port 2RU Patch Panel Cat 6A UTP Angled 110-Style Black Click Thumbnails to EnlargeDESCRIPTION
• Cat 6A UTP Angled 110-Style Patch Panels 48-Port 2RU Black.
APPLICATION
• Leviton Cat 6A UTP Angled 110-Style Patch Panels are designed for use with industry-standard 19-inch racks and cabinets for telecommunication room and data center applications. Patch panels exceed all component performance requirements in the ANSI/TIA-568.2-D standard, and the Class EA component requirements for the ISO/ IEC 11801-1 and EN 57013-1 standards from 1 MHz to 500 MHz to support the IEEE 802.3an standard for 10GBASE-T network performance. Patch panels feature industry-standard in-line IDCs and are component rated, which provides greater Cat 6A performance margins in link and channel field testing.
FEATURES
• Independently tested and verified by Intertek (ETL) for Cat6A component performance.
• In-line IDC field is consistent with traditional 4-pair 110-styleIDC terminations.
• Conductor retention feature holds individual conductors inplace during termination.
• Pair Separation Towers facilitate separation of Cat 6A conductors.
• Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position.
• Terminates up to 50% faster than Cat 6A panels requiring additional termination manager.
• Reversible card shows T568 A and B wiring schemes separately.
• Industry-standard port density: 24-port 1RU and 48-port 2RU.
• IDC stuffer caps provide termination strain relief.
CLASSIFICATIONS
• Brand Name: Leviton
PRODUCT SPECIFICATIONSPart Number 6A587-U48Product TypePatch Panel
Material16-gauge steel, painted black; PCB and plasticcomponents
ColorBlack
Number of Ports
48Panel PunchdownCategory
Cat 6AMounting
Mounts on 19-inch equipment racks
Labeling
Mag Lens
Size19 inch W x 4.82 inch D x 3.5 inch HShipping
