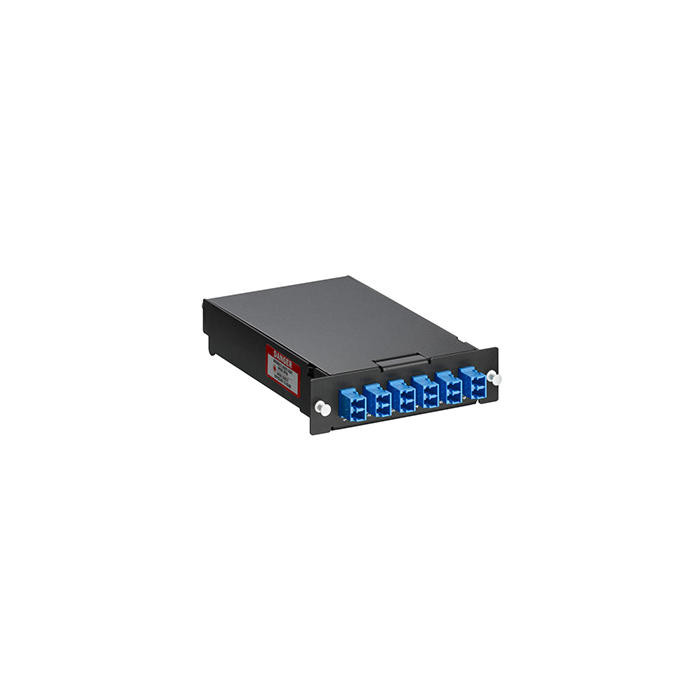

Leviton SPLCS-12L LC Duplex Singlemode SDX 12-Fiber Pigtail Fusion Splice Module Click Thumbnails to EnlargeDESCRIPTION
Leviton SPLCS-12LFiber Splice Module; LC Connector; OS2 Fiber; 12 Fiber; Blue; Dimensions: WxH: 4.49 x 7.11 in.; Anodized Aluminum
APPLICATION
SDX 12- and 24-Fiber Metal Modules protect and organizeheat-shrink fusion spliced fibers (up to 12 or 24 fibers)inside a fiber enclosure. The modular design enables fasterfield splicing and simple management of pigtails within thehousing. Splice modules eliminate the need for individualsplice trays within a fiber enclosure and provide optimalorganization and slack management of fibers. Typicalapplications include Wide Area Networks (WAN), campusenvironments, high-count riser buildings, governmentinstallations, data centers, and central offices.
FEATURES
• Module integrates fiber adapter bulkhead (12 or 24 fibers)and splice holders, eliminating the need of splice trays
• Offered in single-mode (OS2) UPC and APC andlaser-optimized multimode OM3 and OM4 fiber types
• Individual compartments provide slack storage and bendradius guides for respective backbone cable, 900 µmtight-buffer pigtails, and fusion-spliced fibers
• 12-fiber, color-coded 900 µm tight-buffer pigtails are onemeter and pre-loaded in module per specific configuration
• Modular design allows for ease of maintenance of individualspliced fiber and allows for scaling up without impactingexisting fibers
• Accessory kit consists of 40 mm heat-shrink style splicesleeves, tie wraps, and braided mesh sleeve
PRODUCT SPECIFICATIONSPart NumberSPLCS-12LProduct TypePre-Loaded Pigtail Fusion Splice ModuleConnector TypeLC DuplexEnclosure TypeOPT-XDimensionsH x W x D: 1.26 x 4.94 x 6.5 in.Fiber TypeSinglemodeFiber Count12Material14 ga. AluminumMountingRack, WallMounting StyleRackColorBlueWeight (lbs)2.00
