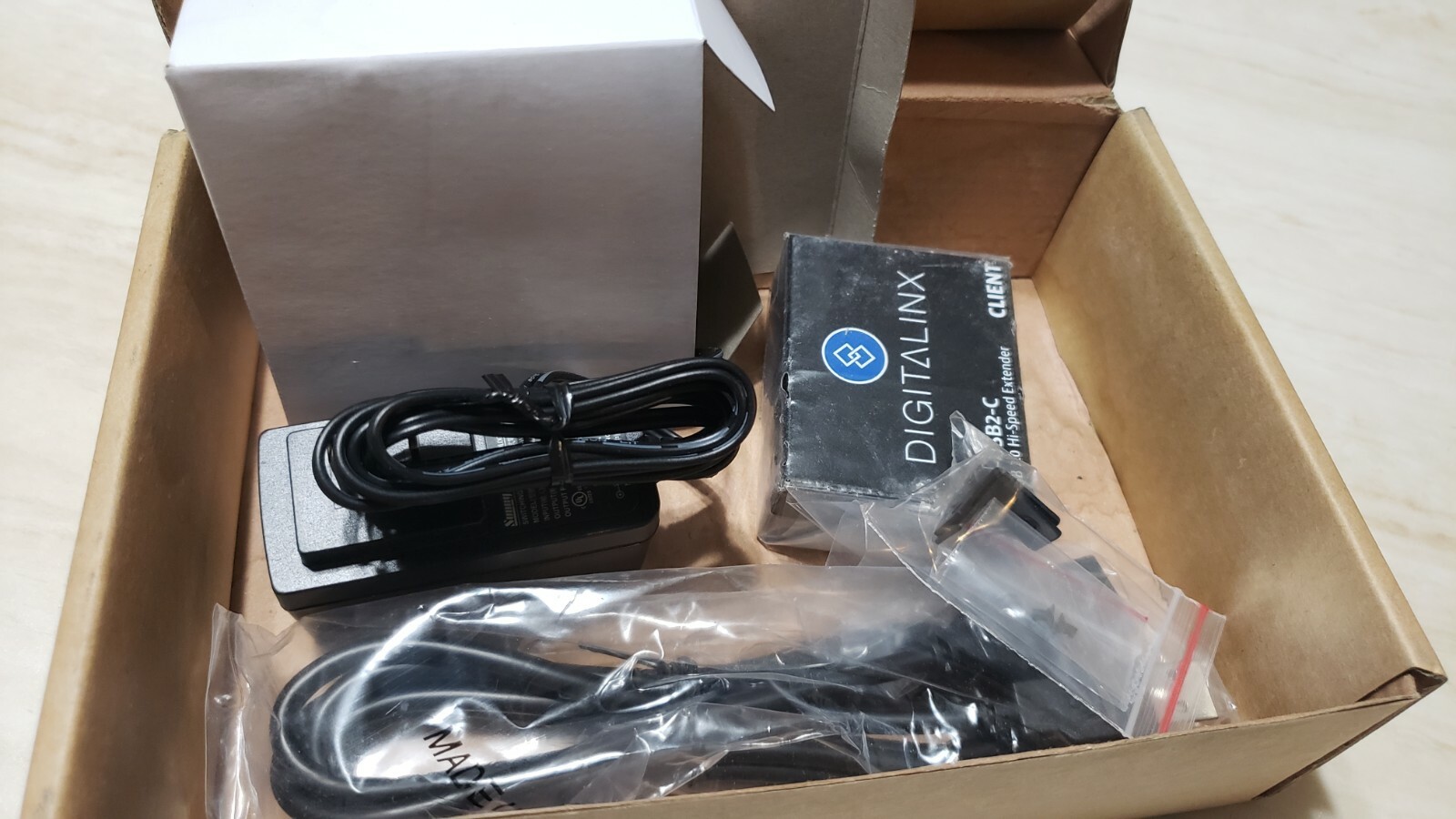

he Digitalinx DL-USB2 products will extend a Hi-Speed USB 2.0 signal (480 Mbps) up to 100 meters (328 feet). The modular extenders may be powered on either end for low power devices such as keyboards or mice. For remote devices which require more power, the client side extender will require to be powered.
Key Features
- Extends USB Hi-Speed (480 Mbps) up to 100 m (330 ft)
- Powered from client side extender
- Uses any Cat5e/6/6A twisted pair cabling
- Supplies 500mA to USB devices
- Can also be used to extend USB 1.1 signals
GeneralDevice TypeUSB extenderForm FactorExternalLocalizationUnited StatesNetworkingConnectivity TechnologyWiredData Link ProtocolUSB 2.0Data Transfer Rate480 GbpsMax Transfer Distance328 ftStatus IndicatorsPower, link/activityFeatures8KV ESD Protector, 4KV ESD ProtectorCompliant StandardsUSB 1.1, USB 2.0Expansion / ConnectivityInterfaces1 x USB 2.0 - Type A female
1 x network - RJ-45MiscellaneousCompliant StandardsUL, cUL, GS, FCC, RoHSPowerPower DeviceExternal power adapterVoltage RequiredAC 120/230 V (50 - 60 Hz)Power Consumption Operational4.3 WattDimensions & WeightWidth2 inDepth2.5 inHeight0.9 inDimensions & Weight (Shipping)Shipping Weight10.58 ozManufacturer WarrantyService & SupportLimited warranty - 2 yearsEnvironmental ParametersMin Operating Temperature32 °FMax Operating Temperature104 °FHumidity Range Operating20 - 90% (non-condensing)
