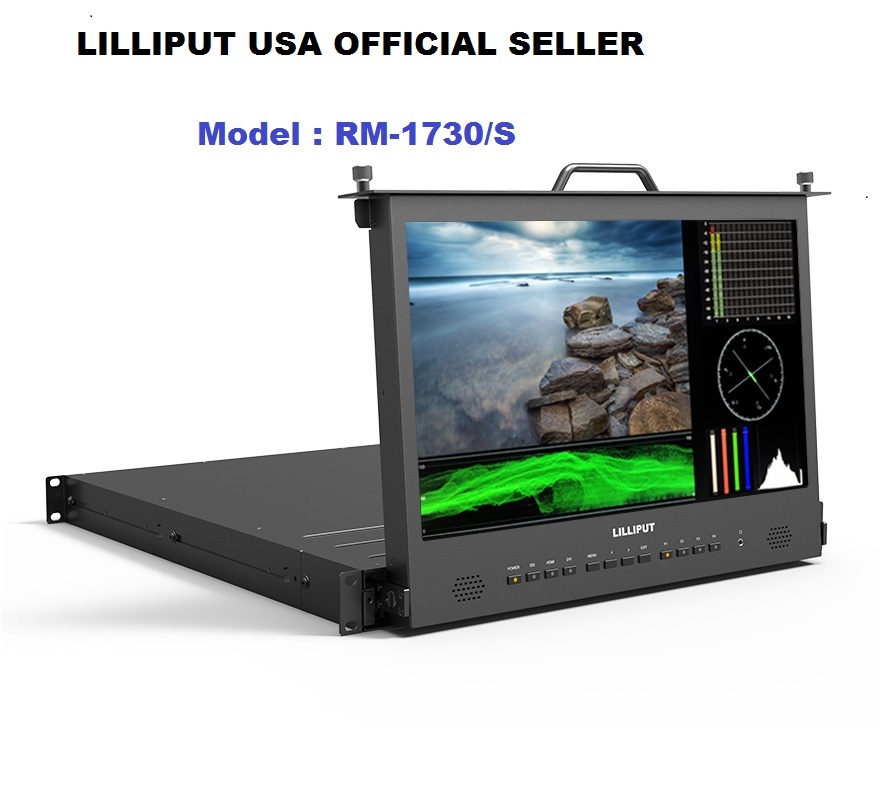

LILLIPUT 17.3" RM-1730S 1RU Pull-out Monitor 1920×1080 700:1 contrast 3G-SDI, HDMI, DVI, Audio & Tally inputs, SDI and HDMI cross conversion
1RU Pull-out Monitor
1920×1080, Full HD resolution,
300cd/m² high brightness,
700:1 high contrast,
1RU pull-out drawer type,
3G-SDI, HDMI, DVI, Audio & Tally inputs,
SDI and HDMI cross conversion
, Waveform PIP mode, vector,
Column (YRGB peak), time code.
DISPLAY:
Display Screen 17.3" IPS
Physical Resolution 1920×1080
Aspect Ratio 16:9
Brightness 300cd/m2
Contrast 700:1
Viewing Angle 178°/178°(H/V)
INPUT:
3G-SDI 1
HDMI 1
DVI 1
AUDIO 2 (L/R)
TALLY 1
OUTPUT:
3G-SDI 1
HDMI 1
AUDIO:
Speaker 2
Ear Phone Slot 1
SDI FORMAT
SMPTE-125M 480i(59.94) 1080i(60/59.94/50) style="box-sizing: border-box; color: rgb(51, 51, 51); font-family: "Amazon Ember", Arial, sans-serif; font-size: small; background-color: rgb(255, 255, 255);">SMPTE-292M style="box-sizing: border-box; color: rgb(51, 51, 51); font-family: "Amazon Ember", Arial, sans-serif; font-size: small; background-color: rgb(255, 255, 255);">SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-372M 720p(60/59.94/50)
1080i(29.97/25/24/23.98)
SMPTE-425M-AB
-Level A & Level B 1080p(60/59.94/50)
1080i(60/59.94/50)
ITU-R BT.656 576i(50)
HDMI FORMAT:
Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER:
Current 2.8A
Input Voltage DC 10-18V
Power Consumption ≤32W
ENVIRONMENT
Operating Temperature -20℃～60℃
Storage Temperature -30℃～70℃
DIMENSION
Dimension(LWD) 482.5×44×507.5mm
Weight 8.6Kg
What's in the package
: TALLY connectorx1; DC adapterx1
