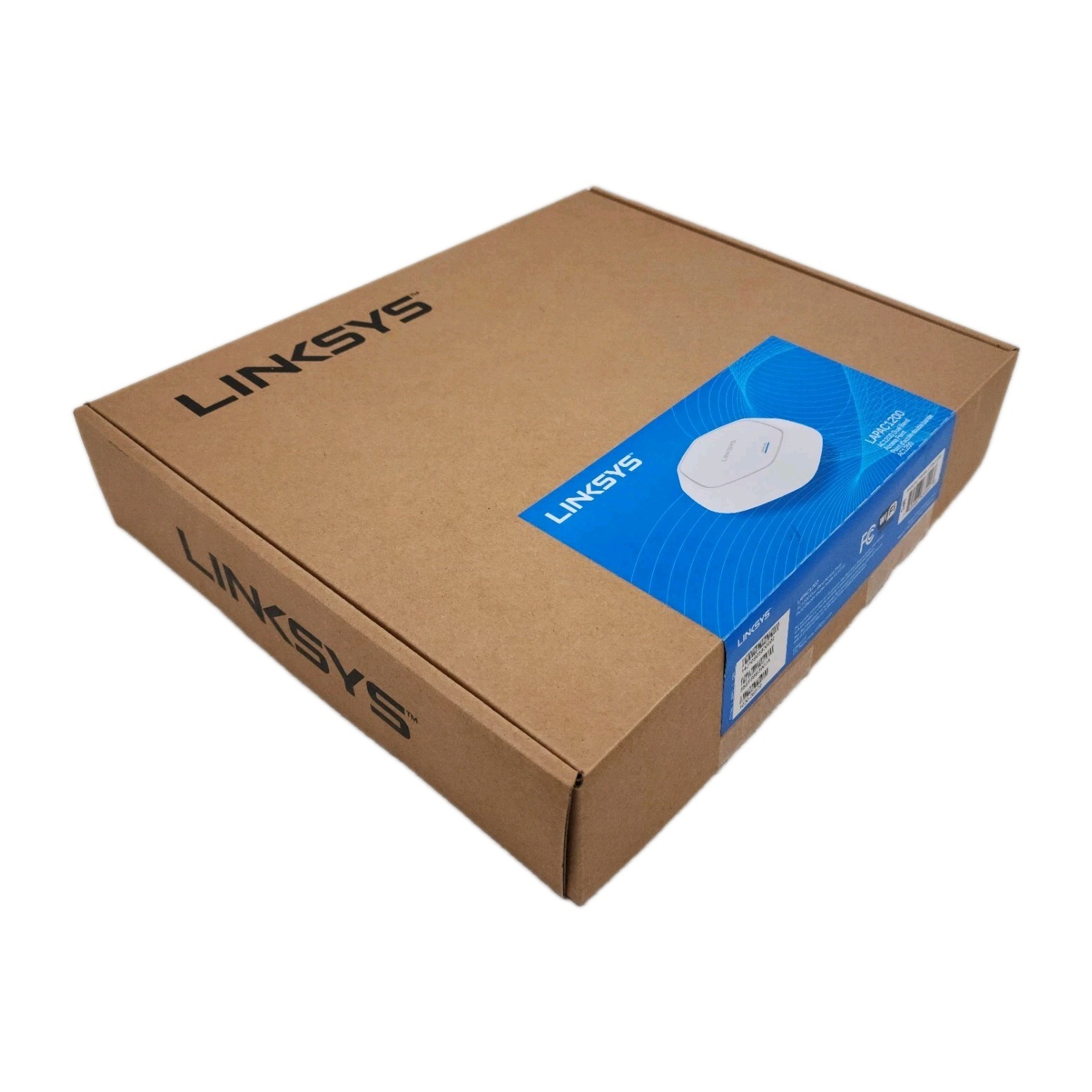

The Linksys LAPAC1200 is a business-class Wi-Fi 5 (802.11ac) dual-band wireless access point designed to expand and enhance wireless coverage in small to medium-sized office environments.

Core Technical Specifications

Feature

Specification

Wireless Standard Wi-Fi 5 (802.11ac Wave 2)

Data Transfer Rate Up to 1200 Mbps (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)

Ethernet Port 1x Gigabit LAN (10/100/1000 Mbps)

Power Input 802.3at Power over Ethernet Plus (PoE+) or 12V/1.5A DC

Antennas Internal 2x2 MIMO (1.7 dBi @ 2.4GHz, 1.9 dBi @ 5GHz)

Key Features

Integrated PoE+: Power and data are supplied through a single Ethernet cable. This removes the need for nearby AC outlets and allows flexible ceiling or wall mounting.

Workgroup Bridge & WDS: The device can operate as a standard access point, a Wireless Distribution System (WDS), or a workgroup bridge to link separate wired networks wirelessly.

Single Point Control (Clustering): Simplifies management by allowing you to configure and handle multiple access points simultaneously from a single interface.

Captive Portal: Provides a secure, customizable guest Wi-Fi login page. This helps businesses manage hotspot access and protect internal data.

Business-Class Security: Includes WPA/WPA2 encryption, 802.1X Supplicant Authentication, MAC-based Access Control Lists (ACL), Rogue AP Detection, and SSID-to-VLAN mapping.

Default Credentials

If you are setting up or resetting the unit, use these default settings to access the web management interface:

Default IP Address: Assigned by DHCP. If no DHCP server exists, it defaults to 192.168.1.252.

Default Username: admin

Default Password: admin
