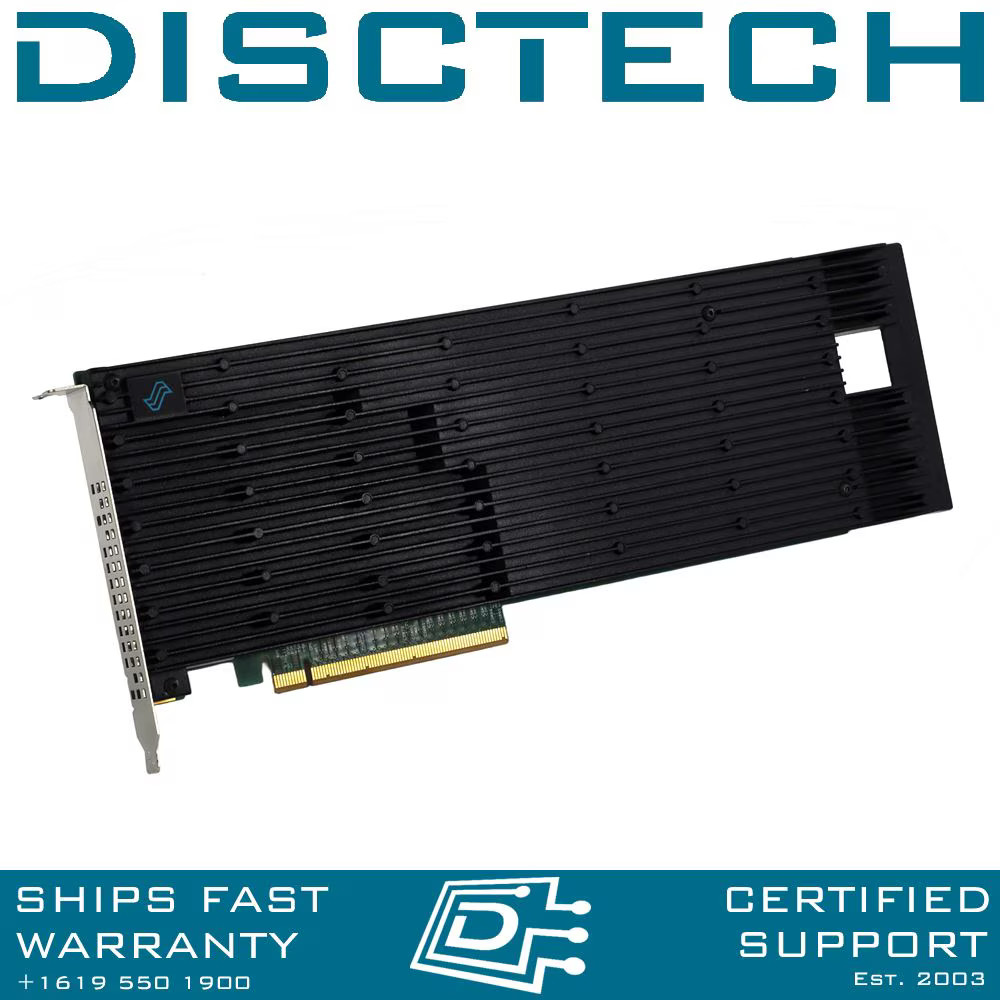

Liqid Element LQD4500 8-Port M.2 NVMe SSD to PCIe 4.0 x16 Adapter Card AIC with PEX88048 Controller FHFL - Open BoxNew Open Box

Liqid Element LQD4500 8-Port M.2 NVMe SSD to PCIe 4.0 x16 Adapter Card / 24 GB/s / 4m IOPS / AIC / PEX88048 Controller / FHFL / Full-Height Full-Length / Up to 32.7TB / Bifurcation Supported / IO Accelerator / TCL 3D NAND / - New Pull

Unleash applications from their data restraints with the LQD4500 Gen-4 PCIe AIC.

The Liqid Element LQD4500 PCIe Add-in-Card (AIC), aka the “Honey Badger for its fierce, lightning fast data speeds, delivers Gen-4 PCIe performance with up to 4m IOPS, 24 GB/s throughput, ultra-low transactional latency of just 20 µs, in capacities up to 32TB.

In data-driven environments, unlocking the full potential of data performance is paramount. Introducing the Liqid Element LQD4500 IO Accelerator — an advanced storage solution engineered to shatter performance barriers and redefine what’s possible. Designed to deliver uncompromised data IO performance and responsiveness, the LQD4500 empowers you to accelerate results.

With the capability to deliver an astounding 4 million IOPS of random read performance, coupled with over 26 GB/s of read throughput, it surpasses conventional SSDs, providing the robust foundation your data-intensive applications demand. The ultralow transactional latency of just 10 microseconds ensures that every data interaction occurs at the speed of now.

Storage demands are experiencing exponential growth, and with capacities reaching up to a remarkable 32 terabytes, the LQD4500 equips you to handle vast datasets without compromise. Whether you’re navigating complex simulations, conducting expansive analytics, or managing rich multimedia content, the LQD4500 offers substantial headroom.

Key Features

•  Ultra-High Performance
•  PCIe 4.0 x16 Interface
• NVMe 1.3 Protocol
• High Capacity, up to 32 TB
• Single Width FHFL
• Plug-n-Play Compatibility
• UEFI Boot Support
• Enterprise Grade Reliability
• Power Loss Data Protection
•  Active Thermal Throttling
• Active Power Management
• Advanced ECC and Data Protection
• Advanced Error Recovery
• Active Telemetry Monitoring
• Low Overhead Architecture
• No Host CPU or DRAM Off Load
• Software or OS RAID Supported Data LQD4500 IO AcceleratorRaw CapacityUp to 32TBNAND TypeTLC 3D NANDRead BandwidthUp to 26GB/s ThroughputWrite BandwidthUp to 13GB/s ThroughputRandom 4K Read IOPSUp to 4M IOPSRandom 4K Write IOPSUp to 900K IOPSMin Read Latency70μsMin Write Latency10μsProtocolNVMe 1.3Bus InterfacePCI Express 4.0 x16EnduranceUp to 61.53 PBW / 2 DWPD*Security256-bit AES Data EncryptionWeight20 ozWarranty3 years or maximum endurance usedForm FactorFHFL Single WidthOperating TemperatureOp: 0 to 55°C / Non-Op: -40 to 75°CPowerActive: 12VDC / ~75WAirflowMin 400 LFMHumidity5% to 95% (non-condensing)Altitude0 ft to 10,000 ftOperating SystemsWindows, RHEL, SLES, CentOS, Solaris, SUSE, VMwareAgency & SafetyUL, CB, CE, CCS, KCC, HF, JEDEC, CNS, VCCI, FCC Part 15, Subpart B, and CISPR 32 for a Class A Part Numbers: WDFFP 0WDFFP
