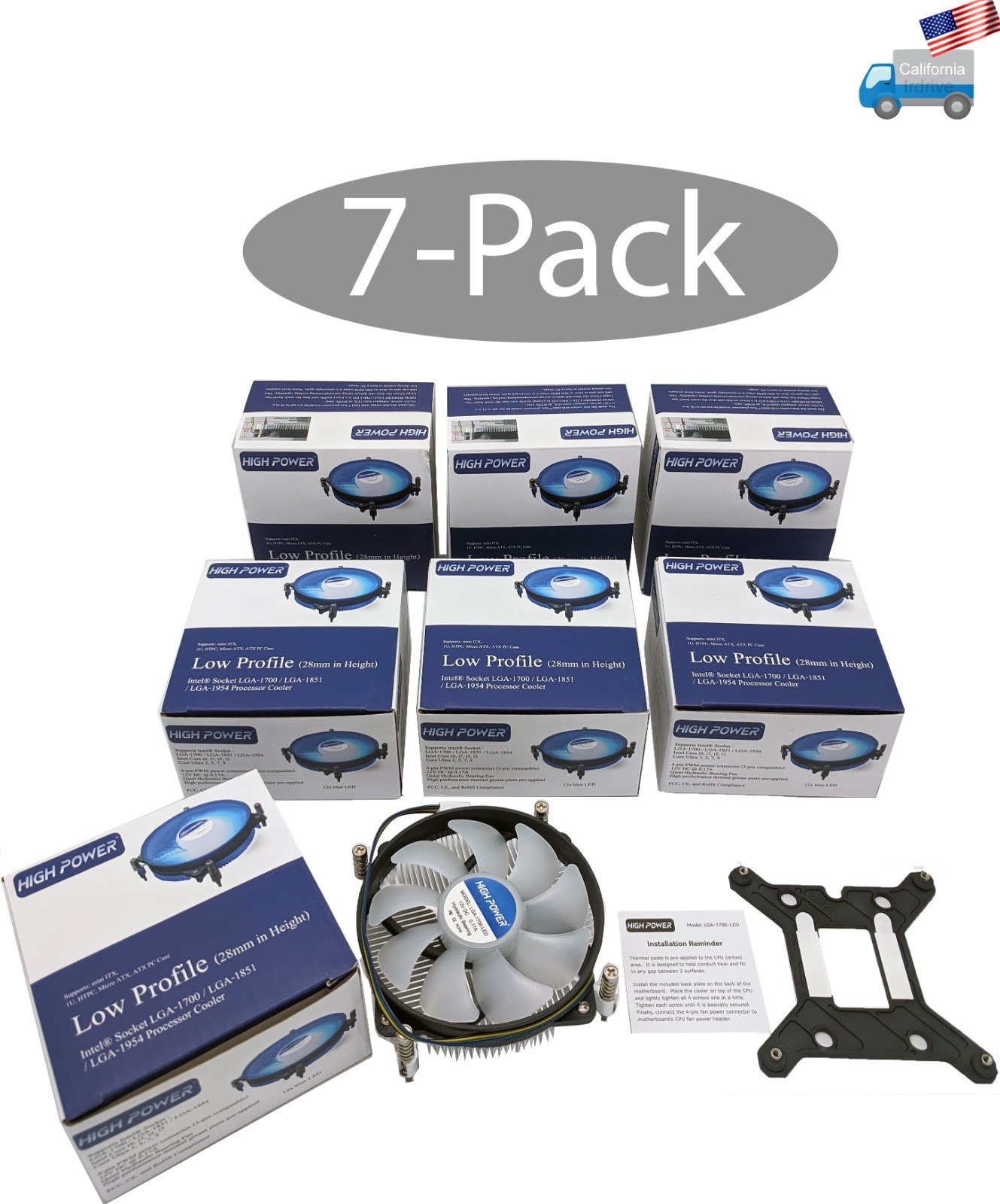

Lot7 HIGH POWER® Blue LED Low Profile Intel Socket 1700 i7/i5/i3/i9 CPU Cooler
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Lot7 HIGH POWER® Blue LED Low Profile Intel Socket 1700 i7/i5/i3/i9 CPU Cooler
Price: US $110.00
We are located in Southern California. We ship daily except Saturdays, Sundays, and national holidays.Your package will be shipped with a tracking number.
NEW7-pack:HIGH POWER®Model: LGA-1700-LEDLow-Profile Intel LGA-1700 CPU Cooler with Quiet BLUE LED 95mm Over-sized Powerful 9-Blade Cooling FanCompatible with 1U/ 2U rack-mount server chassis,standard ATX, micro ATX, and mini ITX PC cases.



Total height of just 28mm


The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX caseHIGH POWER® LGA-1700-LED has a height clearance of only 28mm to fit in mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised. Thermal paste is factory pre-applied and the installation is very simple and secure. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet and consuming less than 1W. Noise level remains to be acceptably low during normal system operation.
  • Supports Intel Core i9, i7, i5, i3 processors in socket LGA-1700 motherboards
  • Supports Intel Ultra 5 225, Ultra 7 265 in sockets LGA-1851 motherboards. Supports Intel Core Ultra 3, 5, 7, 9
  • 4pin PWM power connector (compatible with 3pin)
  • Low profile: only 28mm from processor contact point to the top of the fan
  • Secure 4-screw mount vs less reliable snap-on mount
  • Low power consumption of only 1.3W, for example: under normal CPU work load with fan running at 1737RPM
  • TDP: 78W
  • Quiet hydraulic bearing style="font-size: medium; font-weight: 400;">Compatible CPU: LGA-1700 / LGA-1851 / LGA-1954
    Rated Voltage: DC12V
    Rated Current: 0.17A± 10% (2-Watt) with fan running at 2544RPM (80% PWM)
    Product Size: 95mm x 95mm x 37mm (28 mm from CPU contact point to top of the fan)
    Heat Sink Material: Aluminum
    Fan Dimension: 95 x 95 x 15 mm
    Fan Speed: 800 - 3000 RPM ± 10%
    Fan Air Flow: 14.1 - 42.5 CFM ± 10%
    Fan Air Pressure: 0.84 - 2.52mm H2O ± 10%
    Fan Bearing Type: Hydraulic
    Fan Life Expectancy: 40,000 hours
    Fan Noise Level: 18 - 28.44 dBA
    Connector: 4-pin PWM (backward compatible with 3-pin)
    Cable Length: 200mm
    TDP: 78WOperating Temperature Range: -10 °C ~ +70 °C (-50 °F - +158 °F)
    Net Weight: 170gStore Policy & About us(More on Shipping/ Return Policy / None-USA International Customers)
