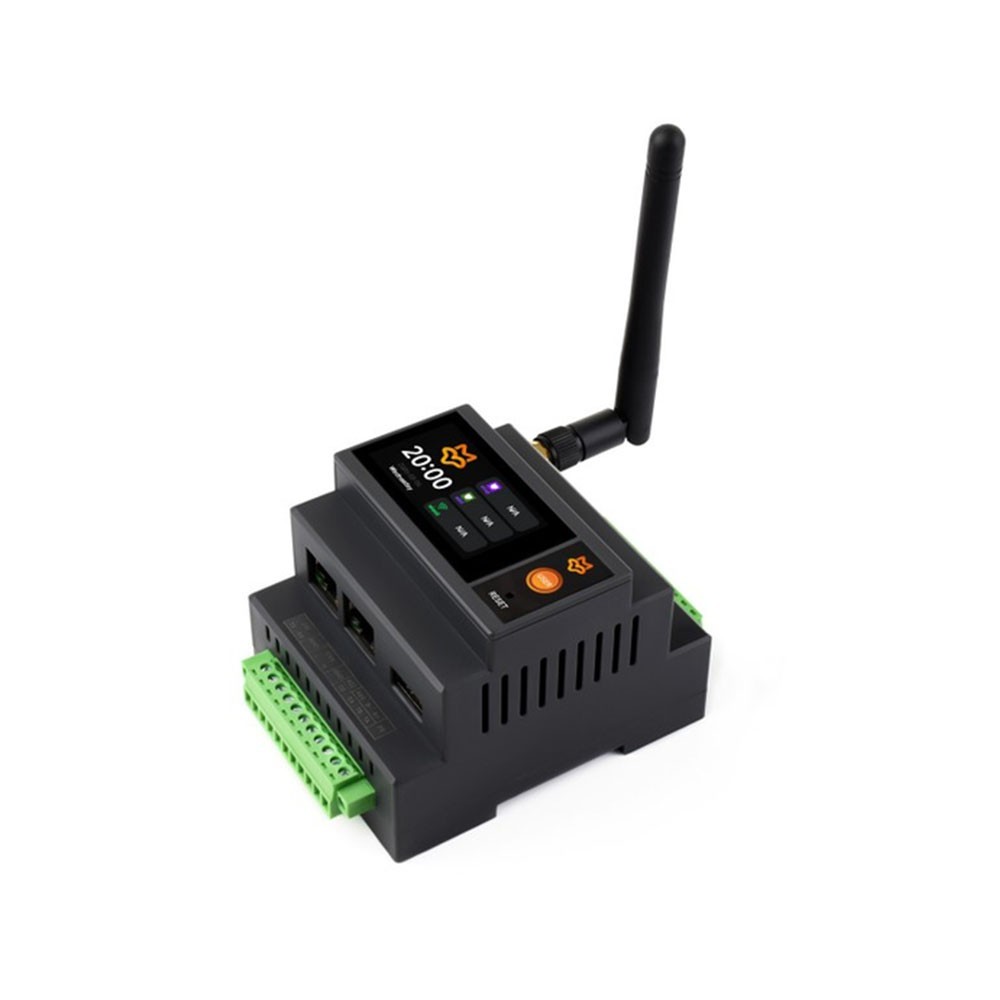

About usWe are an original equipment manufacturer that integrates solutions and products. Welcome to discuss cooperation! +852 5360 7032Product DescriptionLuckfox Lyra Programmable Logic Controller, Based On RK3506B With Triple-Core ARM Cortex-A7, Onboard 1.9inch LCD Touchscreen And Dual 100Mbps Ethernet Ports, Optional PoE Function Luckfox Lyra PLC
PLC Based on Luckfox Core3506, Supports Custom Development
Extensive I/O Interfaces and Robust Performance for Industrial Automation
Version Options Specifications Processor RK3506B CPU Triple-core ARM Cortex-A7 (1.2 GHz) RAM Onboard 512MB DDR3L Storage eMMC (8GB) Display 1.9inch LCD touchscreen, 170 × 320 pixels USB USB OTG2.0 × 1
Extended USB HOST2.0 × 1 via HUB Ethernet 10/100Mbps Ethernet port × 2 Wireless Connectivity Onboard 2.4 GHz Wi-Fi 6 / Bluetooth 5.2 / BLE CAN CAN × 1 Serial Interfaces RS232 × 1
RS422/RS485 × 1 (Shared port, selectable by wiring) Relay Channels 2 Relay Contact Form Normally Open (NO) × 1
Normally Closed (NC) × 1 Relay Contact Rating ≤10A 250V AC or ≤10A 30V DC Buttons Custom button × 1 (Used for firmware update by default)
RESET button × 1 Power Input USB-C input: 5 V Screw terminal power input: 7–24 V DC (wide input voltage range) PoE input (for PoE Version only): compatible with IEEE 802.3af PoE Standard Extensive Peripheral Interfaces
Supports wired and wireless connectivity, Provides RS232 / RS422 / RS485 / CAN / USB and Other Interfaces, Suitable for Data Collection and Reporting, Device Linkage Control, and Protocol Conversion
Linux-Based System
Comprehensive Software Ecosystem - Supports Multiple Languages
and Optional Installation of Node-RED, OpenPLC, and Other Software
Web-Based Management
Access the device management interface via a browser for quick system configuration
Remote Management And Maintenance
Multiple built-in remote access networking solutions enable remote management and debugging
Application Scenarios
Industrial Control
Smart Home
Smart Agriculture
Application Examples Product Showcase What's On Board
- 1.9inch LCD touch display
170 × 320 resolution, 262K colors - USER button
Used for firmware update by default; Press it when powering on or resetting to enter download mode - RESET button
Press with a SIM ejector tool (NOT Included) to reboot the system - USB Type-A HOST port
- Industrial screw terminal
Includes RS232, RS422/RS485, and CAN interfaces - 100 Mbps RJ45 Ethernet port with LED indicators
- 100 Mbps RJ45 Ethernet port with LED indicators
Standard Version: No PoE support;
PoE Version: Supports power input via Ethernet cable from a PoE switch - Termination resistor switches
Lever the switch down to enable the 120Ω termination resistor for the corresponding interface
- Debug serial port
- Expansion I2C interface
Shares the I2C bus with the built-in RTC and temperature & humidity sensor - Expansion I/O interface
- USB Type-C OTG0 port
for power input and firmware flashing - Antenna connector
- Relay and DC power screw terminal
Includes 2-ch relay channels and a 7~24 V DC wide-range input
Pinout Definition Outline Dimensions
