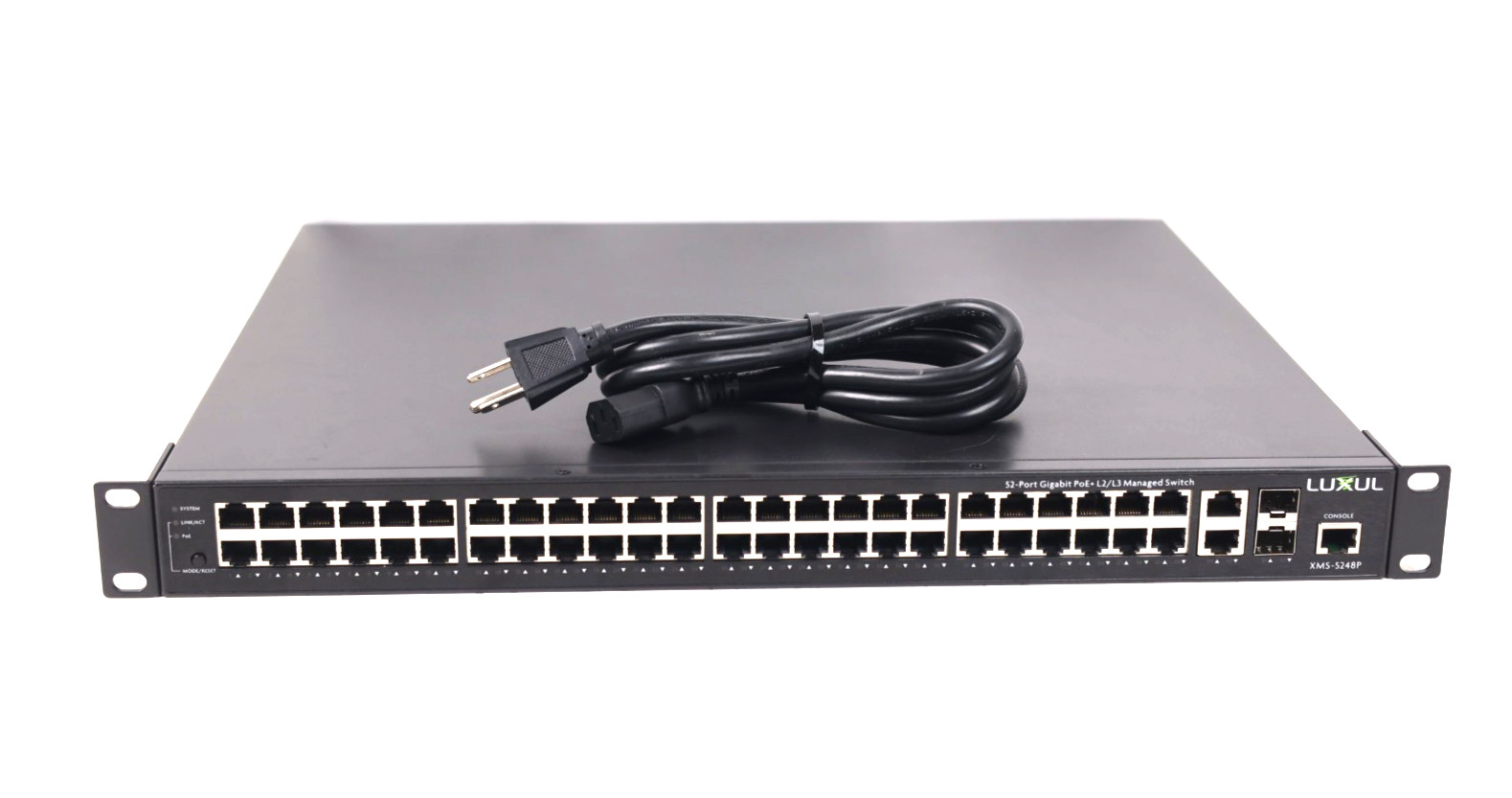

Luxul Gigabit PoE+ Switch XMS-5248P L2/ L3 Managed

Ships Worldwide

(Customs, taxes, and duties may apply)

This looks great and works perfect.

The Luxul 52-Port Gigabit PoE+ L2/L3 Managed Switch (XMS-5248P) is an excellent choice for expanding your network when using PoE-enabled devices such as Touch Panels, VoIP, IP cameras and Wireless Access Points. The 52-port Gigabit switch includes 48 PoE+ ports, 2 Gigabit RJ-45 ports and two Gigabit SFP expansion ports. With PoE+, you can use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices, with a total power budget of 740 Watts. The advanced Layer 2/Layer 3 features and simple-to-use management interface helps to optimize network PoE+ Ports (740W Power Budget)

• Features:

  • PoE Self-Healing with auto-recovery and power scheduling
  • 48 Gigabit 802.3af/at PoE+ Ports (740W Power Budget)
  • Two Gigabit RJ-45 Ports
  • Two Gigabit SFP ports
  • 104 Gbps Switching Capacity
  • Full Layer 2/3 Support
  • 802.1Q VLAN (with Trunking)
  • QoS Support
  • Redundant Power Supply (RPS) Capable
  • Plug-and-Play Installation with Intuitive Management
  • Simple Power Management of PoE-Enabled Devices
  • Standard 1U 19" Rack-Mount Enclosure
  • Three Year Limited Warranty
  • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)

• Specifications:

  • Protocols and Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af/ at ,IEEE 802.3x ,IEEE 802.1P ,IEEE 802.1Q ,IEEE 802.1X ,IEEE 802.1D STP, 802.1Interface Options RJ-45
  • 10 Base-T: Cat.5 UTP /STP
  • 100 Base-TX: Cat.5 UTP /STP
  • 1000Base-T: Cat.5e or Cat.6 UTP/STP
  • Gigabit fiber uplinks on SFP ports
  • Cable Recognition for Straight-through or Crossover CablesVLAN
  • 802.1Q max 4094 VIDs & VLAN Trunking; Supports 1 Management VLAN
  • Surge Protection The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 Port, Surge 6KV)Quality of Service (QoS)
  • 4 Queues per port
  • Queue handling: Strict, Weighted Round Robin (WRR), Strict+WRR, and Equal
  • CoS based on DCSP, 802.1P and Port Based
  • Priority Queues
  • Port based bandwidth controlNetwork Data Transfer Rate
  • Ethernet: 10Mbps (Half-duplex)
  • Ethernet: 20Mbps (Full-duplex)
  • Fast Ethernet: 100Mbps (Half-duplex)
  • Fast Ethernet: 200Mbps (Full-duplex)
  • Gigabit Ethernet: 1000Mbps (Half-duplex)
  • Gigabit Ethernet: 2000Mbps (Full-duplex)LED Per Unit: Power, System
  • Per Port: Link/Activity
  • Power Budget: 740W
  • Max Power Consumption: 992W
  • Power Supply: Internal Switched Power,AC 100-240V, 50-60Hz input
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (Non-condensing)
  • Dimensions L xWxH in. (mm): 17.4"x14.75"x1.75" (442 x 375 x 44.5)
  • Weight lbs (kg): 10.8 (4.9)
  • Certifications: FCC, CE, RoHS
