Overview

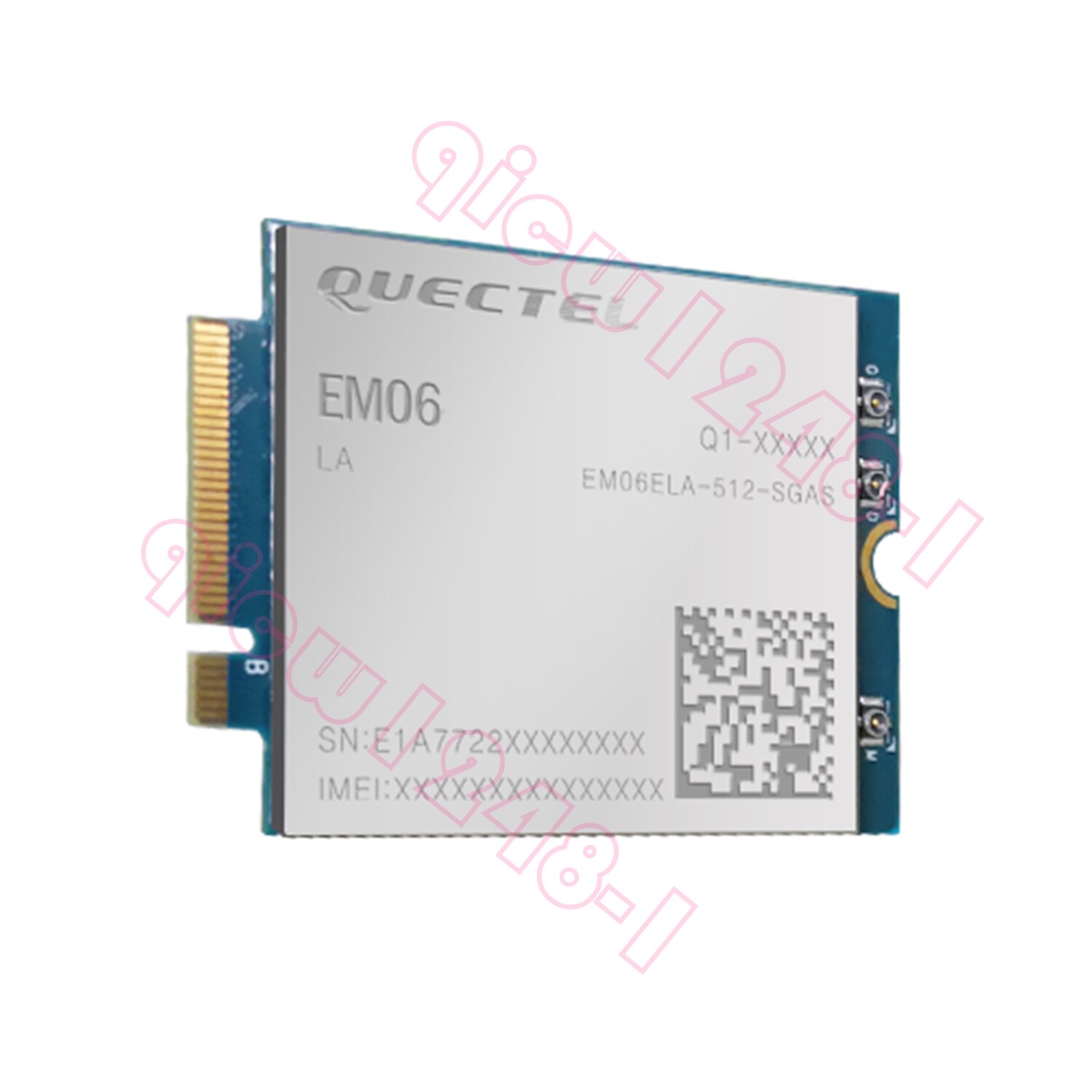

Quectel EM06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 300Mbps downlink and 50Mbps uplink.

Designed in the M.2 form factor, EM06 contains 3 variants (EM06-E, EM06-J and EM06-A) for different target regions and these variants nearly cover all the main stream carriers worldwide.

EM06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such asindustrial router, home gateway, set top box, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, videosurveillance and digital signage, etc.

Key Benefits

● LTE-A Cat 6 module with M.2 form factor, optimized for M2M and IoT applications
● Support LTE-A carrier aggregation
● Worldwide LTE-A and UMTS/HSPA(+) coverage
●Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
● Feature refinements: supports DFOTAand DTMF
●MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Specification

Frequency

EM06-E

EM06-A

EM06-J

LTE

LTE-FDD

2×CA

B41+B41

B1+B1/B8/B18/B19/B26/B28; B3+B3/B8/B18/B19/B26/B28; B41+B41

Embedded GNSS

Y

Y

Y

PCIe InterfaceOptionalOptionalOptional

USB 3.0

YYY

Region

EMEA/ APAC①/ Brazil

North America

Japan

Certification

Carrier:
Telstra/ Deutsche Telekom*
Regulatory:
GCF/ CE/ NCC/ RCM/ ICASA
Others:
WHQL

Carrier:
Verizon/ AT&T/ Sprint
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL

Notes:
①APAC excludes Japan and CMCC.
②LTE-FDD B29 and B32 support receiving only, and are only for secondary component carrier in 2×CA.

*Under Development.
