-Technical Specifications-

Applicable Networks 2.5G Server Network Interface Card

Primary Controller I226V

Bus Type M.2 A+E KEY

Media Interface 1x RJ45 Copper Cable

Transmission Rate 2.5G/1000/100Mbps

Network Topology 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE

IEEE 802.3bZ, IEEE 802.3, IEEE 802.3X, IEEE 1588, IEEE 802.3az

Energy Efficient Ethernet (EEE)

Management Features IPMI delivery via SMBus or NC-SI, iSCSI boot, Wake-on-LAN (WoL), PXE remote boot, VLAN filtering

Operating System Windows 10 32/64-bit,Windows 10 v1809 32/64-bit or later, available M.2 A+E KEY slot

-Firmware Environment-

Certifications: FCC, CE, RoHS

Operating Temperature: 0~55 °C (32~131°F)

Storage Temperature: -40~70 °C (-40~158°F)

Storage Humidity: 90% non-condensing relative humidity at 35°C

-Application Areas-

Any mobile device, desktop, workstation, value server, or industrially designed network equipment with stringent space I226-V Controller] Equipped with an I226-V Ethernet controller, this 2.5G network card supports multi-speed auto-negotiation transmission at 2.5G/1G/100M/10Mbps. The IEEE 802.3 standard ensures smooth and efficient data transfer in daily, server, and industrial applications.

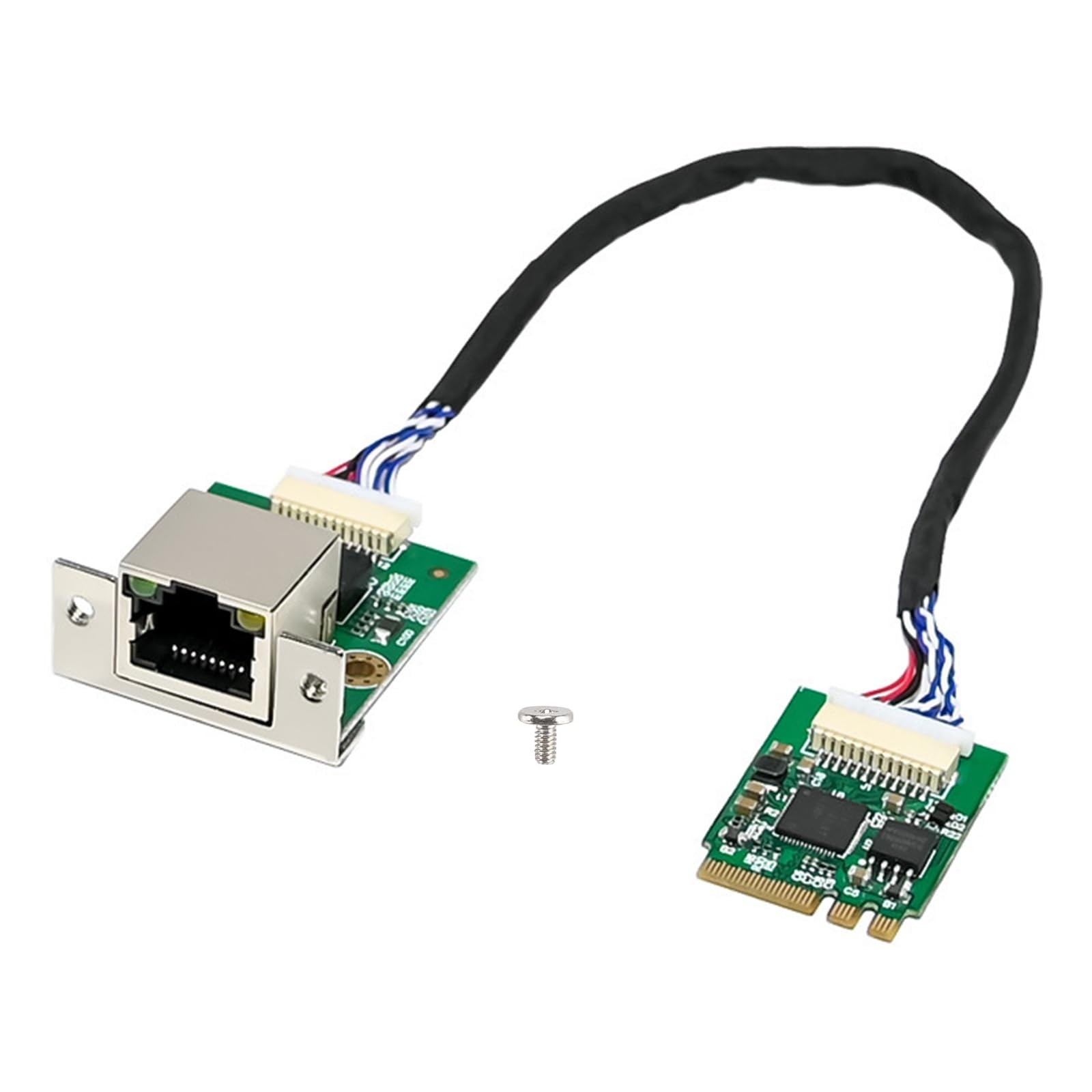

[Space-Saving Design] Features a compact M.2 A+E key board (22x30mm) paired with a standalone RJ45 module (33x30x15mm), ideal for space-constrained devices—including mini PCs, industrial computers, budget servers, and workstations. The 20.8cm flexible cable simplifies installation without occupying additional chassis space, making it perfect for upgrading space-limited equipment.
[Multi-System Compatibility] This network card supports diverse systems: ESXi, OpenWRT, PVE, DSM, Windows, Ubuntu, CentOS, and more. It seamlessly integrates with software routers, virtualized servers, industrial control systems, and home labs.
[Industrial-Grade Stability] Engineered for harsh environments, supporting TSN, 9.5KB jumbo frames, and IEEE 1588 protocol. Wide operating temperature (0~55°C) and storage temperature (-40~70°C) ensure long-term stable operation, ideal for industrial-grade, all-weather server deployments.
[Practical Features] Includes user-friendly functions: Wake-on-LAN (WOL), PXE remote boot, VLAN filtering, and TCP/UDP checksum offloading. The package includes the network card, driver documentation, and user manual, enabling quick and easy installation for both beginners and professionals.
[Important Notice] Before placing an order, please confirm your motherboard slot meets the following requirements: M.2 specification, NGFF interface, A or E key, 2230 size, and support for non-WiFi modules. Only when these conditions are met can this M.2 A+E key-to-2.5G Ethernet adapter be used.
[Quick start] Driver download: reminder] Please install the driver before using this product, otherwise it will not work. The driver is in the quick start tutorial.
