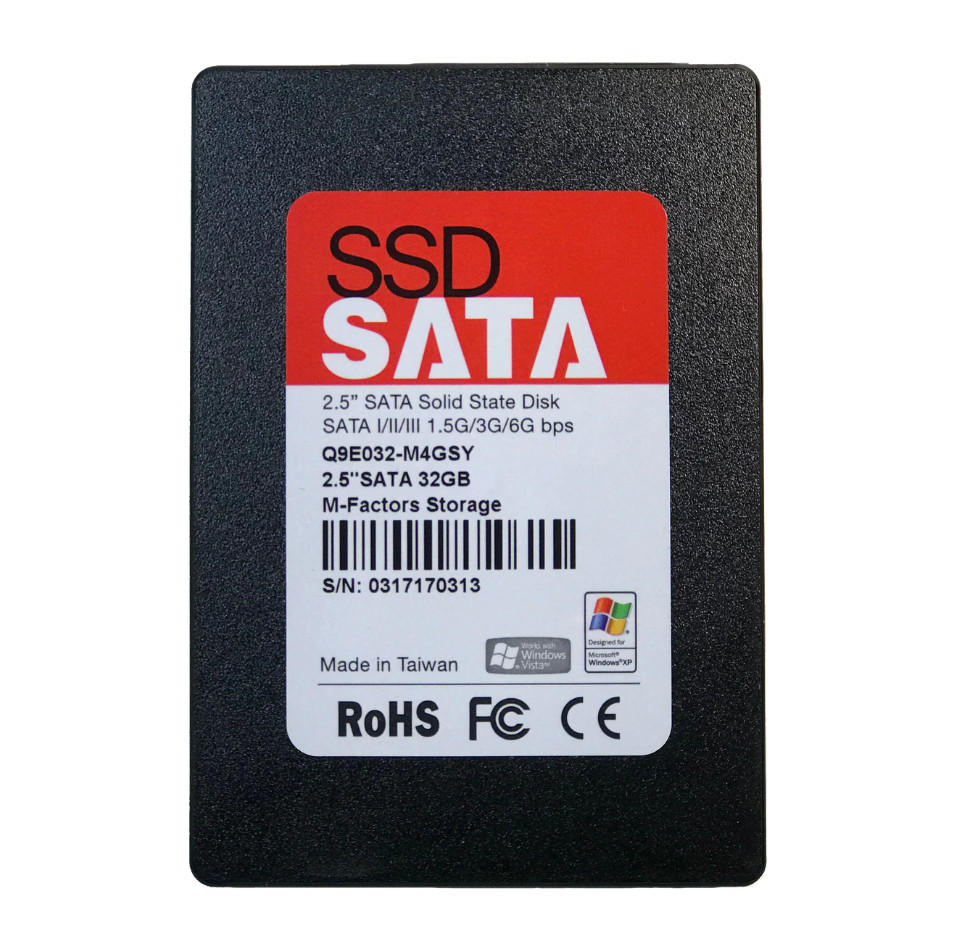

2.5" SATA MLC SSD
2.5" SATA SSD delivers all the advantages of Flash Disk technology with Serial ATA I/II/III interface and is fully compliant with the standard 2.5" form factor. The device is designed based on the standard 7-pin interface for data segment and 15-pin for power segment. The 2.5" SATA runs at a maximum operating frequency of 300MHz with 40MHz external crystal. Based on Toshiba's MLC flash (with external DDRIII 256MB/512MB cache enabled and measured by CrystalDiskMark v3.0), Emperor 900 can reach up 260-550MB/s read as well as 200-350MB/s write high performance. Moreover, the 2.5" SATA SSD enables hot-swapping when removing, replacing, or upgrading flash disks while also providing low power consumption in comparison to traditional hard drives.
Offering improved Read/Write performance, SMART technology, reliability, and low power consumption, 2.5" SATA SSD is an ideal storage for embedded systems.
HIGHLIGHTS
- Easy installation
- Toshiba MLC NAND Flash
- Compliant with SATA Revision 3.0
- Compatible with SATA 1.5Gbps, 3Gbps, 6Gbps interface
- NCQ support up to queue depth=32
- Supports power management
- Supports expanded register for SATA protocol 48 bits addressing mode
- Embedded BIST function for SATA PHY for low cost mass production
- Supports all types of MLC large block: 16K/page NAND Flash
- Supports 2.3 interface and 3.0 interface: 5 channels at maximum
- Contains 4pcs to 16pcs of TSOP Flash
- Corrects up to 72bits error in 1K Byte data
- Supports SMART and TRIM Commands
Item
Specification
Specification
Interface
SATA 6Gbps and 3Gbps, 1.5Gbps interface
ONFI 2.3 and ONFI 3.0 Interface support
Electrical5V (Operating Voltage)
Form Factor
2.5" SATA
Size
Option 1: 100mm*69.85mm*7mm
Option 2: 100mm*69.85mm*9.5mm
weight
~2oz/0.13lbs
Capacity
32GB to 128GB
Performance
Sequential write
200-350 MB/s
Sequential Read
260-550 MB/s
Power Dissipation
Idle
105mW
Active
2560mW
Dependability
TRIM
support
NCQ
support
Firmware Update
support
MTBF
>1,000,000 hours
S.M.A.R.T
support
Bad-Block Management
Advanced bad sector management algorithms
Wear-leveling
Static and dynamic wear-leveling algorithms
ECC
Built in hardware ECC circuit (up to 72bit/1KB)
Environment
Storage temperature
-40~85℃
Operation temperature
Standard
0~70℃
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
Humidity
90% under 40C
RoHS Compliant
Yes
Warranty
2 years
