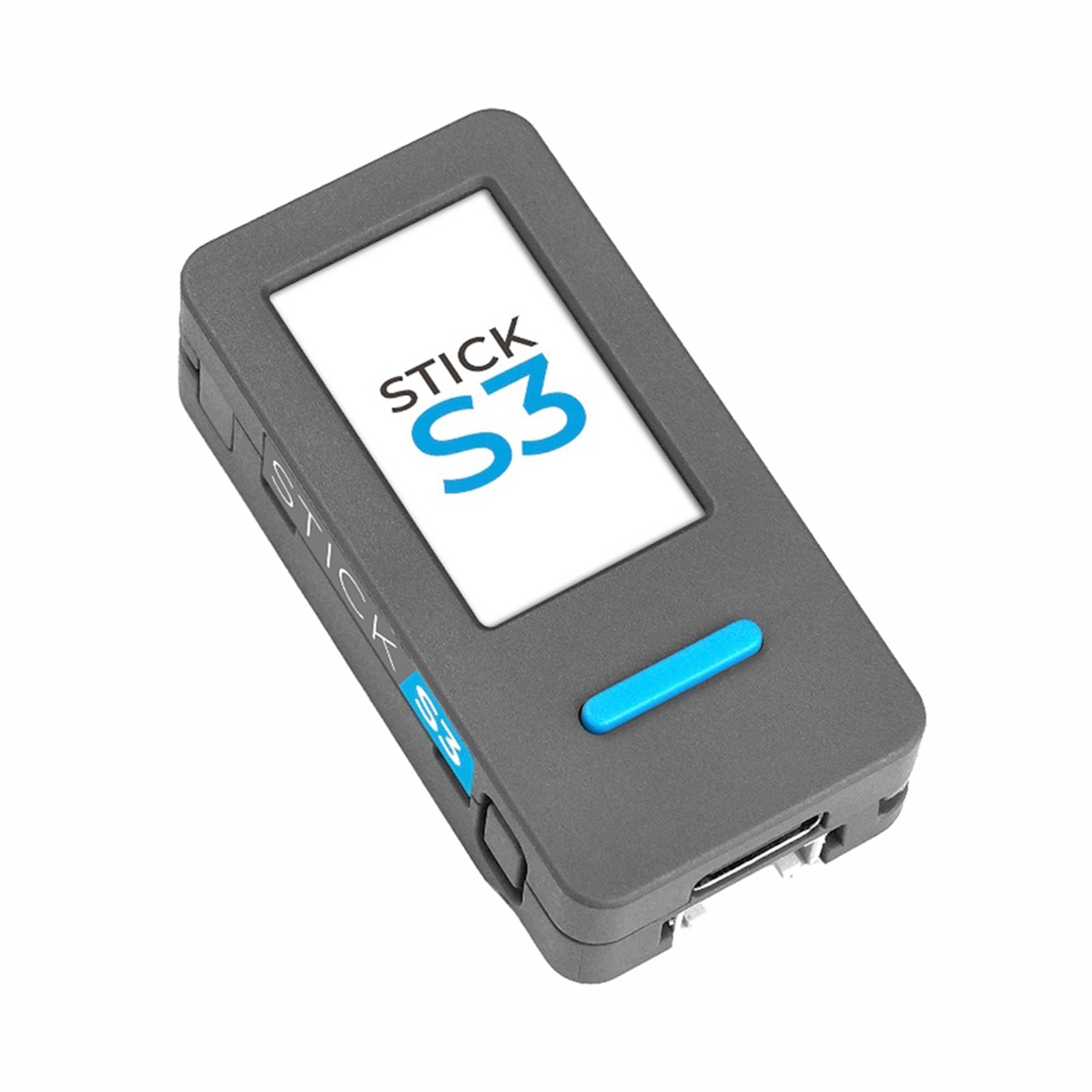

M5StickS3 ESP32S3 LoT Development Kit StickS3 High- Compact IoT3786 The StickS3 is a compact and high-performance programmable controller designed for remote control and IoT applications. It features an ---1-N8R8 main control chip, supports 2.4 GHz Wi-Fi wireless communication, and has 8MB Flash and 8MB PSRAM to meet diverse application development needs, providing excellent performance and scalability.
It features a 1.14" LCD display, a 6- IMU sensor, and programmable buttons. The audio system uses an ES8311 mono codec, combined with a high-sensitivity MEMS microphone and an AW8737 power amplifier, achieving clear sound pickup and high-fidelity audio output to enhance voice recognition and interactive experiences.
It also integrates IR transmitter and receiver tubes, features a magnetic design on the back, and has a built-in 250mAh lithium battery, making it suitable for smart home control, AI voice assistants, IoT project development, and other application scenarios.
Specifications:
SoC: -53-PI00-1-N8R8 @ Dual-core Xtensa Lx7 processor, up to 240MHz
Flash: 8MB
PSRAM: 8MB
Wi-Fi: 2.4 GHz Wi-Fi
Screen Model: ST7789P3
Screen Resolution: 135x240
Input Power: USB Type-C DC 5V
Audio Codec: ES8311: 24-bit resolution, using I2S protocol
Microphone: MEMS microphone, Signal-to-Noise Ratio (SNR): 65 dB
Speaker: AWV8737 amplifier chip + 8Ω@1W 2011 type cavity speaker
Operating Temperature: 0~40℃
Battery Capacity: 250mAh
Interface Load Capacity: No-load: 5V, Maximum:
[email protected]Power Consumption: Power Off:
[email protected]L1 L2 Status:
[email protected]L3A Status:
[email protected]L3A Status:
[email protected]Full Load Status
