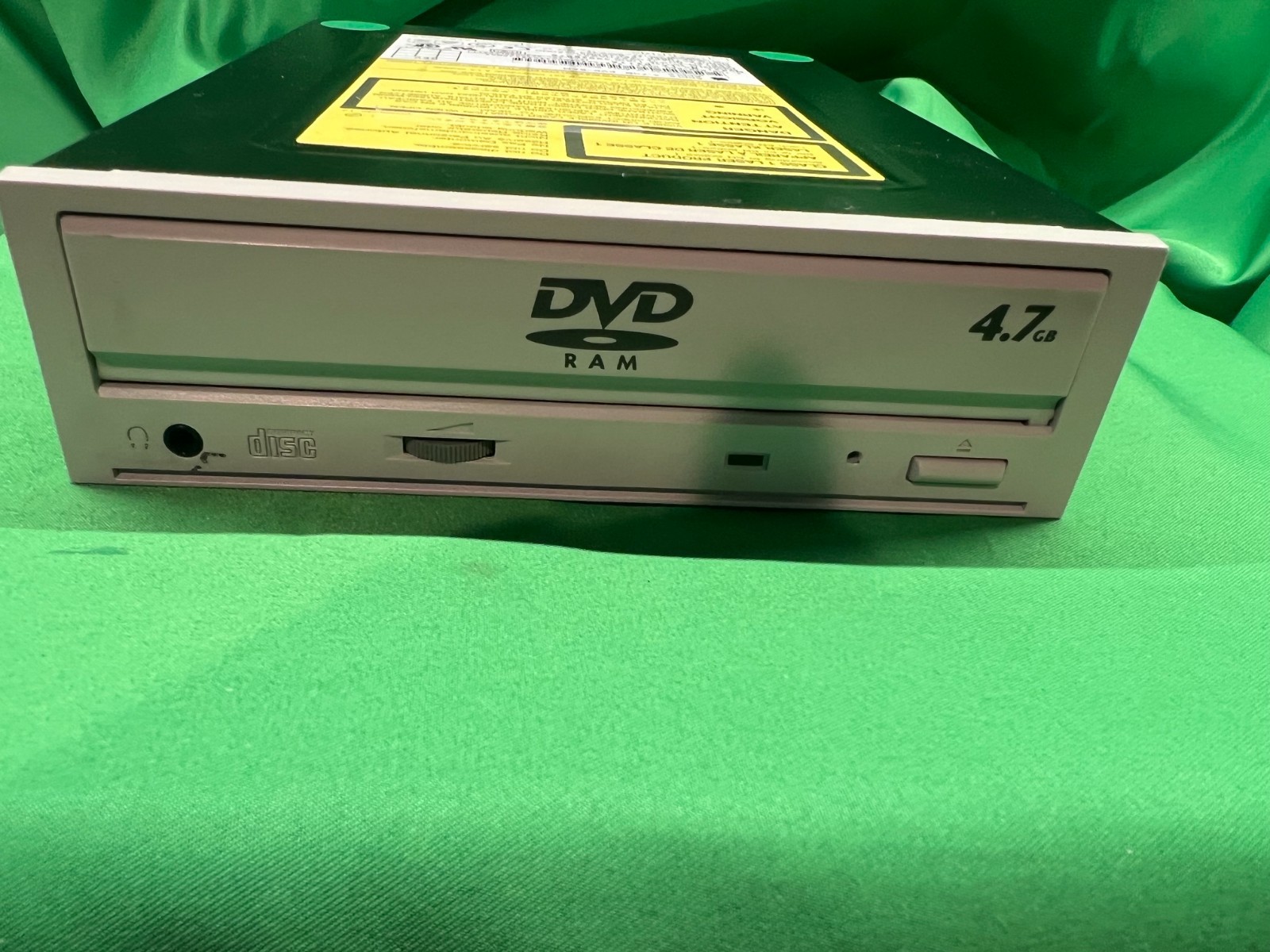

INTERNAL DRIVE

Drive was made for Apple by Panasonic, but has a standard IDE interface, is not restricted to Apple but will work with any PC.

Product Details:

• Model Numbers: LF-D211AInterfaceATA / ATAPI - 4Supporting DiscRead / WriteDVD-RAM [5.2GB / 2.6GB, 9.4GB / 4.7GB discsReadDVD-ROM, DVD-Video*1, DVD-R*2*3, CD-DA*4, CD-ROM, Photo CD, Video CD, CD-Extra,CD-R/RW*3*5Average Seek TimeDVD-RAM75 ms DVD-ROM65 ms CD-ROM65 msTransfer RateDVD-RAMWrite: 1,385KB / s (4.7GB)*6 695KB / s (2.6GB) Read: 2,770KB / s(4.7GB) 1,385KB / s (2.6GB) DVD-ROM3,438 KB / s - 8,310 KB / s (Max X 6) CD-ROM1,520 KB / s -3,600 KB / s (Max X 24)
• Buffer Capacity1 MB
• Audio Output LevelLine Out0.80 V rms typ. (47 k )
• Headphone0.34 V rms typ. (32 k )
• Operating Temperature5º C - 45º C
• Operating Relative Humidity10% [RH] - 80% [RH]
• Power Supply+12 V / +5 V, ± 5%
• Dimensions (W x H x D)146.0 mm x 196.0 mm x 41.3 mm
• Weight(approx.) 1.1 kg

The Panasonic LF-D211 is an internal IDE/ATAPI DVD-RAM drive from the early 2000s. It was designed primarily for reliable data storage, backup, and archival use when DVD-RAM was considered a superior alternative to CD-R and early hard disk backups.

Key Features

• Internal 5.25-inch half-height drive
• IDE/ATAPI interface (not SCSI)
• Reads and writes DVD-RAM media
• Supports cartridge and non-cartridge DVD-RAM discs (depending on media type)
• Backward compatible with DVD-ROM and CD-ROM media
• Designed for data backup, document archiving, and video storage
• Error management and defect replacement built into DVD-RAM format for higher reliability than CD-R/RW media of the era

Technical SpecificationsSpecificationPanasonic LF-D211Drive TypeInternal DVD-RAMInterfaceIDE / ATAPIForm Factor5.25-inch Half HeightBuffer Memory1 MBDVD-RAM Write Speed2× (4.7 GB media)DVD-RAM Read Speed2×DVD-ROM Read SpeedUp to 6×CD-ROM Read SpeedUp to 24×Supported DVD-RAM Capacities2.6 GB, 4.7 GB single-sided; 5.2 GB, 9.4 GB double-sidedDisc Diameter80 mm and 120 mmPower Requirements+5 V and +12 VOperating Temperature5°C to 45°C (41°F to 113°F)Supported Media

Record/Rewrite

• DVD-RAM 2.6 GB
• DVD-RAM 4.7 GB
• DVD-RAM 5.2 GB (double-sided)
• DVD-RAM 9.4 GB (double-sided)

Read Only

• DVD-ROM
• DVD-Video
• DVD-R
• CD-ROM
• CD-R
• CD-RW
• Audio CDs
• Photo CD
• Video CD

Physical Characteristics

• Standard internal 5.25-inch drive bay mounting
• Approximate dimensions:
  • Width: 146 mm (5.75 in)
  • Height: 41.3 mm (1.63 in)
  • Depth: 196 mm (7.72 in)
• Weight: approximately 1 kg (2.2 lb)

Historical Significance

The LF-D211 was part of Panasonic's early DVD-RAM product line and was popular among:

• Business users requiring reliable archival storage
• Medical imaging applications
• Industrial control systems
• Early digital video editing workstations
• Backup and disaster recovery solutions

DVD-RAM media offered much better random-access performance and longevity than CD-RW and early DVD-R drives, making these drives desirable today among retro-computing enthusiasts and users recovering data from legacy DVD-RAM archives.

Compatibility Notes

If you are considering using an LF-D211 today:

• It requires an IDE (PATA) interface.
• Modern Windows and Linux systems can usually read DVD-RAM media if the hardware connection is available.
• A USB-to-IDE adapter generally works for connecting the drive externally.
• DVD-RAM cartridges (Type 1 sealed cartridges) may require removal of the disc from the cartridge unless the drive specifically supports cartridge loading.

If you're using the LF-D211 for a vintage computer, data recovery project, or DVD-RAM archiving, I can also provide jumper settings, rear connector pinout, and media compatibility details.
