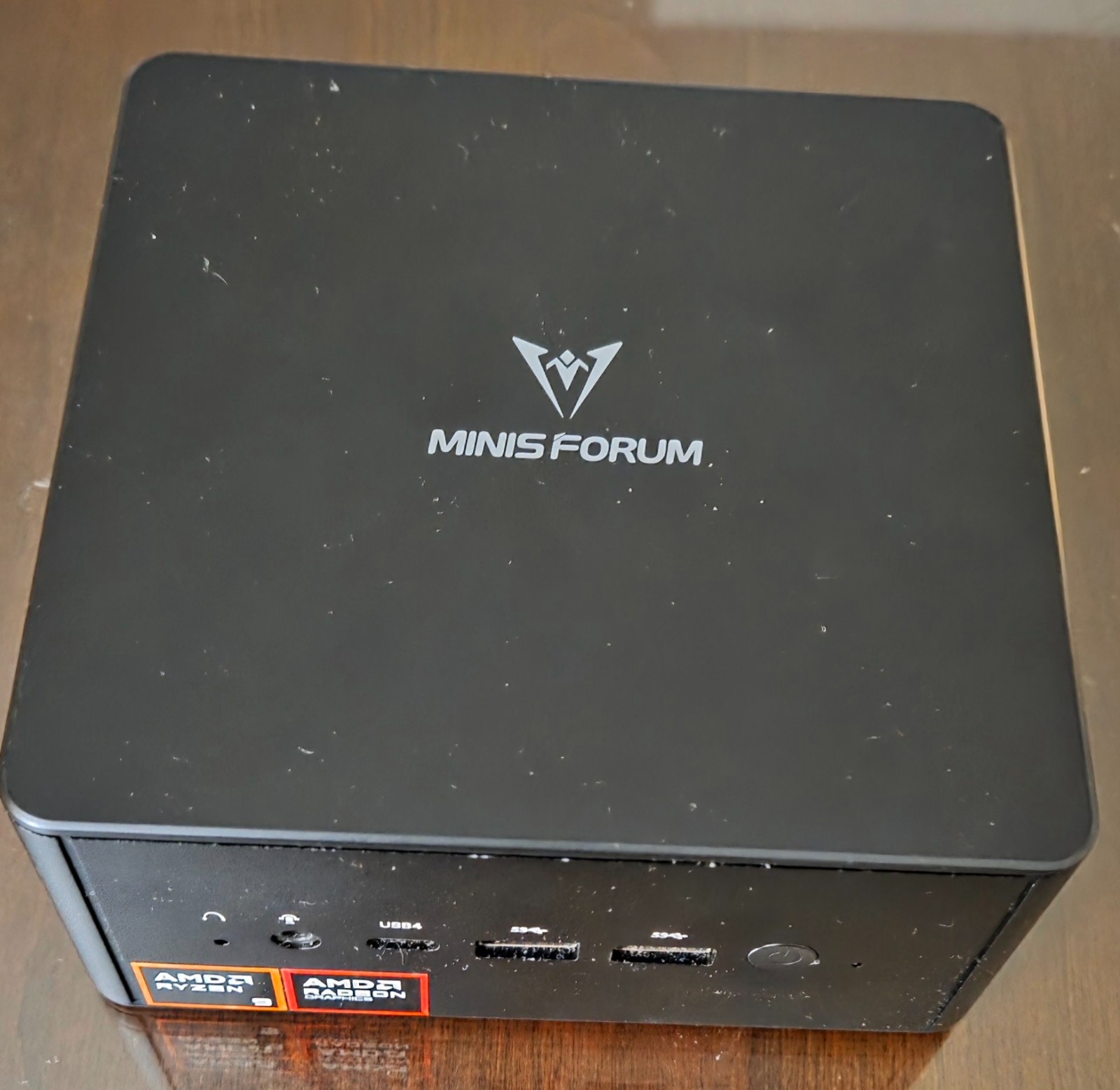

MINISFORUM UM890 Pro Mini PC, AMD Ryzen 9 8945HS (up to 5.2GHz) Mini Computer....16GB DDR5 5600Mhz 500GB PCIe Gen4 NVMe M.2
The MINISFORUM UM890 Pro is a compact mini PC powered by an AMD Ryzen 9 processor and equipped with high-speed OCuLink and dual 2.5G network ports.
Core Specifications
• Processor (CPU): AMD Ryzen 9 8945HS (8 cores, 16 threads, up to 5.2 GHz boost) with Ryzen AI NPU support.• Graphics (GPU): Integrated AMD Radeon 780M (up to 2800 MHz).• Memory (RAM): Dual-channel DDR5 (SODIMM slots ×2), supporting up to 5600 MHz and expandable up to 96 GB• Storage: Two M.2 2280 PCIe 4.0 SSD slots (expandable up to 8 TB).• Cooling: Active cooling system for the processor, DDR5 memory, and SSD drives with a dedicated 6cm fan.• Operating System: Supports Windows 11 Pro (depending on configuration)
Ports and Connectivity
• Video Outputs: 2x USB4 (up to 8K @ 60Hz), 1x HDMI 2.1 (4K @ 120Hz), and 1x DisplayPort 1.4 (supports up to 4 simultaneous displays).• Graphics Expansion: 1x PCIe 4.0 x4 OCuLink port for external GPU docks.• Networking: Dual RJ45 2.5G Ethernet ports, Wi-Fi 6E, and Bluetooth 5.3.• USB Peripherals: 4x USB 3.2 Gen2 Type-A ports, 2x USB4 Type-C ports.• Audio/Other: Audio jack, digital microphone (DMIC), and a Clear CMOS button.
