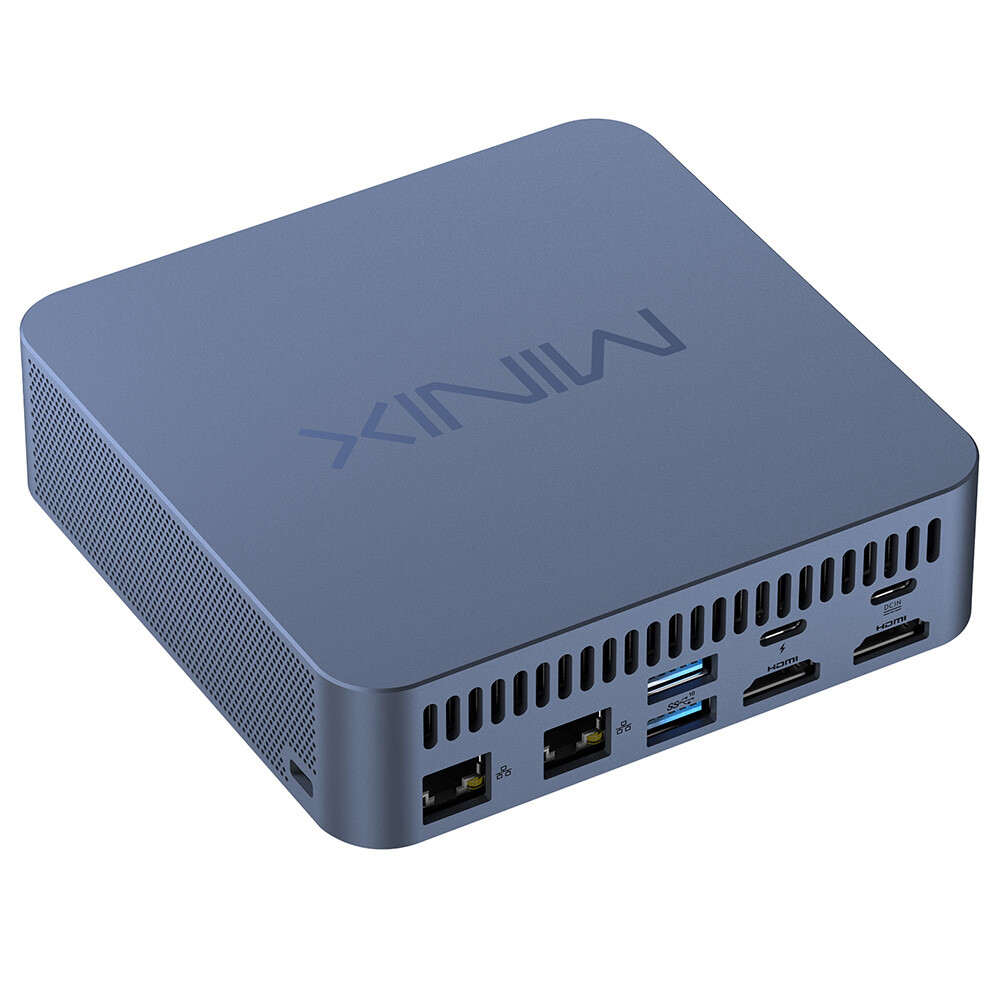

MINIX N512 Mini PC, Intel Core i5-12600H 12 Core Max 4.5GHz, 16GB DDR5 RAM 512GB SSD, 2*HDMI 1.4 (4K@30Hz) + Type-C Thunderbolt (8K@60Hz) Triple Display, WiFi 6 Bluetooth 5.2, 4*USB 3.2, 1*Full-featured Type-C, 1*1G RJ45, 1*2.5G RJ45, 1*Audio Jack
High-Performance Intel® Core™ i5-12600H Processor
Powered by a 12th Gen Intel® Core™ i5-12600H processor with an 18MB cache and turbo boost up to 4.5GHz, the MINIX N512 Mini PC delivers desktop-grade performance in a compact form. Ideal for multitasking, office productivity, and demanding workloads, it ensures smooth operation across various applications.
Dual DDR5 Memory and High-Speed Storage Options
Equipped with two DDR5 SO-DIMM slots supporting up to 96GB of memory, the system ensures rapid data access and efficient multitasking. This version comes pre-installed with a 512GB M.2 PCIe 4.0x4 SSD, delivering blazing-fast read/write speeds for quick boot-up, responsive performance, and smooth file handling. An additional M.2 slot is available for expansion, supporting either PCIe 3.0x4 or SATA SSDs.
Advanced Connectivity and Expandability
The MINIXN512Mini PC supports next-gen connectivity standards, including WiFi 6 (802.11ax), Bluetooth 5.2, and dual LAN ports (1x2.5G + 1G), delivering reliable and high-speed network performance. It also includes multiple USB 3.2 Gen2 ports, USB-C, and Thunderbolt 4 for maximum peripheral compatibility and future-ready expansion.
Multiple Display Outputs with 8K Support
With support for up to four simultaneous displays, including HDMI 2.1 (4K@60Hz), HDMI 1.4 (4K@30Hz), USB-C (4K@60Hz), and Thunderbolt 4 (up to 8K@60Hz), this system is built for high-resolution content creation, multitasking, and immersive entertainment experiences.
Compact Design with Premium Build
Measuring just 119.9mm x 119.9mm x 37.9mm and weighing approximately 460g, the MINIXN512Mini PC fits virtually anywhere. The metal-plastic hybrid enclosure enhances durability while maintaining a sleek, professional look suitable for any workspace.
Windows 11 ProOS and Global Certification
Preloaded with Windows 11 Pro and multilingual support, the MINIX N512 Mini PC is builtfor international users. Certified by CE, FCC, UKCA, and RoHS, it meets international quality, safety, and environmental standards, making it a reliable choice for both personal and professional use.
General
Brand: MINIX
Name: PRD MiniPC
Model: N512-512GB SSD
Color: Blue
Material: Platic+Metal
Hardware
CPU: Intel® Core™ i5-12600Hm (10 Core, 24M Cache, up to 4.9 GHz)
GPU: Intel® Iris® Xe Graphics eligible
DDR: 16GB DDR5-4800MHz
DDR Slot: 2 × DDR5 SO-DIMM(Up to 96GB, Not included)
SSD: 512GB M.2 2280 PCIe 4.0×4 SSD
SSD Expansion: M.2 2280 PCIe 3.0×4 SSD Slot
WIFI & BT
Type: Dual Band Wi-Fi 6 (2.4GHz/5GHz)
I/O Prot
Front Button: 1×Power Button
Front Audio Jack: 1×3.5mm Audio Output Combo Jack
Front USB Type A: 2×USB-A 3.2 Gen2
Front USB Type C: USB Type-C 3.2 Gen2 (4K 60Hz)(Full Functionality)
Rear RJ45: 2×RJ-45 2.5G Ethernet (2.5G+1G)
RearUSB TypeA: 2×USB-A 3.2 Gen2
RearHDMI: 2×HDMI 2.1 TMDS (4K@60Hz)
RearUSB Type_C: 1×TBT4 (8K@60Hz) (DP, PD, Data)
RearDC Jack: 1×Input AC 100~240V, Output PD 20V 5A 100W Max (EU US UK Adapter)
Right Kensington Lock: Yes
Software
Type: OS
System: Windows 11 Pro
Language Supported: Support Multi-language
Complete MachineCertification
Type: FCC CE UKCA ROHS WEEE PSE
WIFI Certification
Model: AX201NGW
Contains FCC ID: PD9AX201NG
Contains IC: 1000M-AX201NG
CMIIT ID: 2028AJ7550(M)
NCC ID: CCAH18LP3520T2
IMDA Standards: DB02941
ICC ID: R-C-INT-AX201NGW
TELEC RF: 003-180232
TELEC TEL: D180131003
Dealer ID: 0018841/09
TA RTTE: Temperature: 0~15°C @5~80%RH
Storage Temperature: -20~70°C
Relative Humidity: 10~95% RH @ 40°C/104°F, Non-Condensing
Weight & Size
Product Dimension: 119.3×119.3×38.9mm
Package Dimension: 175×230×72 mm
Product Weight: 472g
Package Weight: 1250.5g
