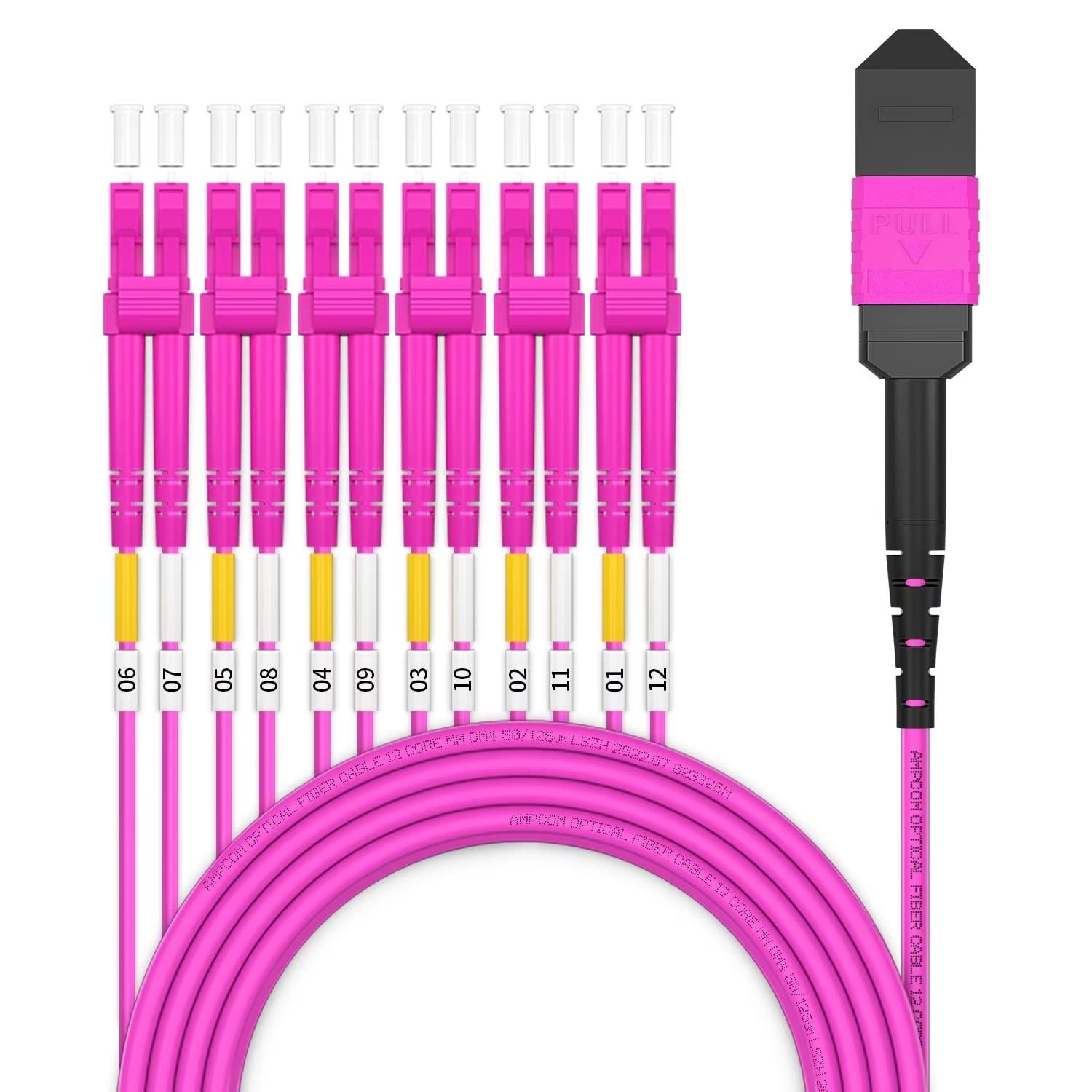

MPO To LC Breakout Cable 50/125m Multimode OM4 12 Fiber Type B Magenta 6 FT

Price: US $42.96

MPO to LC Breakout Cable 50/125μm Multimode OM4(12 Fiber, MPO to LC, Type B, LSZH/Riser, UPC, Magenta) 2m (6ft)🔍 Product Overview

10/40Gb OM4 50/125 Multimode MPO Female to LC UPC Breakout Cable ( 12 Fibers, Type B, LSZH, UPC, Aqua)

Connector A: MPO UPC

Connector B: LC

Glass Fiber: Corning ClearCurve Fiber

Fiber Type: 50/125µm

Insertion Loss: ≤0.3dB

Return Loss:≥30dB

Color: Aqua

Wavelength: 850/1300nm

10G Ethernet Distance: 300m at 850nm

40G Ethernet Distance: 100m at 850nm

Glass Fiber: Corning ClearCurve Fiber

Aramid Yarn: DuPont Kevlar

Cable OD: 3MM

Jacket: LSZH

Bend Radius (Fiber core): 10mm Min.

Tensile Strength: 80N

Operating Temperature: -10 to +70°C (14 to 158℉)

Storage Temperature: -40 to +85°C (-40 to 185℉)

Features

Factory-terminated provide consistent quality, high performance and reduce installation time

100% tested for low insertion loss performance and high back reflection

Fiber Count: 12 Fiber breakout cable

Type B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics

Optimized performance – available in elite MTP and discrete premium connector upon request

Standards Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T1272.5

LSZH Jacket by Default

⭐ Key Features
