Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:

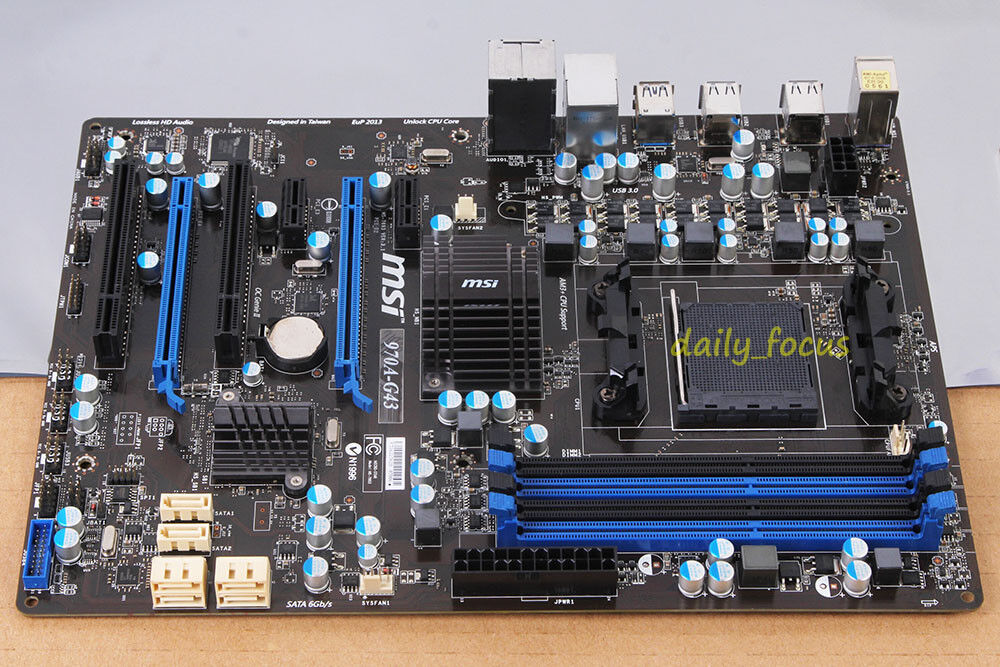

1 x motherboard
2 x SATA II cables
1 x I/O shield
Parts Specification:
CPU
• AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Hyper Transport Bus
• HyperTransport 3.0 supporting speed up to 4.8GT/s
Chipset
• AMD® 970 and SB950 Chipset
Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866/2133* (OC)DRAM, 32GB Max
• Supoorts Dual-Channelmode
Slots
•2 xPCI Express 2.0 x16 slots
- PCI_E2 supports up to PCIe x16 speed
- PCI_E4 supports up to PCIe x4 speed
•2 PCI Express 2.0 x1 slots
•2 PCI slots, support 3.3V/ 5V PCI bus Interface.
On-Board SATA
•6 xSATA6Gb/s ports by AMD® SB950
- Supports storage and data transfers at up to 6Gb/s
RAID Function
A III 1~6 support RAID 0/1/5/10 mode by AMD® SB950
USB 3.0
• Chipset integrated HD audio codecby Realtek®ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
Audio
• Chipset integrated HD audio codecby Realtek®ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
• Realtek PCI-E GbLAN controller 8111E
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
Internal I/O Connectors
- 1 x ATX 24-pin power connector
- 1 x ATX 8-pin 12V CPU power connector
- CPU x 1 / System x2 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
-3 x USB 2.0 connectors
- 1 x USB 3.0 connector
-1 x Serial connector
- 1 x Clear CMOSjumper
-6 x SATA 6Gb/s connectors
- 1 x TPM module connector
Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse port
-6 x USB 2.0 ports
- 2 x USB 3.0 ports (blue)
- 1 x LAN jack
- 1 x 6 in 1 audio jack
Dimension
• ATX Form Factor 30.5cm(L) x 22.5cm(W)
Mounting
•6 mounting holes.
Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
