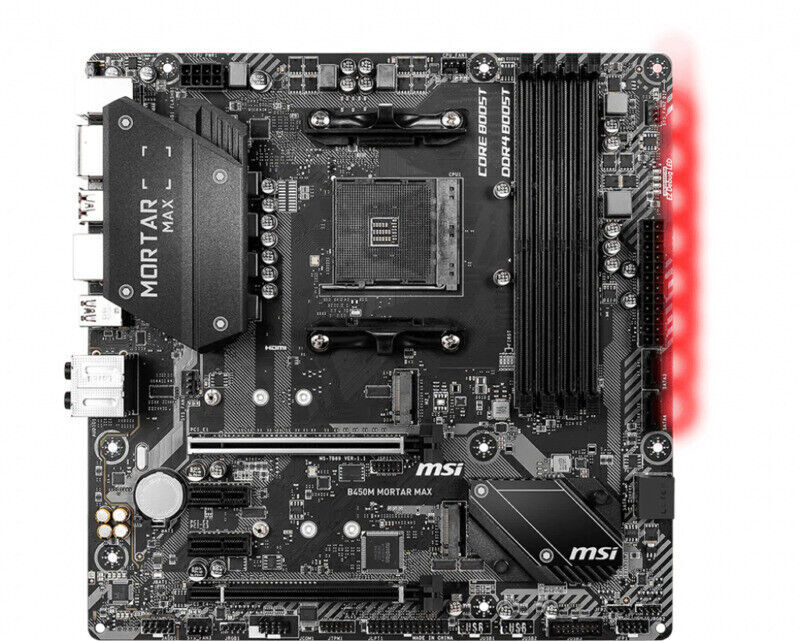

MSI B450M Mortar Max Motherboard AMD B450 Socket AM4 M- ATX 4xDDR4 1xM.2 HDMI

CPU

1st, 2nd, 3rd Gen AMD Ryzen™/1st, 2nd Gen Ryzen™ with Radeon™ Graphics/Athlon™ Desktop Processors with Radeon™ Graphics

Chipset

AMD® AMD® B450

RAM

4 x DDR4 slots, up to 128GB

Supports 1866/ 2133/ 2400/ 2667Mhz (via JEDEC)

AMD Ryzen Gen3 (R5/R7/R9)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (via A-XMP OC mode)

AMD other CPUs

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (via A-XMP OC mode)

Support dual channel

Support non-ECC UDIMM memory

Support ECC UDIMM memory (non-ECC mode)

Slot

1 x PCIe 3.0 x16 (PCI_E1)

Supports x16 speeds when using 1st, 2nd, and 3rd Gen AMD Ryzen™ processors

Supports x8 speeds when using Ryzen™ processors with 1st and 2nd generation built-in Radeon™ graphics

Supports x4 speeds when using Athlon™ processors with built-in Radeon™ graphics

1 x PCIe 2.0 x16 (PCI_E4, support x4 mode)11

• 2 x PCIe 2.0 x12

PCI_E4 will not work when M.2 SSD is installed in M2_2 PCI_E2 will not work when expansion card is installed in PCI_E3

Integrated graphics interface

1 x DisplayPort, supports 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,21,2

1 x HDMI™ 1.4, supports 4096x2160 @30Hz, 2560x1600 @60Hz1,21,2

Requires Ryzen™/Athlon™ desktop processor with 1st and 2nd generation built-in Radeon™ Graphics/ Athlon™ Desktop Processor with built-in Radeon™ Graphics Maximum shared video memory is 2048 MB

Multi-channel graphics card

Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® AMD® B450 Chipset

4 x SATA 6Gb/s11

1 x M.2 slots (M2_2, Key M)11

Support PCIe 2.0 x4 2242/ 2260 / 2280 specifications

AMD® CPUs

1x M.2 slot (M2_1, Key M)11

Supports PCIe 3.0 x4 (using 1st, 2nd, 3rd Gen AMD Ryzen™/1st, 2nd Gen Ryzen™ processors with built-in Radeon™ graphics) or PCIe 3.0 x2 (using Athlon™ processing with built-in Radeon™ graphics) SATA 6Gb/s 2242/ 2260/2280 Specifications

PCI_E4 will not work when M.2 SSD is installed in M2_2

RAID

AMD® B450 Chipset

Support RAID 0, RAID 1 and RAID 10 (SATA)

Support RAID 0, RAID 1 (M.2 NVMe)

USB

AMD® B450 Chipset

1 x USB 3.2 Gen2 (10Gbps) Type-C on the back

1 x USB 3.2 Gen2 (10Gbps) Type-A on the back

2 x USB 3.2 Gen1 via internal USB 3.2 Gen1 connector

6 x USB 2.0 (2 Type-A on back, 4 via internal USB 2.0 connectors)

AMD® processors

4 x USB 3.2 Gen1 Type-A on the back

Audio

Realtek® ALC892/ALC897 Codec

7.1 channel HD audio

Support S/PDIF output

The internet

1 x Realtek® RTL8111H-CG Gigabit LAN

Internal interface

1 x 24-pin ATX power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s

1 x USB 3.1 Gen1 port (supports additional 2 USB 3.1 Gen1)

2 x USB 2.0 ports (supports additional 4 x 4 USB 2.0)

1 x 4-pin CPU fan header

3 x 4-pin system fan headers

2 x 5050 12V RGB lighting ports

1 x TPM module interface

1 x Front Audio Interface

2 x System Panel Connectors

1 x Chassis Intrusion Connector

1 x Clear CMOS Jumper

1 x Serial Interface

1 x Parallel Interface

Rear interface

BIOS write back key

PS/2 interface

DP

Network Interface

USB 3.2 Gen2 Type A

audio port

USB 2.0

HDMI

USB 3.2 Gen1

USB 3.2 Gen2 Type C

S/PDIF output

Form Factor

m-ATX ; 24.4 cm x 24.4 cm

Screw hole

8 holes

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
