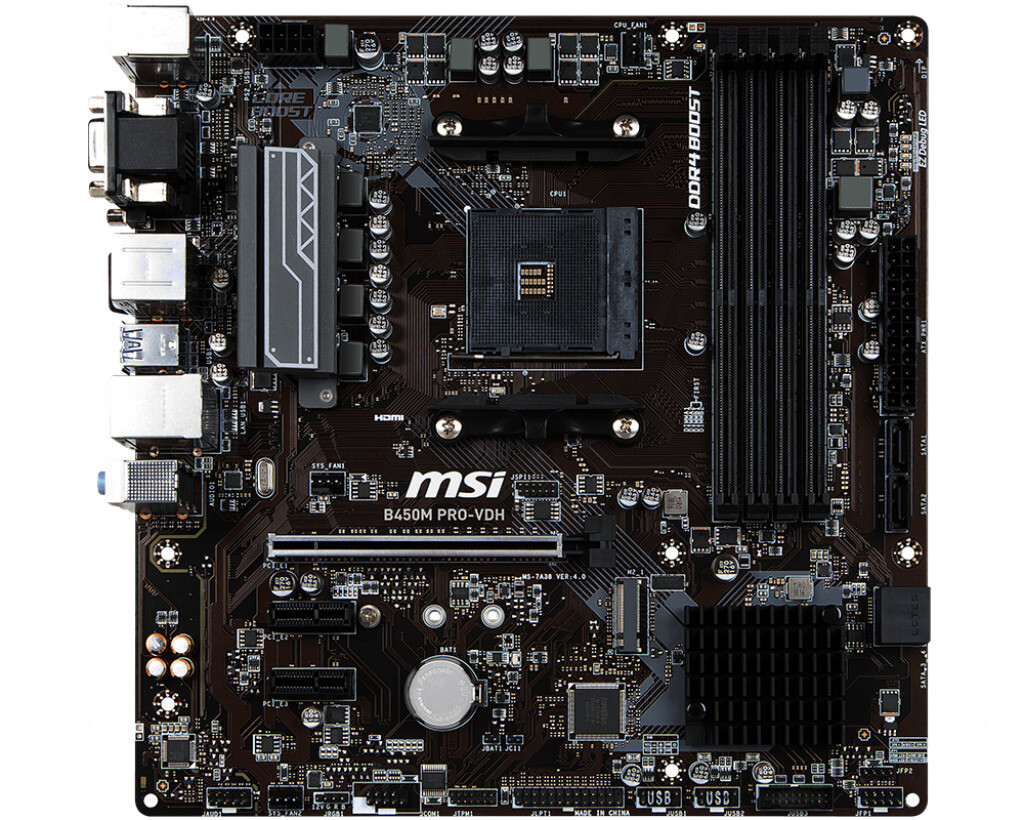

MSI B450M PRO-VDH Motherboard AMD B450 4xDDR4 Socket AM4 M-ATX HDMI 1xM.2 DVI-D

PROCESSOR

Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket B450 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports ECC UDIMM memory (non-ECC mode)

Support non-ECC UDIMM memory

SLOTS

1 x PCIe 3.0 x16 slot

Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors

Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors

Supports x4 speed with AMD® Athlon™ with Radeon™ Vega

Graphics Processors

2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz123

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz123

1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz1234

Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorDue to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could support up to 2 display with HDMI/ VGA output.Maximum shared memory of 2048 MBGraphics specifications may vary depending on the CPU B450 Chipset

4 x SATA 6Gb/s ports

Supports RAID 0, RAID1 and RAID 10

1 x M.2 slot (Key M)

Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280 storage B450 Chipset

2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector

8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® Processors

4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

1 x Front panel audio connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x Parallel port connector

1 x LED strip connector

1 x Clear CMOS jumper

BACK PANEL PORTS

PS/2

VGA

USB 2.0

USB 3.1 Gen1

LAN

HD Audio Connectors

USB 2.0

DVI-D

HDMI

USB 3.1 ; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
