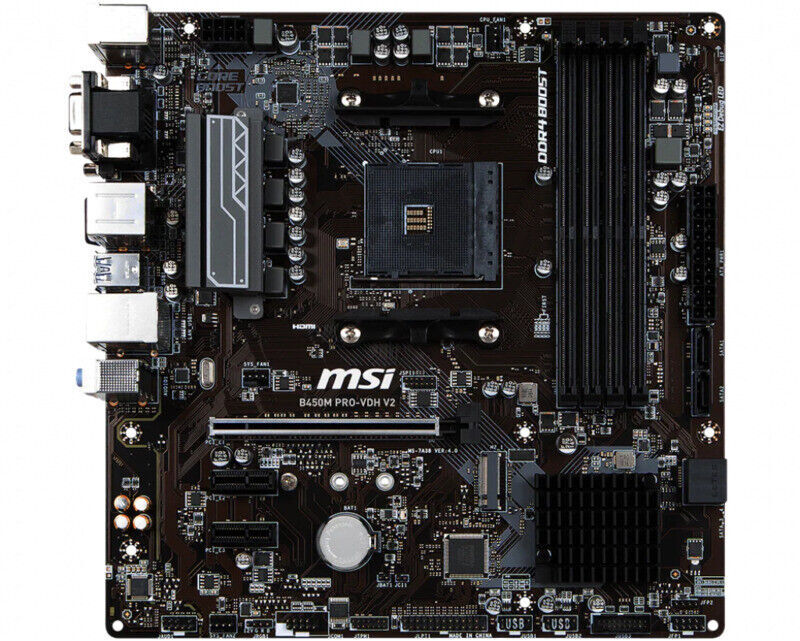

MSI B450M PRO-VDH V2 Motherboard AMD B450 Socket AM4 4xDDR4 M-ATX M.2 VGA HDMI

CPU

AMD® 1st and 2nd Generation Ryzen™ Processors with AM4 Pin Support / Ryzen™ Processors with Radeon™ Vega Graphics / Athlon™ Processors with Radeon™ Vega Graphics

Chipset

AMD® B450 Chipset

RAM

4 DDR4 memory slots, supporting a total capacity of up to 64GB1

Supports 1866/ 2133/ 2400/ 2667Mhz (via JEDEC)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (via A-XMP OC MODE)

Dual-channel memory architecture

Supports ECC UDIMM memory (non-ECC mode)

Support for non-ECC UDIMM memory

Expansion slot

1 PCIe 3.0 x16 slot

AMD® Ryzen™ 1st and 2nd Gen processors support x16 speeds

AMD® Ryzen™ Processors with Radeon™ Vega Graphics Support x8 Speeds

AMD® Athlon™ Processor with Radeon™ Vega Graphics supports x4 speed

2 PCIe 2.0 x1 slots

Onboard graphics card

1 VGA port, support the highest resolution 2048x1280@60Hz, 1920x1200@60Hz1,2<

1 DVI-D interface, support the highest resolution 1920x1200@60Hz1,2<

1x HDMI™ 1.4 port, supports up to 4096x2160 @30Hz, 2560x1600 @60Hz1,2<

Maximum shared memory of 2048 MB is only supported when using AMD® Ryzen™ Processors with Radeon™ Vega Graphics / AMD® Athlon™ Processors with Radeon™ Vega Graphics

Storage

AMD® B450 Chipset

4 SATA 6Gb/s ports

Supports RAID 0, RAID1 and RAID 10

1 M.2 slot (Key M)

Supports PCIe 3.0 x4 (AMD® 1st and 2nd Generation Ryzen Processors / Ryzen™ Processors with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ Processors with Radeon™ Vega Graphics) and SATA 6Gb/s

Supports 2242/ 2260/2280 storage devices

USB

AMD® B450 Chipset

2 USB 3.1 Gen1 (SuperSpeed USB) ports provided via onboard USB 3.1 Gen1 ports

8 USB 2.0 (High-speed USB) ports (4 Type-A ports on back panel, 4 ports via onboard USB 2.0 ports)

AMD® processors

4 USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on back panel

Sound effect

Realtek® ALC892 decoder chip

7.1-channel high-quality sound

Built-in interface

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 SATA 6Gb/s ports

2 USB 2.0 ports (additional 4 USB 2.0 ports can be supported)

1 USB 3.1 Gen1 port (can support 2 additional USB 3.1 Gen1 ports)

1 x 4-pin CPU fan connector

2 x 4-pin system fan headers

1 panel audio interface

2 system panel connectors

1 TPM module interface

1 chassis opening port

1 serial interface

1 parallel interface

1 RGB LED strip connector

1 clear CMOS function jumper

Backplane interface

PS/2

VGA Port

USB 2.0 Port

USB 3.1 Gen1

LAN Port

HD Audio Connectors

DVI-D Port

HDMI Port

Form Factor

m-ATX ; 9.6 x 9.6 inches (24.4 x 24.4 cm)

Mounting hole

9 mounting holes

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.


• Free shipping :Usually To all countries will be shipped via AIR MAIL ,not expedited shipping.
• All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails.
• Tax depends on each country custom.The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility
• We can not mark item as "gift", since your country customs and international customs regulations prohibit such behavior,thank you for your understanding.

• if you don't receive items over 30 business days,Read the shipping details first to determine the expected delivery time , if your items has notarrived within that time (weekends and holidays were not included)
  please make sure to contact us before leaving any neutral or negative responses.We'll try our best to help you solve the problem.

• If you want to get it fast(3-6 days ship),Please choose expedited shipping,It must add 20USD-40USD shipping fee (according to your country),Because it 's not free shipping.

Country

Shipper

Estimate time(free shipping)

7-15days

15-20 days

20-25 days

25-30 days

30-35 days

35-40 days

>40 days

USA

Economy style="text-align: center">

Economy style="text-indent: style="text-align: us

• Before and after receiving, if you have any questions about the order or item, please contact us via Message（Or find your order and click contact seller）.
  When we receive the e-mail, we will reply in time. Please make sure via the message we can contact you.


• Return policy:

  Customer should make initial contact in 7 days from receiving the order. Products must be returned in original condition.. When you shipped back, please give us tracking number. We get the return package,We'll refund your money, as soon as got the returned.

• Replace policy:

  Replace can be accepted in 90 days after you signed for the package. Please send back the item in original package, need not return any accessories. When you shipped back, please give us the tracking number. We'll resend another the item to you, as soon as we got the returned package.

• Please contact us before returning items and we will provide the shipping address. DO NOT send without communication
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Any products returned without our serial number and QC badge will be rejected as not our parts do not return Please,Any packages that are send without our knowledge will be refused and no replacements will be issued.
• All items are sold with 60 days warranty unless otherwise stated in the sale.

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.

• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Your satisfaction is our pursuit. Welcome to our shop and thank you for buying our products.

Enjoy your shopping！
